Collection

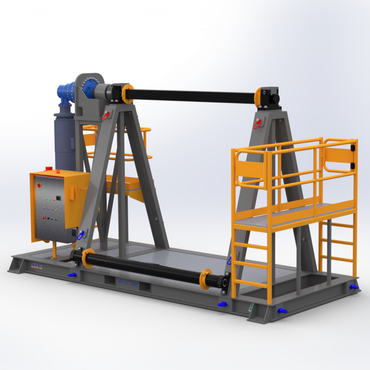

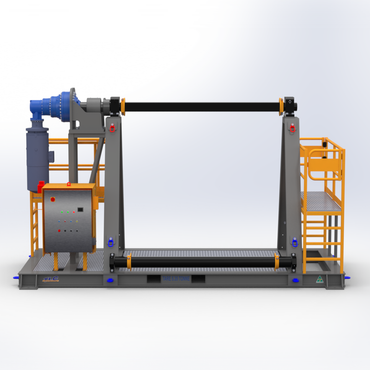

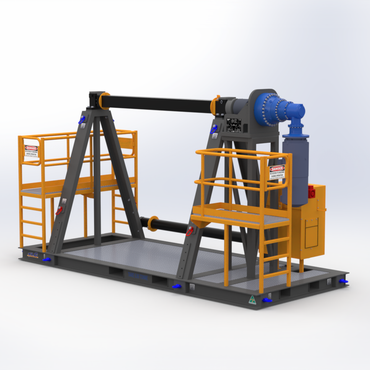

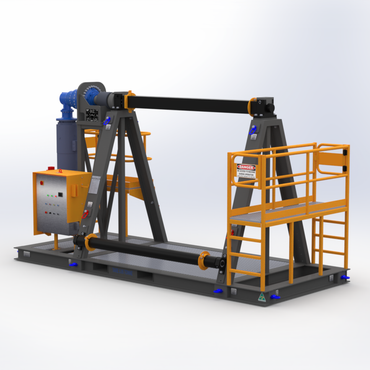

Belt Winder
Capacity - 30T
Tare - 5.35T
Max Belt Width - 2400mm
TLC 02408
Request SWI

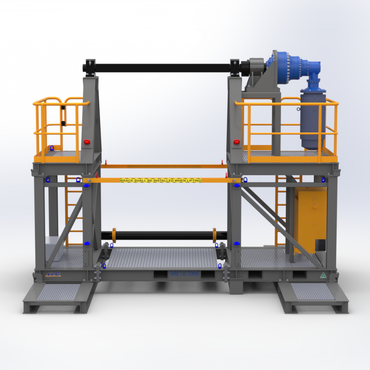

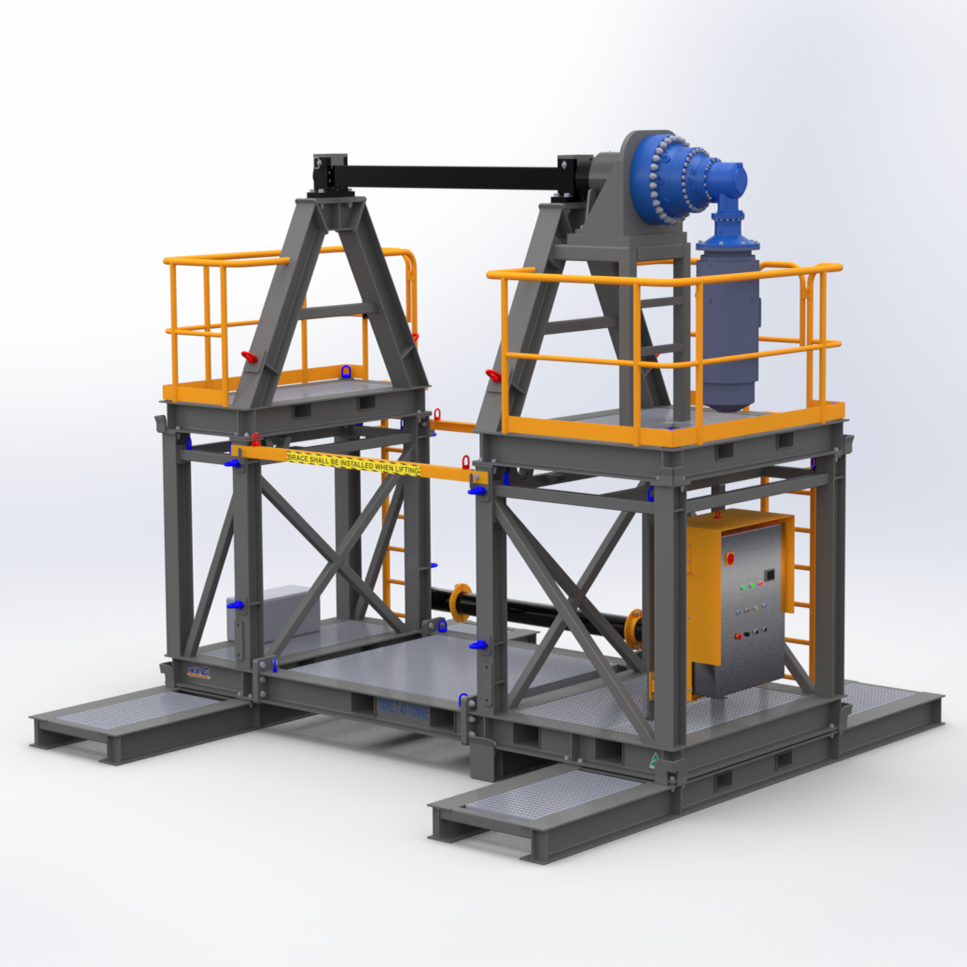

Capacity - 30T
Tare - 7.45T
TLC 01157
Request SWI

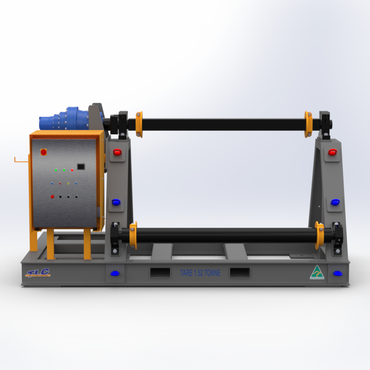

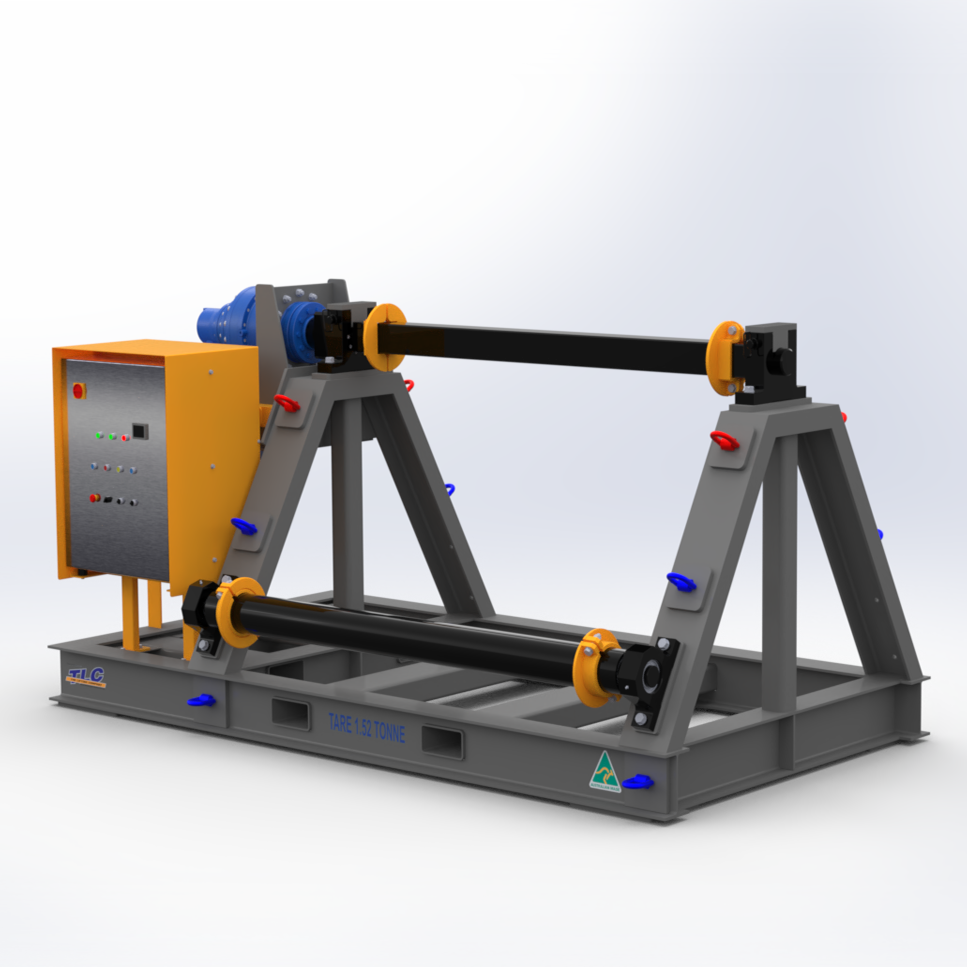

Capacity - 9T
Tare - 1.52T
TLC 01153

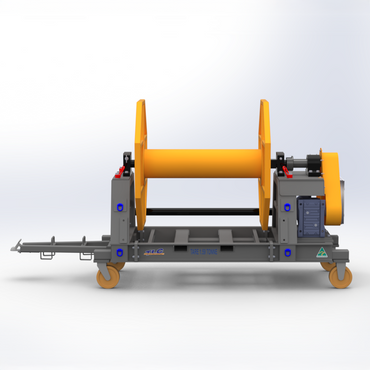

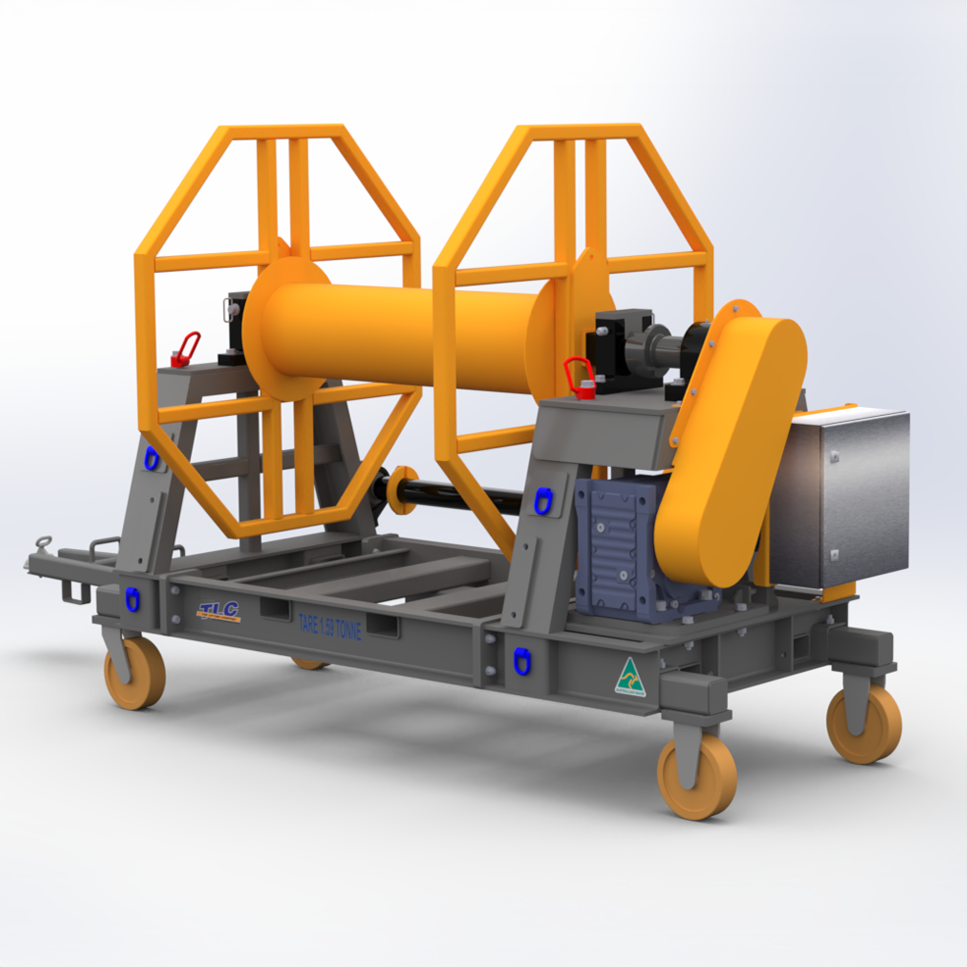

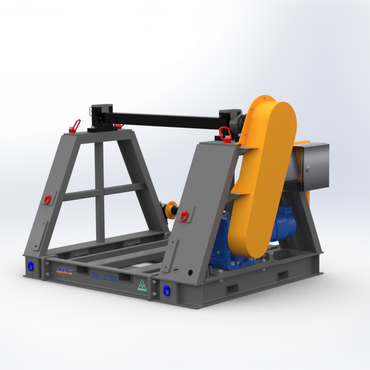

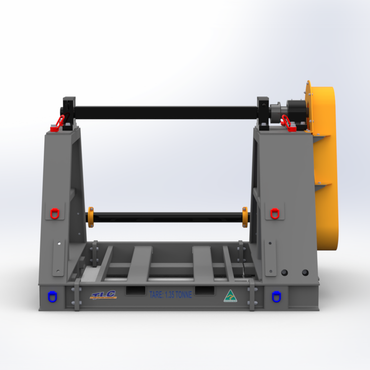

Modular Belt Winder
Capacity - 4T
Tare - 1.59T
TLC 02295
Request SWI
SPECIFICATIONS:
2 x 100mm Square Shafts
2 x Deflection rollers, max 30⁰ Incline
2 x Sub frames
Quick Shaft Coupling with Replaceable High Load Bearings
Maximum Reel Diameter 2000 mm
B...
Request SWI
SPECIFICATIONS:
100mm Square Shafts
Deflection rollers, max 30⁰ Incline
Quick Shaft Coupling with Replaceable High Load Bearings
Maximum Reel Diameter 2000 mm
Belt Widths 1200 mm
Rig...
Request SWI

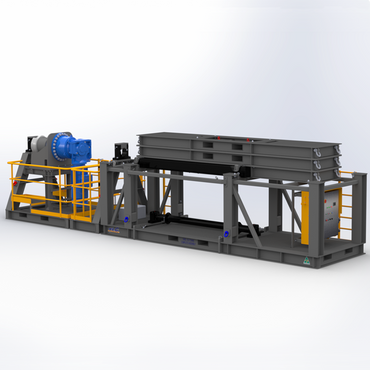

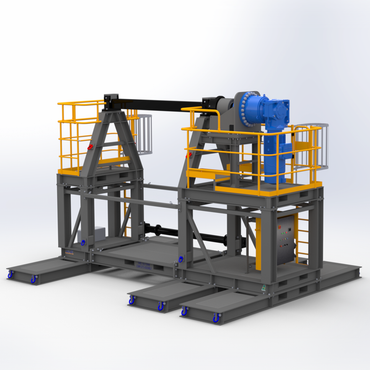

Capacity - 100T
Tare - 18.5T
Min Belt Width - 2200mm
Max Belt Width - 2400mm
Max Line Pull - 10T
Max Line Speed - 53m/min
Input RPM - 2.59 rpm
Gearbox Ratio - 563:1
TLC 01578

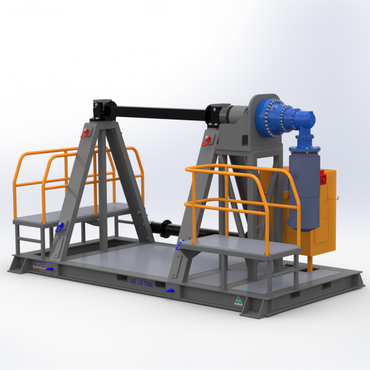

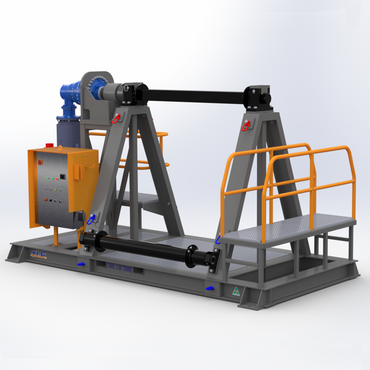

Belt Winder
Capacity - 30T
Tare - 4T
Min Belt Width - 1100 mm
Gearbox ratio - 366:1
Max speed - 4.02rpm
Max Belt Width - 1600mm
Max Line Pull - 30T
Max Entry Angle - 30° From Horizontal
TLC 01809

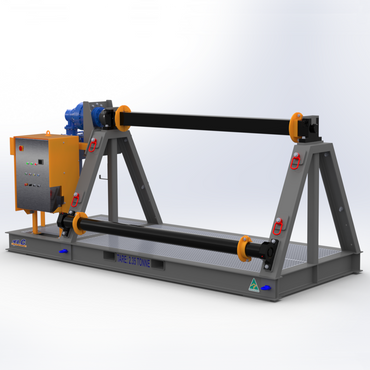

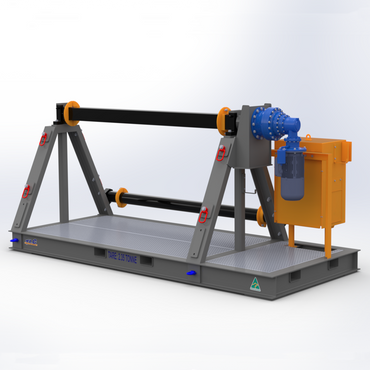

Belt Winder
Capacity - 12T
Tare - 2.35T
Min Belt Width - 1800mm
Max Belt Width - 2400mm
Max speed - 5.92rpm

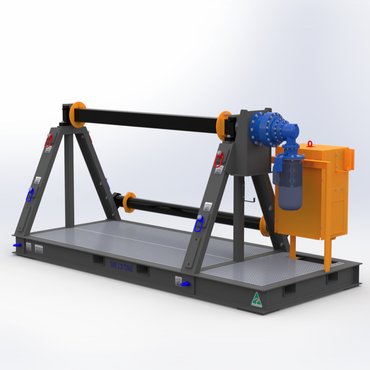

TLC 02012

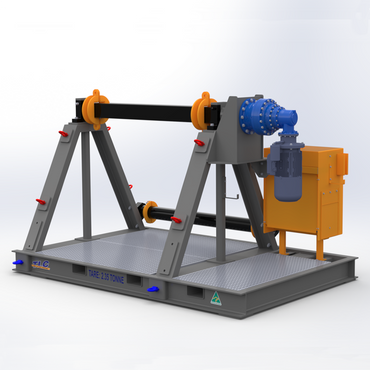

Belt Winder
Capacity - 9T
Tare - 2.35T
Min Belt Width - 1200mm
Max Belt Width - 1400mm
Max speed - 5.92rpm

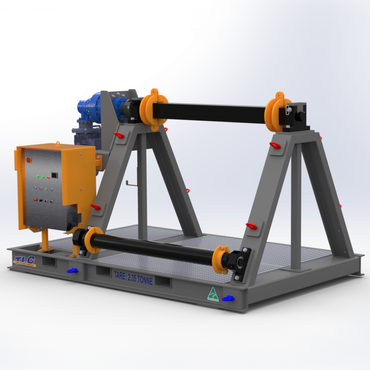

TLC 01533

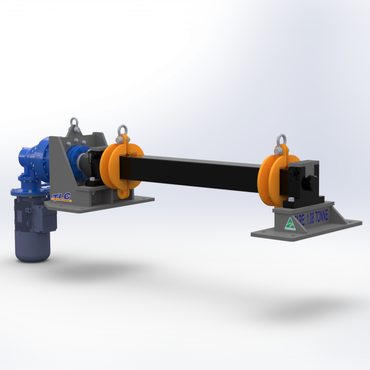

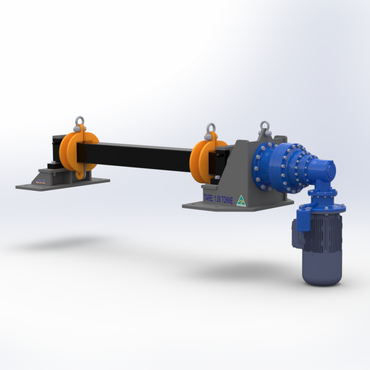

Belt Winder
Capacity - 9T
Tare - 1.08T
Max Belt Width - 1200mm
Max speed - 5.92rpm
TLC 01535
Belt Winder
Capacity - 12T
Tare - 2.35T
Min Belt Width - 1800mm
Max Belt Width - 2200mm
Max Line Pull At Max Diameter - 1400kg
Max Line Pull At Min Diameter - 10000kg
Max Line Speed - 15 m/min
Ma...

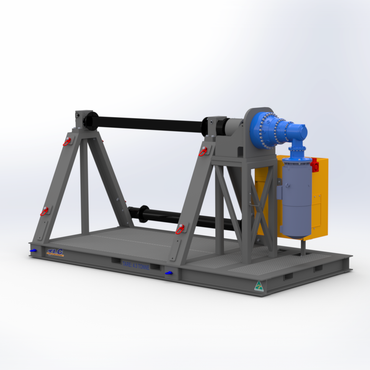

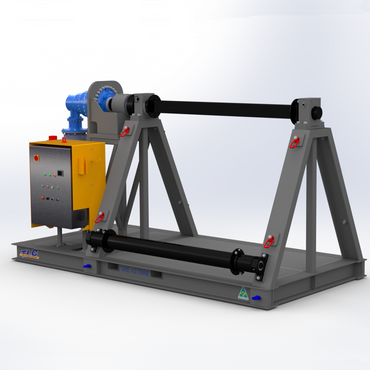

Belt Winder
Capacity - 25T
Tare - 4.3T
Min Belt Width - 1500mm
Max Belt Width - 2000mm
Max Line Pull At Max Diameter - 3740kg
Max Line Pull At Min Diameter - 26200kg
Max Line Speed - 44 m/min
Inpu...

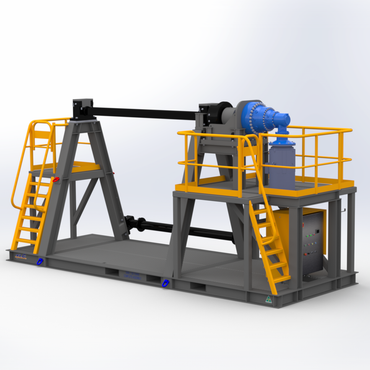

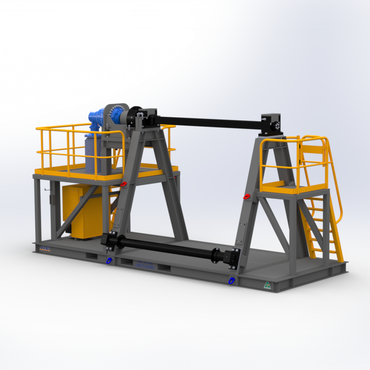

SPECIFICATIONS: • Dual Rating with (60T) 235mm and (30T) 150mm Square Shafts • Quick Shaft Coupling with Replaceable High Load Bearings • Maximum Reel Diameter 5000 mm • Maximum Belt Width 2400 mm ...

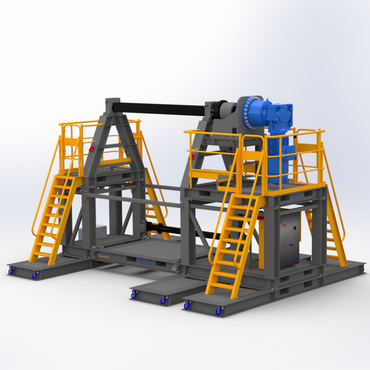

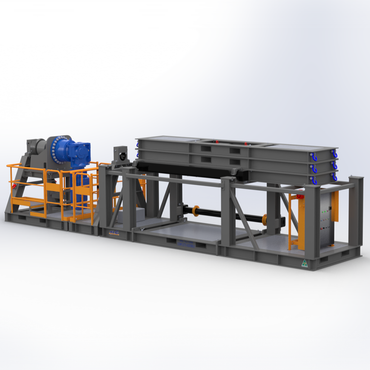

Belt Winder
Capacity - 100T
Tare - 19.2T
Min Belt Width - 1800 mm
Max Belt Width - 2400 mm
Max Line Pull - 10T
Max Line Speed - 53 m/min
Input RPM - 2.59 rpm
Gearbox Ratio - 563:1
TLC 01782
