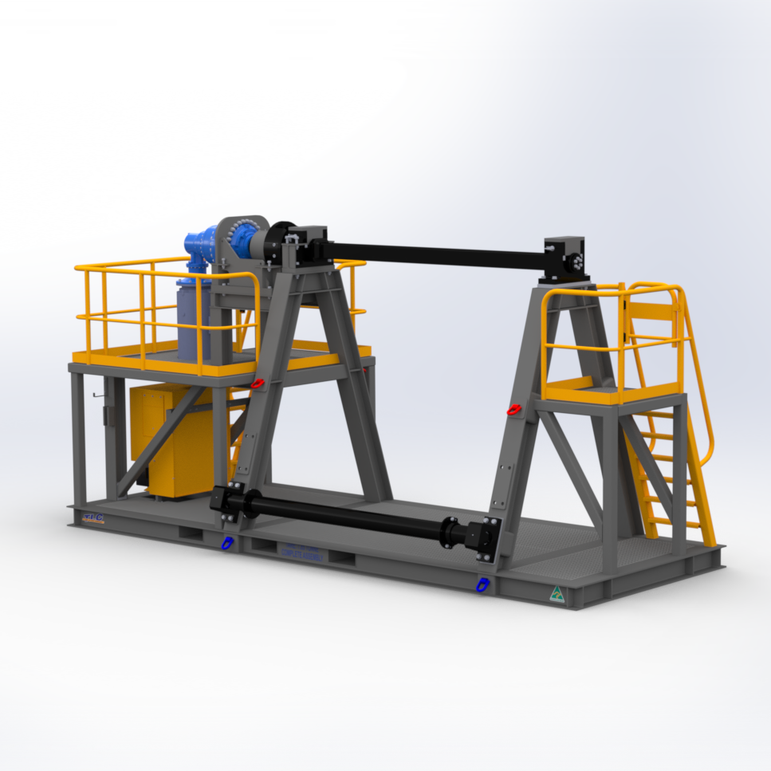

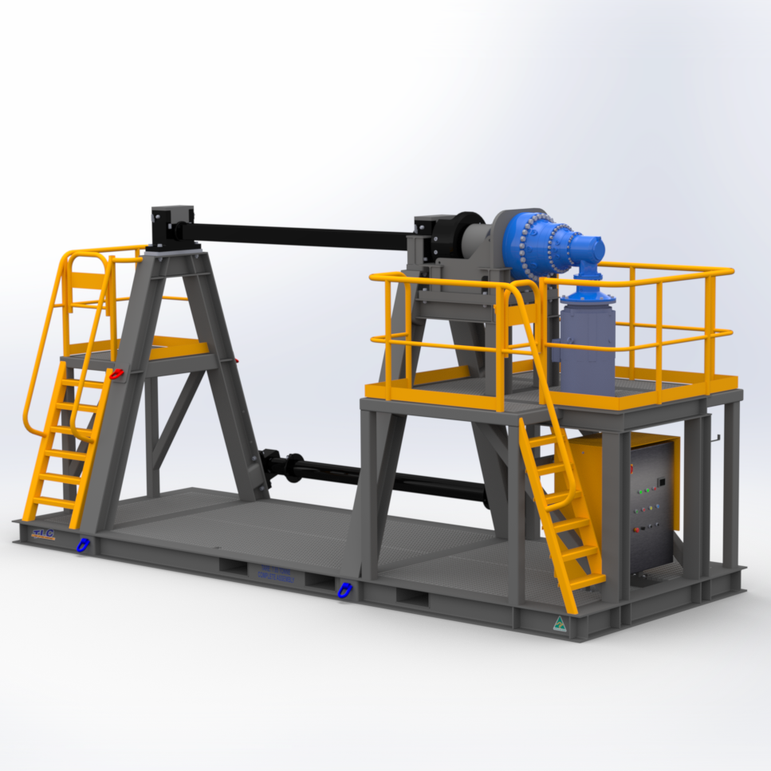

60T / 30T Electric Belt Winder
SPECIFICATIONS:
• Dual Rating with (60T) 235mm and (30T) 150mm Square Shafts
• Quick Shaft Coupling with Replaceable High Load Bearings
• Maximum Reel Diameter 5000 mm
• Maximum Belt Width 2400 mm
• Deflection Roller Designed for Maximum 30⁰ Incline
• Right Angle Bevel / Planetary Drive
• 45kW Electric Motor with IP66 Fail Safe Disc Brake
• Automatic Line Pull vrs Reel Diameter – Maximum 10T
• Variable Speed Control 0-4 Rpm
• ABB 880 Series Variable Speed Drive
• Emergency Stop Safety Monitor System (Sil1 / Cat2)
• 316 Grade Stainless Steel IP65 Enclosure with Sunshade
• Front Panel Control
• 10m Cabled Pendant with Speed Pot
• 125 Amp 4 Pin Plug with 10m Cable
• Fork Pockets, Crane Lifting and Lashing Lugs

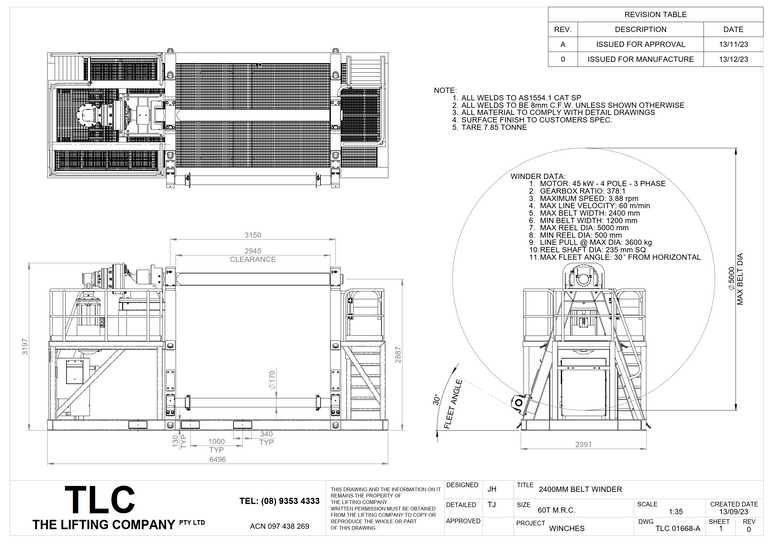

TLC 01668
