Belt Winder
Capacity - 100T M.R.C.
Tare - 18.5T
Min Belt Width - 2200 mm
Max Belt Width - 2400 mm
Max Line Pull - 10T
Max Line Speed - 53 m/min
Input RPM - 2.59 rpm
Gearbox Ratio - 563:1
TLC 01578
Belt Winder
Capacity - 100T M.R.C.
Tare - 19.2T
Min Belt Width - 1800 mm
Max Belt Width - 2400 mm
Max Line Pull - 10T
Max Line Speed - 53 m/min
Input RPM - 2.59 rpm
Gearbox Ratio - 563:1
TLC 01782
Modular Brake Stand
Capacity - 100T M.R.C.
Tare - 16.7T
Max Belt Width - 2400 mm
Min Belt Width - 1800 mm
TLC 01577
90 Degree Belt Turning Frame
Capacity - 10T Line Pull
Tare - 4.2T
2000 mm - 2500 mm Belt Diameter
TLC 01614
Flaking Roller Kit
Frame Capacity - 2T M.R.C.
Frame Tare - 1.5
1x 10T Roller
1x 20T Roller
1x Flaking Roller Installation Jib
1x Transport Frame With Toolbox
2x Dedicated Wire Rope Slings With S...
Brake Stand
Capacity - 12T M.R.C.
Tare - 2T
Max Belt Width - 2200 mm
Min Belt Width - 1800 mm
Clamping Force - 5000 N
TLC 01801
Belt Winder
Capacity - 12T M.R.C.
Tare - 2.35T
Min Belt Width - 1800 mm
Max Belt Width - 2200 mm
Max Line Pull At Max Diameter - 1400 kg
Max Line Pull At Min Diameter - 10000 kg
Max Line Speed - ...

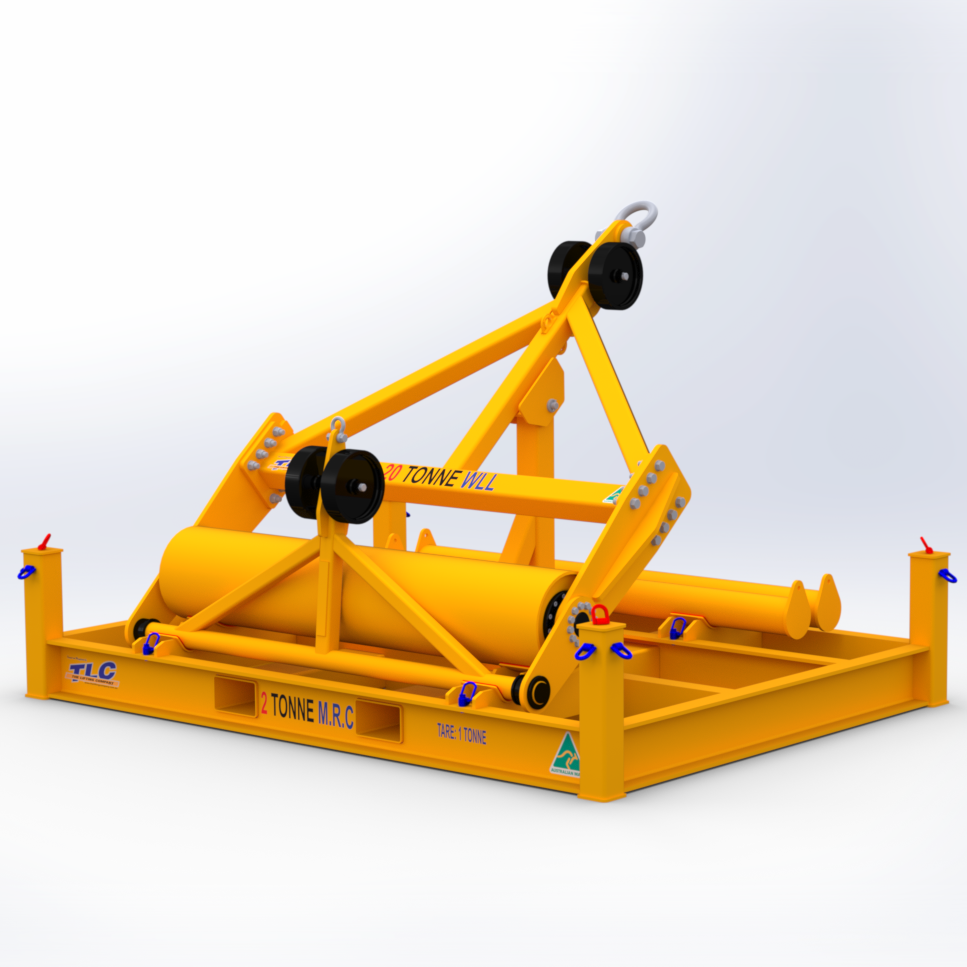

Flaking Roller And Transport Frame
Line Pull - 20T W.L.L.
Transport Frame Capacity - 2T M.R.C.
Flaking Roller Tare - 1T
TLC 01748
Hydraulic Belt Clamp
Capacity - 20T Line Pull
Tare - 1.9T
TLC 01689

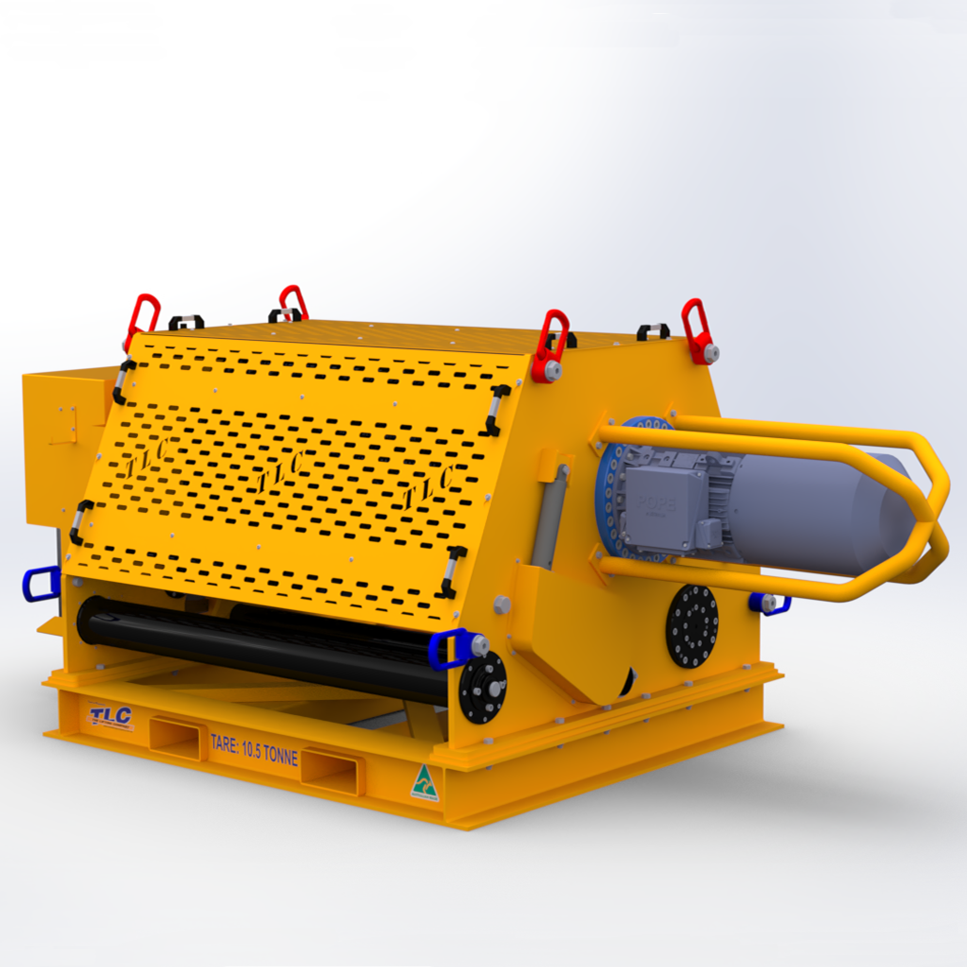

Single Drum Pinch Drive
Capacity - 20T
Tare - 10.5T
Belt Width - 2200mm
Line Pull 20000 kg
Line Velocity - 0m - 10m/min
Output RPM 3.21 R.P.M.
Drive Ratio - 305:1
TLC 00916
Belt Winder
Capacity - 25T M.R.C.
Tare - 4.3T
Min Belt Width - 1500 mm
Max Belt Width - 2000 mm
Max Line Pull At Max Diameter - 3740 kg
Max Line Pull At Min Diameter - 26200 kg
Max Line Speed - 44...
Let Off Stand
Capacity - 25T M.R.C.
Tare - 3.35T
Min Belt Width - 1500 mm
Max Belt Width - 2000 mm
Braking Time - 3.3 sec
Clamping Force - 28000 N
RPM - 4.02 (Winder driven)
TLC 01797
Twin Drum Pinch Drive
Capacity - 30T
Tare - 18.5T
Belt Width - 2400mm
Line Pull 30000kg
Line Velocity - 0m - 9m/min
Output RPM 2.8 R.P.M.
TLC 01932
SPECIFICATIONS: • Dual Rating with (60T) 235mm and (30T) 150mm Square Shafts • Quick Shaft Coupling with Replaceable High Load Bearings • Maximum Reel Diameter 5000 mm • Maximum Belt Width 2400 mm ...
Let Off Stand
Capacity - 60T/30 M.R.C.
Tare - 7.5T
Min Belt Width - 1200 mm
Max Belt Width - 2400 mm
Max Line Pull - 10T
Max Fleet Angle - 30°
TLC 01690
