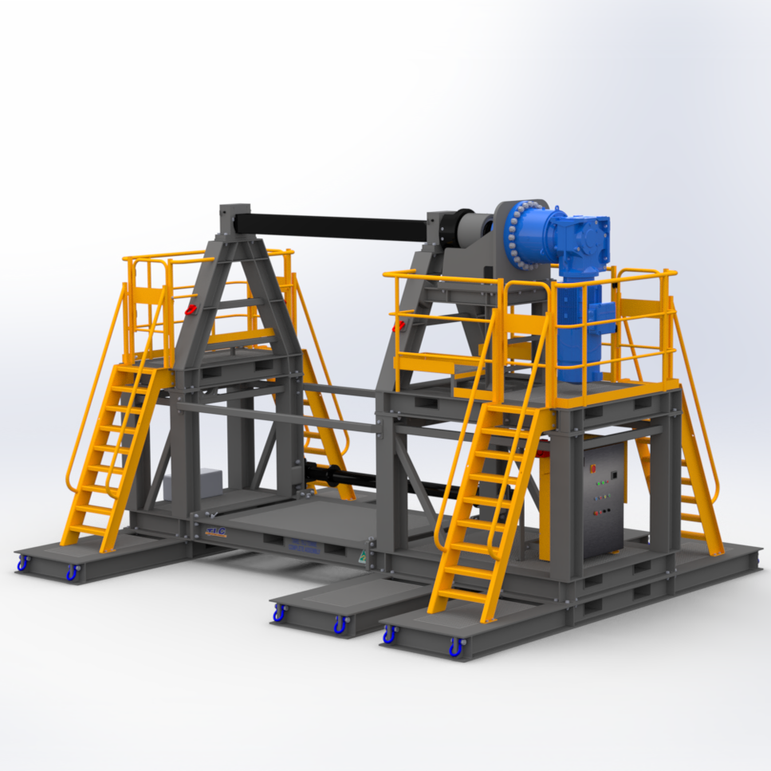

100T M.R.C. Electric Belt Winder (Centerline)

No review yet. Write Review

$0.00

Description

Belt Winder
Capacity - 100T M.R.C.
Tare - 19.2T
Min Belt Width - 1800 mm
Max Belt Width - 2400 mm
Max Line Pull - 10T
Max Line Speed - 53 m/min
Input RPM - 2.59 rpm
Gearbox Ratio - 563:1
TLC 01782

Back to Belting And Conveyor Equipment
