4T Modular Shop Belt Winder

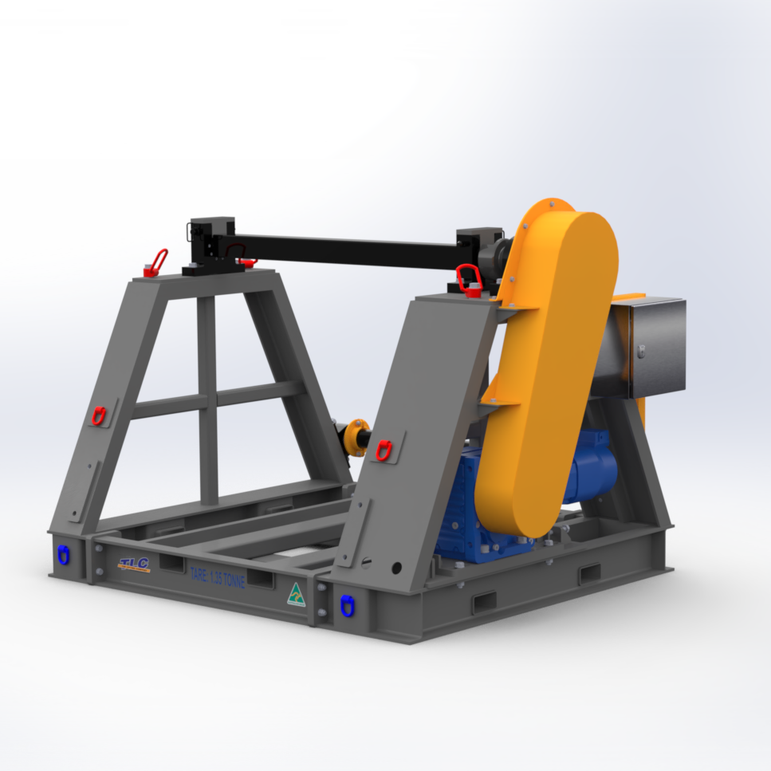

4T Modular Shop Belt Winder

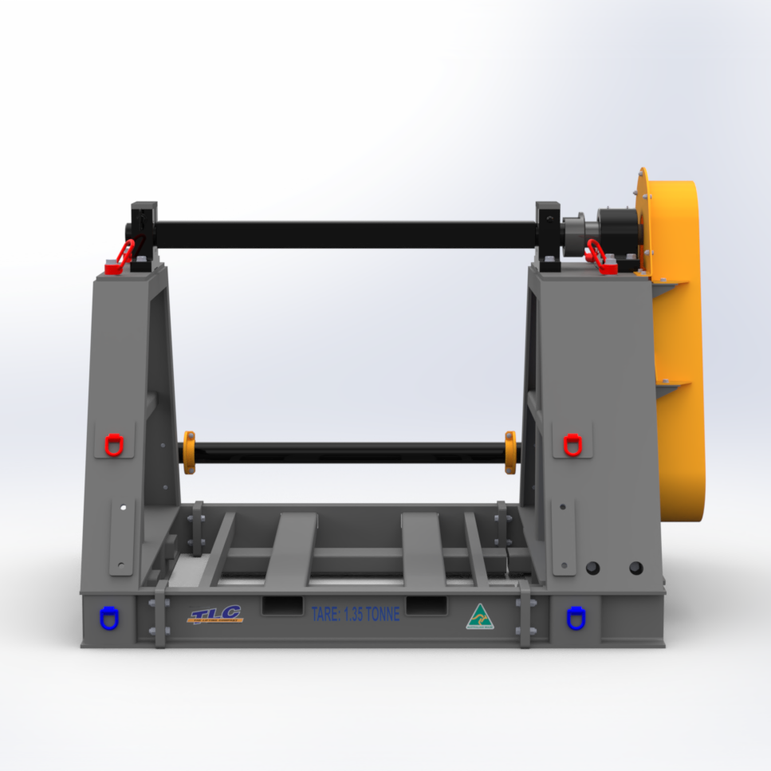

4T Modular Shop Belt Winder

4T Modular Shop Belt Winder

No review yet. Write Review

$0.00

Description

Request SWI

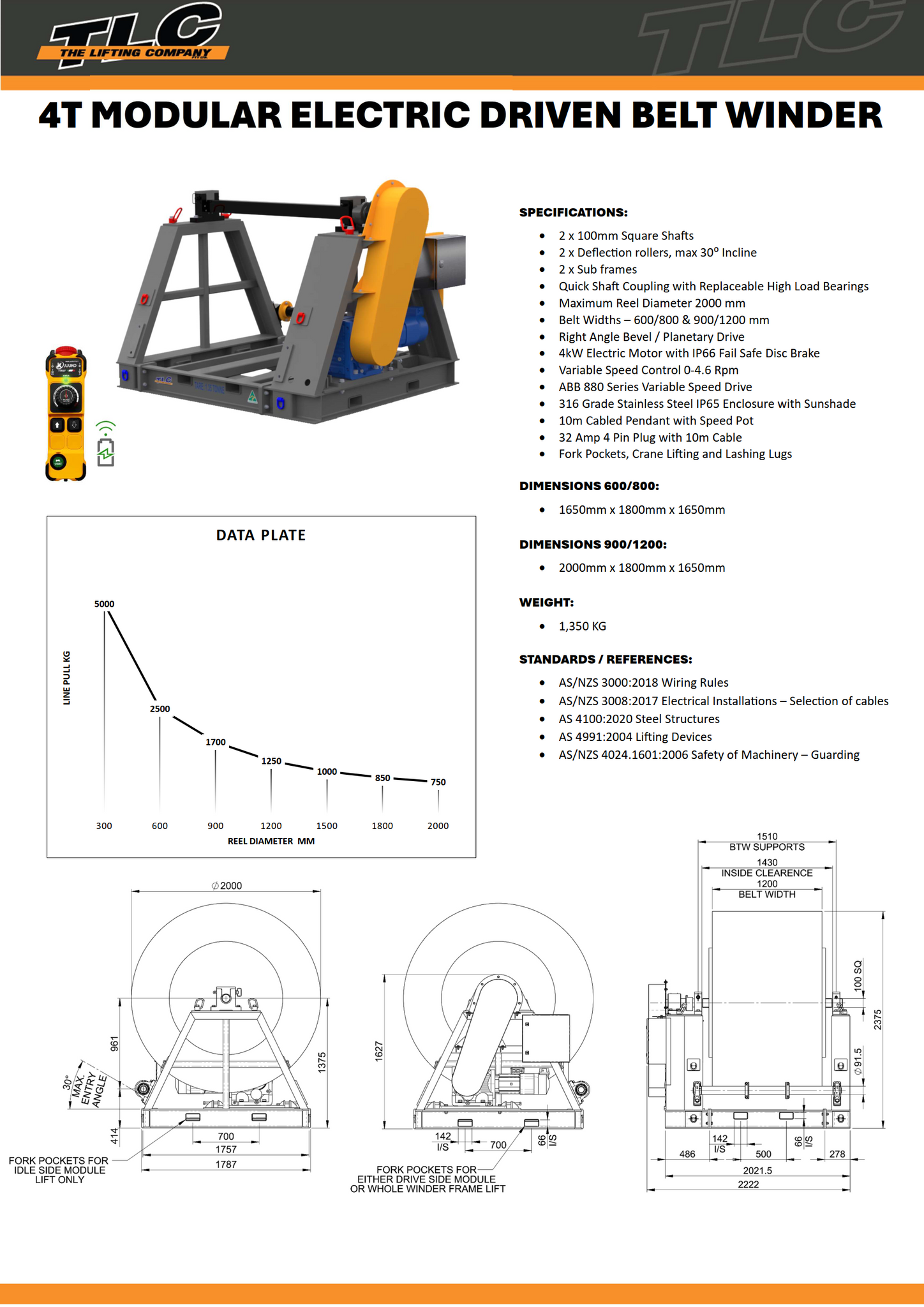

SPECIFICATIONS:

2 x 100mm Square Shafts
2 x Deflection rollers, max 30⁰ Incline
2 x Sub frames
Quick Shaft Coupling with Replaceable High Load Bearings
Maximum Reel Diameter 2000 mm
Belt Widths – 600/800 & 900/1200 mm
Right Angle Bevel / Planetary Drive
4kW Electric Motor with IP66 Fail Safe Disc Brake
Variable Speed Control 0-4.6 Rpm
ABB 880 Series Variable Speed Drive
316 Grade Stainless Steel IP65 Enclosure with Sunshade
10m Cabled Pendant with Speed Pot
32 Amp 4 Pin Plug with 10m Cable
Fork Pockets, Crane Lifting and Lashing Lugs

DIMENSIONS 600/800:

1650mm x 1800mm x 1650mm

DIMENSIONS 900/1200:

2000mm x 1800mm x 1650mm

WEIGHT:

1,350 KG

STANDARDS / REFERENCES:

AS/NZS 3000:2018 Wiring Rules
AS/NZS 3008:2017 Electrical Installations – Selection of cables
AS 4100:2020 Steel Structures
AS 4991:2004 Lifting Devices
AS/NZS 4024.1601:2006 Safety of Machinery – Guarding

TLC 02099
