W660RB Wheelie Bin Rotator Base

W660RB Wheelie Bin Rotator Base

W660RB Wheelie Bin Rotator Base

W660RB Wheelie Bin Rotator Base

No review yet. Write Review

$0.00

Description

Product	Code
Wheelie Bin Rotator Base	W660RB
Towing Hitch for W660RB	W660T

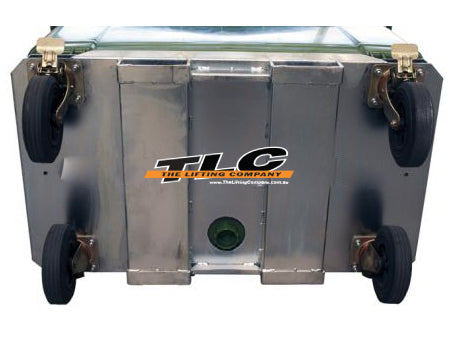

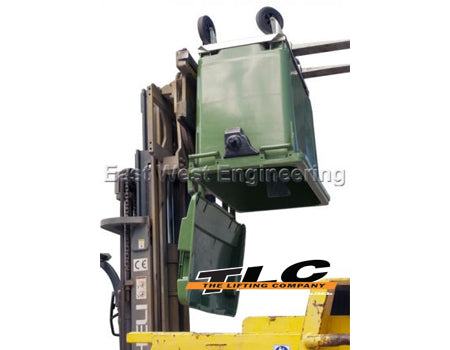

The W660RB ROTATOR BASE is designed to allow easy emptying of a standard 660 litre wheelie bin by any forklift fitted with a rotator attachment.

FEATURES

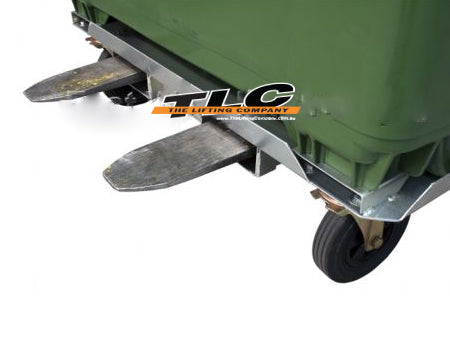

Sturdy metal base with fork pockets allows emptying of bin by a forklift with rotator attached
Frame is securely bolted to the wheelie bin base in four locations
Wheel bolts supplied

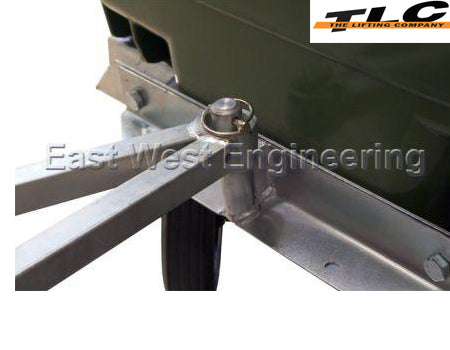

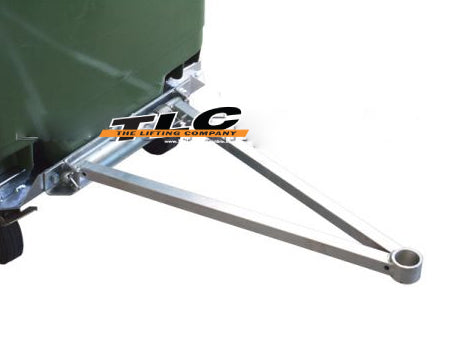

Optional Tow Hitch Kit (W660T) enables transport of multiple bins with a towing vehicle
Increases the functionality of industry standard wheelie bin in the workplace
Zinc finish

SPECIFICATIONS

Working Load Limit (WLL)	500kg
Unit Weight	30kg
Tow Hitch (W660T) Unit Weight	7kg
Fork Pocket Size	160 x 60mm
Fork Pocket Centres	365mm

NOTE: Wheelie Bin not included – shown for demonstration purpose only

Product Support Documents:

There are no support documents available at this time.
