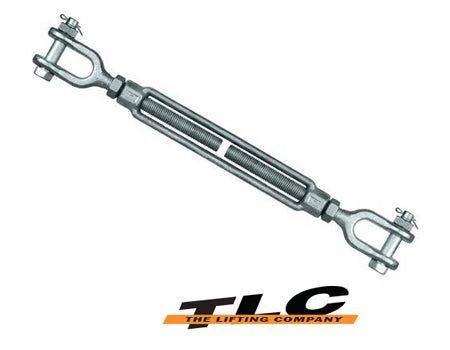

Turnbuckle Grade P Jaw Jaw

Turnbuckle Grade P Jaw Jaw

Turnbuckle Grade P Jaw Jaw

Turnbuckle Grade P Jaw Jaw

No review yet. Write Review

$0.00

Style

Style

406010 406012 406016 406016C 406020 406022 406025 406032 406038 406045 406051 406064

InStock SOLD OUT

Description

Generally used for straight or in line tensioning in conjunction with wire rope and or chain assemblies when heavy duty straining and lifting applications are required.
Manufactured from Grade P high tensile material quenched and tempered hot dipped galvanised finish suitable for outdoor use available in imperial sizing and jaw end fittings with lock nuts.
Meets the design requirements of ASTM F1145:2017.
Proof tested to 2 x WLL and minimum break force is 5 x WLL.
Suitable for industrial lifting purposes.
The actual sizes of thread are whitworth.


SIZE		CODE	WLL(T)	Wt.(kg)					DIMENSIONS	(mm)
(m)m	(inch)	CODE	WLL(T)	Wt.(kg)	A	B	C	E	F	G	M	N	L
10	3/8"	406010	0.54	0.37	9.65	12.7	152	410	258	22.1	441	289	8
12	1/2"	406012	1	0.71	12.7	16	152	470	292	26.9	508	330	10
16	5/8"	406016	1.59	1.56	16	19	229	662	401	33.3	715	454	12.7
16	5/8"	406016C	1.59	1.23	16	19	200	509	340	33.3	562	378	12.7
20	3/4"	406020	2.36	2.98	19.1	23.4	305	851	508	38.1	917	574	16
22	7/8"	406022	3.27	3.71	22.4	28.7	375	892	543	44.5	967	618	19
25	1"	406025	4.54	5.53	25.4	30	305	933	577	52.5	1018	662	22.5
32	1"1/4	406032	6.89	9.36	31.8	44.5	305	1012	644	71.5	1119	750	29
38	1"1/2	406038	9.71	13.9	38.1	52	305	1054	673	71.5	1181	800	35
45	1"3/4	406045	12.7	24.5	44.5	60	457	1356	899	86	1503	1046	41
51	2"	406051	16.8	42.8	51	63.5	610	1766	1157	93.5	1949	1339	50.8
64	2"1/2	406064	27.2	75	63.5	73	610	1854	1244	113	2087	1478	57
