TJCS25 2.5T Tilt Jib (Short)
| Product | Code |
|---|---|
| 2.5Tonne SWL Tilt Jib (Short) | TJCS25 |

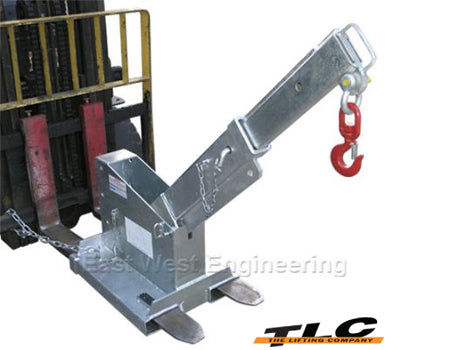

The type TJCS25 Tilt Jib (Short) is designed with a tilt facility allowing extra height to compensate for the hook and sling length lost when lifting with a Jib attachment. A maximum height of 1.4 metres can be gained while the Jib can be fully extended to 2.02 metres. This slip-on attachment is held to the Forklift by a safety chain. The Jibs overall length when closed is 1.35 metres.
The standard finish on the type TJCS25 Tilt Jib (Short) is Zinc Plated.
SPECIFICATIONS:
• Safe Working Load (SWL) 2500kg Max.
• Unit Weight 130kg
• Load Centre 825mm
• Pocket Size 165 x 65
• Pocket Centres 337 mm
• Horizontal C of G 650mm
• Vertical C of G 300mm
|
TJCS25 Tilt Jib |
Safe Working Load (SWL) per position |
||||
|
Position |
1 |
2 |
3 |
4 |
5 |
|
Extension (mm) |
825 |
1125 |
1260 |
1640 |
2020 |
|
SWL (kg) |
2500 |
1800 |
1200 |
900 |
750 |
