TJCL50 4.75T Tilt Jib (Long)

TJCL50 4.75T Tilt Jib (Long)

TJCL50 4.75T Tilt Jib (Long)

TJCL50 4.75T Tilt Jib (Long)

No review yet. Write Review

$0.00

Description

Product	Code
4.75Tonne SWL Tilt Jib (Long)	TJCL50

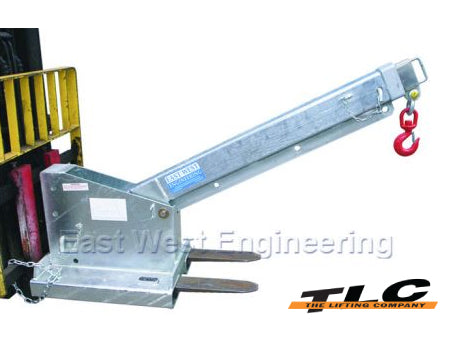

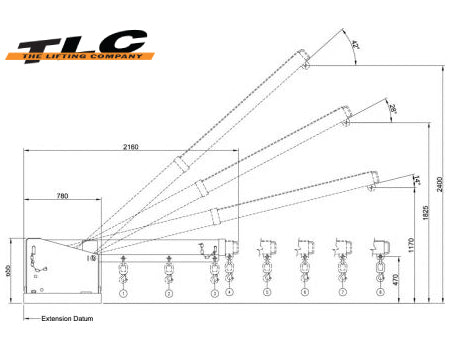

The type TJCL50 Tilt Jib (Long) is the most versatile Forklift Jib attachment in our range, allowing extra height to 2.4 metres, with a 3.59 metre reach when fully extended. This slip-on attachment is held to the Forklift by a safety chain. The Jibs overall length when closed is 2.16 metres. The standard finish on the type TJCL50 Tilt Jib (Long) is Zinc.

SPECIFICATIONS:

• Safe Working Load (SWL) 4750kg Max.
• Unit Weight 240kg
• Load Centre 1000mm
• Pocket Size 185 x 75
• Pocket Centres 370 mm
• Horizontal C of G 985mm
• Vertical C of G 275mm
