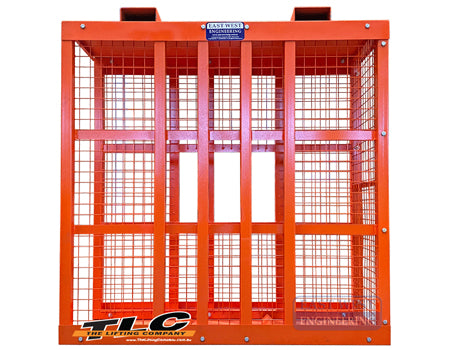

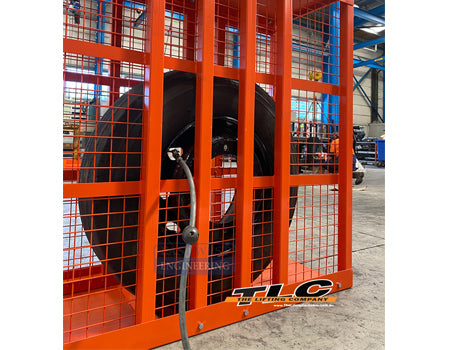

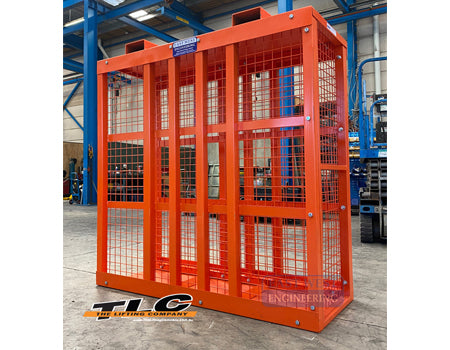

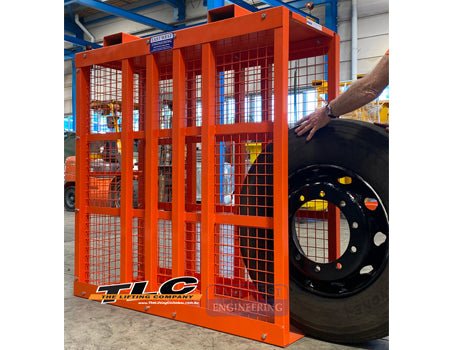

STBC15 Tyre Inflation Cage

STBC15 Tyre Inflation Cage

No review yet. Write Review
Regular price $0.00
InStock SOLD OUT

The STBC15 Tyre Inflation Cage is designed for the safe inflation of tyres.  Working with tyres, particularly truck and machinery tyres, is dangerous because of their bulk, weight, pressurised air or gas and presence of combustible material. The uncontrolled release of stored energy can have serious, even fatal consequences. When a tyre bursts or assemblies release, they can be propelled long distance at great speed with flying shrapnell. This heavy duty cage is constructed to provide protection against the risk of injury to workers and damage to plant and structures caused by a tyre blast.

FEATURES:
• Provides protection for personnel when inflating tyres
• Prevents risk of injury and damage caused by tyre blast
• Suits tyres sizes up to 1400mm diameter by 500mm wide
• Heavy duty construction designed to withstand impact and force
• Locating guides on base hold wheel in position
• Mesh sides help enclose any flying particles
• Fork pockets and crane lugs fitted for easy location in the workshop

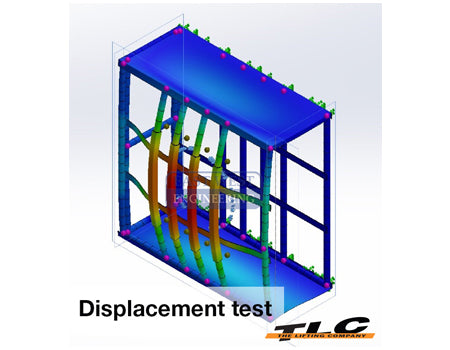

• Finite Element Analysis confirms design is engineered to withstand the most severe blast
• Designed and certified to relevant Australian standards
• Enamel paint finish


Supplied as a fully assembled unit



SPECIFICATIONS:

 Maximum Tyre Size  1400(dia) x 500(w) mm
 Internal  Dimensions  1450(l) x 500(w) x 1460(h) mm
 Overall Dimensions  1510(l) x 610(w) x 1570(h) mm
 Unit Weight   200kg
 Fork Pocket Size  160 x 60mm
 Fork Pocket Centres  800mm
