SFJCL100 Fixed Jib Long – 10T
| Product | Code |
|---|---|
| Fixed Jib Long 10T WLL | SFJCL100 |

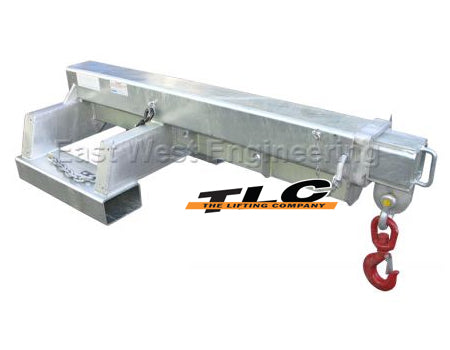

The type SFJCL100 Fixed Jib (Long) is designed as an affordable general purpose Jib with a 3.56 metre reach when fully extended. This Jib has been designed with wide pockets suitable for Forklifts with special hydraulic Tine Positioners. This slip-on Forklift attachment is held to the Forklift by a safety chain. The Jibs overall length when closed is 2.19 metres.Supplied with safety swivel hook and shackle.
SPECIFICATIONS:
• Safe Working Load (SWL) 10,000kg Max.
• Unit Weight 515kg
• Load Centre 920mm

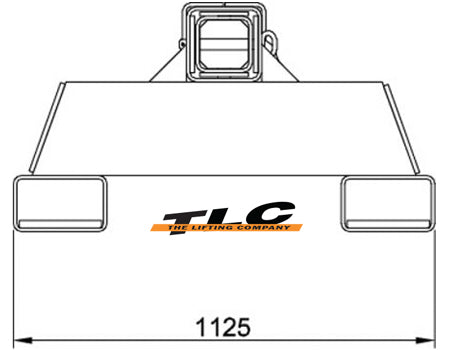

• Pocket Size 230 x 110
• Pocket Centres 875 mm
• Horizontal C of G 1200mm
• Vertical C of G 100mm
• Zinc Finish
|

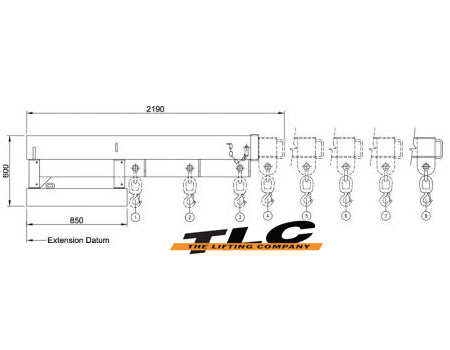

SFJCL100 Fixed Jib |
Safe Working Load (SWL) per position |
|||||||
|
Position |
1 |
2 |
3 |
4 |
5 |
6 |
7 |
8 |
|
Extension (mm) |
920 |
1380 |
1805 |
2045 |
2425 |
2805 |
3185 |
3565 |
|
SWL (kg) |
10000 |
8550 |
7600 |
6600 |
5000 |
2600 |
1520 |
960 |
