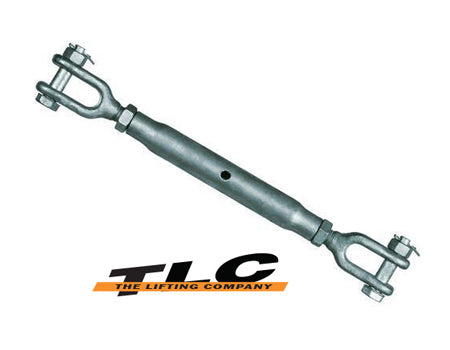

Rigging Screw Grade S Jaw/Jaw

No review yet. Write Review

$0.00

Size

10mm 12mm 16mm 20mm 25mm 27mm 33mm 39mm 45mm 48mm

InStock SOLD OUT

Description


SIZE(mm)	CODE		WLL(T)	Wt.(kg)	DIMENSIONS(mm)
SIZE(mm)	CODE		WLL(T)	Wt.(kg)	A	C	D	N	O
10	407110	Crade S	0.8	0.48	152	124	21	235	345
12	407112	Grade S	1.2	0.98	229	183	25	350	525
16	407116	Grade S	2	1.4	229	194	27	390	530
20	407120	Grade S	3.2	2.3	229	204	34	405	540
25	407124	Grade S	5	4.85	356	292	42	565	820
27	407127	Grade S	6.3	5.75	256	294	45	590	805
33	407133	Grade S	10	8.08	381	320	57	640	870
39	407139	Grade S	12	13.5	407	356	63.5	700	960
45	407145	Grade S	16	18.6	407	378	70	755	975
48	407148	Grade S	20	23	407	404	76	790	975
