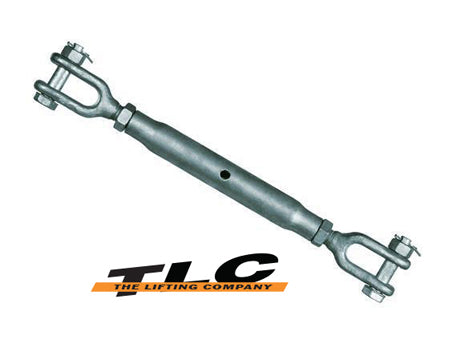

Rigging Screw Grade L Jaw/Jaw

No review yet. Write Review

$0.00

Size

10mm 12mm 16mm 20mm 24mm 27mm 33mm 39mm 45mm 48mm

InStock SOLD OUT

Description


SIZE(mm)	CODE		WLL(T)	Wt.(kg)	DIMENSIONS (mm)
SIZE(mm)	CODE		WLL(T)	Wt.(kg)	A	C	D	N	O
10	407010L	Grade L	0.5	0.48	152	124	21	235	345
12	407012L	Grade L	0.5	0.98	229	183	25	350	525
16	407016L	Grade L	0.75	1.4	229	194	27	390	530
20	407020L	Grade L	1.2	23	229	204	34	405	540
24	407024L	Grade L	2.5	4.85	356	292	42	565	820
27	407027L	Grade L	3	5.75	256	294	45	590	805
33	407033L	Grade L	5	8.08	381	320	57	640	870
39	407039L	Grade L	6	13.5	407	356	63.5	700	960
45	407045L	Grade L	7	18.6	407	378	70	755	975
48	407048L	Grade L	10	23	407	404	76	790	975
