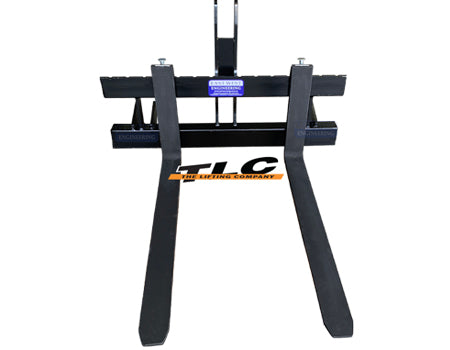

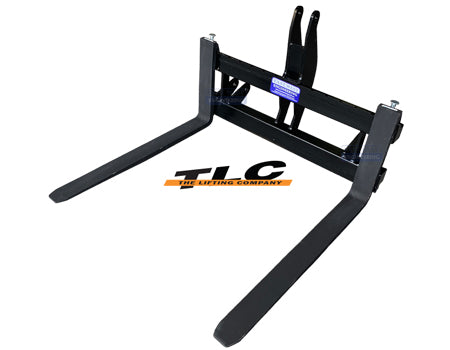

QTPL 3PL Pallet Forks
The QTPL Three Point Linkage Pallet Forks is a versatile Class 2 fork carriage and fork tine assembly that converts your tractors 3PL into a basic forklift. This pallet fork is designed to allow quick and easy handling of pallets, IBCs, bulky bins etc from the back of your tractor.
FEATURES:
• Converts the back of your tractor into a basic forklift
• Increases a tractors versatility to handle palletised goods & other equipment via the 3PL
• Simple connection to a cat. 2 three point linkage
• Heavy duty construction
• Class 2 fork arms fitted for handling palletised goods
• Available in 2 capacity models

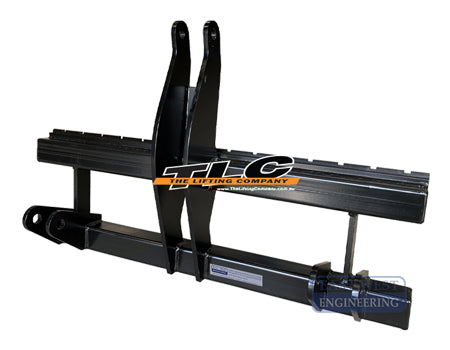

• Carriage can be supplied without forks on request
• Designed in accordance with AS2359.1 and ISO 23206
• Enamel paint finish
SPECIFICATIONS:
 |
Model |
Working Load Limit (kg) |
Carriage Width (mm) |
Fork Tines (mm) |
Unit Weight (mm) |
| QTPL15 | 1500 | 1200 | 100x32x1070 | 133 | |
| QTPL25 | 2500 | 1200 | 125x35x1070 | 157 |
 |
Check with the manufacturer for compatibility. Actual lifting capacities are determined by the working capacity of the tractor.
|
