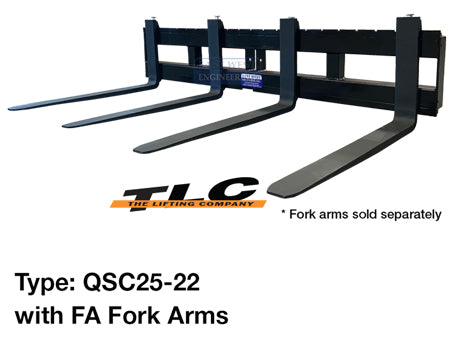

QSC25-22 Wide Carriage - 2200mm
The QSC25-22 Wide Carriage is a 2200mm wide Class 2 forklift carriage and is suitable for all machinery and agricultural applications where fork tines and other attachments are to be fitted.
FEATURES:
• Ideal for double pallet handling
• ISO/FEM Carriage Class 2 models
• Precision machined to suit Class 2 fork tines
• Available without hitch (blank) or in models to suit Forklift, Euro, 3PL, Skid steer, Burder or Challenge fitment
• Q-Fit carriage designed for easy fitment of optional accessories
• Made from high grade steel
• Optional load guard (QSC25LG-22) available on request
• Fork arms sold separately
SPECIFICATIONS:
| Model |
To suit |
ISO/FEM Class |
Working Load Limit (kg) |
Load Centre (mm) |
Width (mm) |
Unit Weight (kg) |

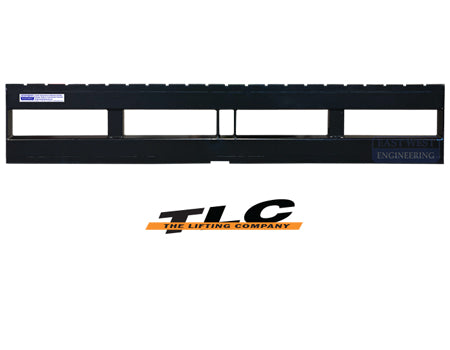

| QSC25-22 * | Blank | 2 | 2500 | 500 | 2200 | 100 |

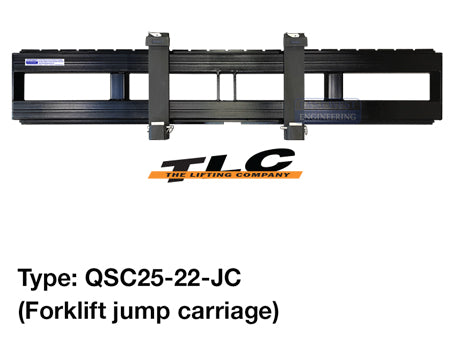

| QSC25-22-JC ** | Forklift | 2 | 2500 | 500 | 2200 | 122 |

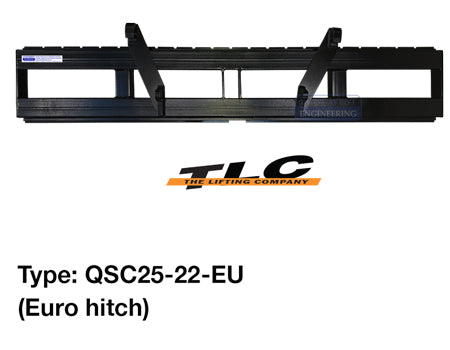

| QSC25-22-EU | Euro Hitch | 2 | 2500 | 500 | 2200 | 112 |

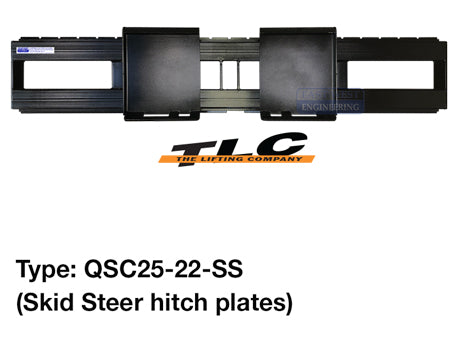

| QSC25-22-SS | Skid Steer | 2 | 2500 | 500 | 2200 | 119 |

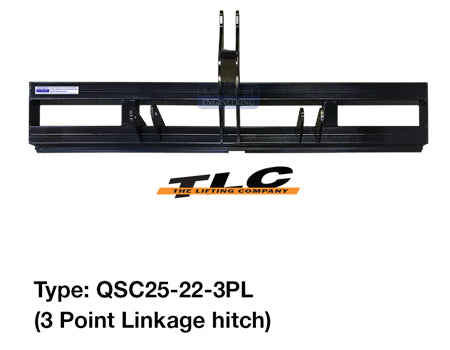

| QSC25-22-3PL | 3 Point Linkage | 2 | 2500 | 500 | 2200 | 128 |

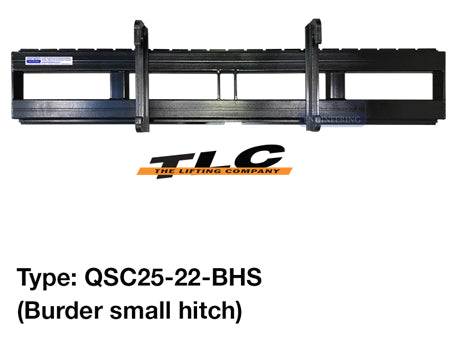

| QSC25-22-BHS | Burder Small Hitch | 2 | 2500 | 500 | 2200 | 112 |
| QSC25-22-BHL | Burder Large Hitch | 2 | 2500 | 500 | 2200 | 120 |

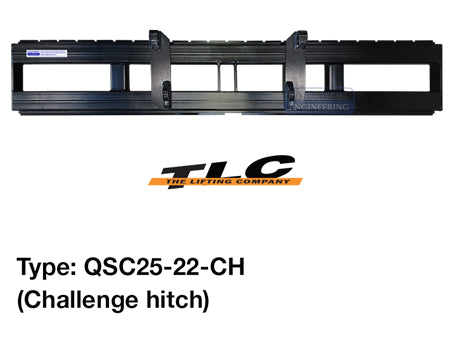

| QSC25-22-CH | Challenge Hitch | 2 | 2500 | 500 | 2200 | 112 |
* No hitch plates included. Customer to fit their specific hitch or brackets to suit machinery
** Jump Carriage fits to existing forklift carriage to provide wider carriage for short term use
