Push Pull
| Product | Code |
|---|---|
| Push Pull Fork Mount | PPSQ16-12P-10 |
PRICE ON APPLICATION

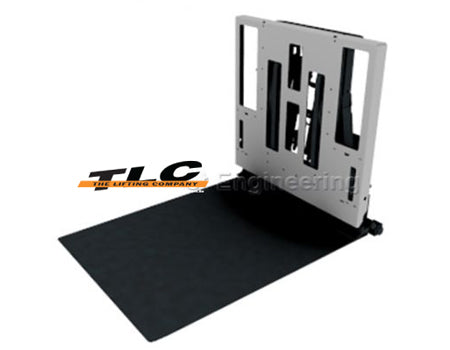

Push-pull attachment is the perfect solution for when the standard lift truck needs to be converted to a slip sheet forklift. The general features of the East West push-pull attachment are:
- High tensile steel forks and components.
- Less weight because of special design.
- One hydraulic function for push/pull and gripper movement.
- Maintenance friendly.
- Face plate pre-angle of 4 degrees.
- Minimum lost load thickness.
This attachment is adapted onto the existing forklift truck forks. This system is most appropriate when companies load or unload containers once in a while with their existing forklift truck.
- Alternating between the forks and push-pull attachment can be eliminated.
- Simple and solid locking system onto the standard forklift truck forks.
- Optional change coupling.
|
Model |
Capacity @ Load Centre |
Mounting Class |
Platten Size |
Push Plate |
Weight |
Lost Load |
Horizontal Centre of Gravity |
|
(kg@mm) |
(mm) |
(mm) |
(kg) |
(mm) |
(mm) |
||
|
PP-SQ16-12P-10 |
1600@600 |
Slip-on |
415X1200 |
1020X1020 |
350 |
167 |
140 |
|
PP-SQ20-12P-10 |
2000@600 |
Slip-on |
415X1200 |
1020X1020 |
362 |
167 |
160 |
