NWB-T2 Wheelie Bin Tipper

NWB-T2 Wheelie Bin Tipper

NWB-T2 Wheelie Bin Tipper

NWB-T2 Wheelie Bin Tipper

No review yet. Write Review

$0.00

Description

Product	Code
Wheelie Bin Tipper 2 X 240L	NWB-T2

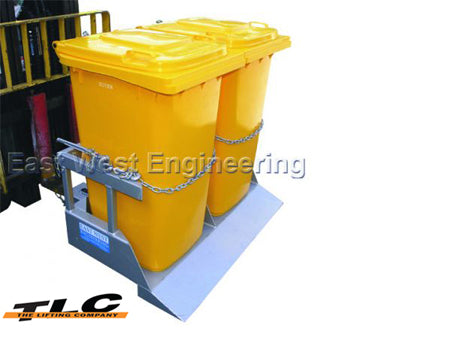

The NWB-T2 Wheelie Bin Tipper is designed to safely lift, transport and empty one or two standard 240 litre plastic bin with a forklift

FEATURES:
• Ramp fitted for wheeling bin into position
• Safety chain and backrest used to secure bin in cradle
• Simple tipping action operated from driver’s seat
• Allows 180° rotation of bin
• Slip-on attachment allows quick connection to a forklift
• Design can vary for use with a 120 litre plastic bin
• Suitable for manufacturing and general industry applications
• Zinc finish

SPECIFICATIONS:

Working Load Limit (WLL)	1000kg
Load Centre	1200mm
Tipping Angle	180°
Unit Weight	150kg
Pocket Size	185 x 85mm
Pocket Centres	340mm
Horizontal C of G	720mm
Vertical C of G	90mm
