NWB-T1 Wheelie Bin Tipper
| Product | Code |
|---|---|
| Wheelie Bin Tipper | NWB-T1 |

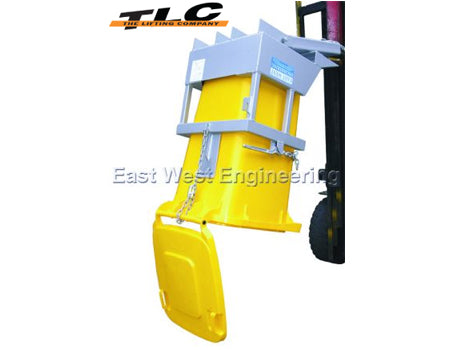

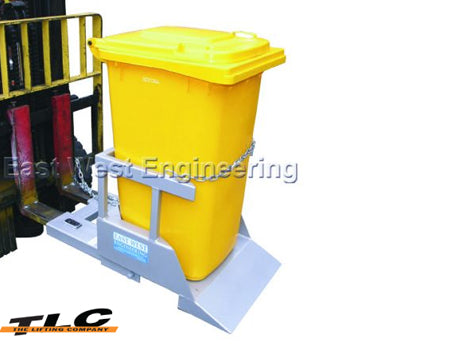

The NWB-T1 Wheelie Bin Tipper is designed to safely lift, transport and empty a standard 240 litre plastic bin with a forklift
FEATURES:
• Ramp fitted for wheeling bin into position
• Safety chain and backrest used to secure bin in cradle
• Simple tipping action operated from driver’s seat
• Allows 180° rotation of bin
• Slip-on attachment allows quick connection to a forklift
• Design can vary for use with a 120 litre plastic bin
• Suitable for manufacturing and general industry applications
• Zinc finish
SPECIFICATIONS:
| Working Load Limit (WLL) | 500kg |
| Load Centre | 1200mm |
| Tipping Angle | 180° |
| Unit Weight | 100kg |
| Pocket Size | 185 x 85mm |
| Pocket Centres | 340mm |
| Horizontal C of G | 720mm |
| Vertical C of G | 90mm |
