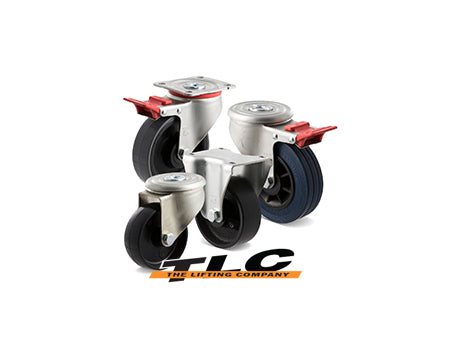

J Series

Able to carry up to 300 kg each, J Series castors are available in 100 and 125 mm sizes, in a variety of wheel types.

Forks can also be purchased separately.

Load rating:	150–300 kg
Wheels:	Blue high resilience elastomer, polyurethane, hard nylon, cast iron
Forks:	Zinc plated Core Coat™ in swivel plate, fixed plate, bolt hole, total brake and direction lock configurations
Warranty:	Three years
Mount dimensions:

Castor options

JBR wheel

Max load: 150–180 kg

Material: Blue high resilience elastomer

Bearing: Roller bearing

Thread guard: Optional

Order code:	JBR100
Diameter:	100 mm
Tread:	32 mm
Hub:	45 mm
Bore:	10 mm
Enquiry Now With thread guard

Order code:	JBR125
Diameter:	125 mm
Tread:	32 mm
Hub:	45 mm
Bore:	10 mm
Enquiry Now With thread guard

100 mm castors

Swivel plate

Order code:	JBR100/JZP
Max load:	150 kg
Mount height:	129 mm
Turning radius:	90 mm
Enquiry Now With thread guard

Swivel plate and total brake

Order code:	JBR100/JZPTB
Max load:	150 kg
Mount height:	129 mm
Turning radius:	122 mm
Enquiry Now With thread guard

Fixed plate

Order code:	JBR100/JZF
Max load:	150 kg
Mount height:	129 mm
Turning radius:	n/a
Enquiry Now With thread guard

Bolt hole

Order code:	JBR100/JZH
Max load:	150 kg
Mount height:	129 mm
Turning radius:	90 mm
Enquiry Now With thread guard

Bolt hole and total brake

Order code:	JBR100/JZHTB
Max load:	150 kg
Mount height:	129 mm
Turning radius:	122 mm
Enquiry Now With thread guard

125 mm castors

Swivel plate

Order code:	JBR125/JZP
Max load:	180 kg
Mount height:	129 mm
Turning radius:	106 mm
Enquiry Now With thread guard

Swivel plate and total brake

Order code:	JBR125/JZPTB
Max load:	180 kg
Mount height:	129 mm
Turning radius:	122 mm
Enquiry Now With thread guard

Fixed plate

Order code:	JBR125/JZF
Max load:	180 kg
Mount height:	129 mm
Turning radius:	n/a
Enquiry Now With thread guard

Bolt hole

Order code:	JBR125/JZH
Max load:	180 kg
Mount height:	129 mm
Turning radius:	106 mm
Enquiry Now With thread guard

Bolt hole and total brake

Order code:	JBR125/JZHTB
Max load:	180 kg
Mount height:	129 mm
Turning radius:	122 mm
Enquiry Now With thread guard

JCR wheel

Max load: 230 kg

Material: Cast iron

Bearing: Roller bearing

Thread guard: No

Order code:	JBR100
Diameter:	100 mm
Tread:	38 mm
Hub:	45 mm
Bore:	10 mm
Enquiry Now

100 mm castors

Swivel plate

Order code:	JCR100/JZP
Max load:	230 kg
Mount height:	129 mm
Turning radius:	90 mm
Enquiry Now

Fixed plate

Order code:	JCR100/JZF
Max load:	230 kg
Mount height:	129 mm
Turning radius:	n/a
Enquiry Now

Bolt hole

Order code:	JCR100/JZH
Max load:	230 kg
Mount height:	129 mm
Turning radius:	90 mm
Enquiry Now

JNR wheel

Max load: 300 kg

Material: Hard nylon

Bearing: Roller bearing

Thread guard: Optional

Order code:	JNR100
Diameter:	100 mm
Tread:	35 mm
Hub:	45 mm
Bore:	10 mm
Enquiry Now With thread guard

Order code:	JNR125
Diameter:	125 mm
Tread:	35 mm
Hub:	45 mm
Bore:	10 mm
Enquiry Now With thread guard

100 mm castors

Swivel plate

Order code:	JNR100/JZP
Max load:	300 kg
Mount height:	129 mm
Turning radius:	90 mm
Enquiry Now With thread guard

Swivel plate and total brake

Order code:	JNR100/JZPTB
Max load:	300 kg
Mount height:	129 mm
Turning radius:	122 mm
Enquiry Now With thread guard

Fixed plate

Order code:	JNR100/JZF
Max load:	300 kg
Mount height:	129 mm
Turning radius:	n/a
Enquiry Now With thread guard

Bolt hole

Order code:	JNR100/JZH
Max load:	300 kg
Mount height:	129 mm
Turning radius:	90 mm
Enquiry Now With thread guard

Bolt hole and total brake

Order code:	JNR100/JZHTB
Max load:	300 kg
Mount height:	129 mm
Turning radius:	122 mm
Enquiry Now With thread guard

125 mm castors

Swivel plate

Order code:	JNR125/JZP
Max load:	300 kg
Mount height:	155 mm
Turning radius:	106 mm
Enquiry Now With thread guard

Swivel plate and total brake

Order code:	JNR125/JZPTB
Max load:	300 kg
Mount height:	155 mm
Turning radius:	122 mm
Enquiry Now With thread guard

Fixed plate

Order code:	JNR125/JZF
Max load:	300 kg
Mount height:	155 mm
Turning radius:	n/a
Enquiry Now With thread guard

Bolt hole

Order code:	JNR125/JZH
Max load:	300 kg
Mount height:	155 mm
Turning radius:	106 mm
Enquiry Now With thread guard

Bolt hole and total brake

Order code:	JNR125/JZHTB
Max load:	300 kg
Mount height:	155 mm
Turning radius:	122 mm
Enquiry Now With thread guard

JUR wheel

Max load: 300 kg

Material: Polyurethane on nylon

Bearing: Roller bearing

Thread guard: Optional

Order code:	JUR100
Diameter:	100 mm
Tread:	32 mm,38 mm
Hub:	45 mm
Bore:	10 mm
Enquiry Now With thread guard

Order code:	JUR125
Diameter:	125 mm
Tread:	32 mm,38 mm
Hub:	45 mm
Bore:	10 mm
Enquiry Now With thread guard

100 mm castors

Swivel plate

Order code:	JUR100/JZP
Max load:	300 kg
Mount height:	129 mm
Turning radius:	90 mm
Enquiry Now With thread guard

Swivel plate and total brake

Order code:	JUR100/JZPTB
Max load:	300 kg
Mount height:	129 mm
Turning radius:	122 mm
Enquiry Now With thread guard

Fixed plate

Order code:	JUR100/JZF
Max load:	300 kg
Mount height:	129 mm
Turning radius:	n/a
Enquiry Now With thread guard

Bolt hole

Order code:	JUR100/JZH
Max load:	300 kg
Mount height:	129 mm
Turning radius:	90 mm
Enquiry Now With thread guard

Bolt hole and total brake

Order code:	JUR100/JZHTB
Max load:	300 kg
Mount height:	129 mm
Turning radius:	122 mm
Enquiry Now With thread guard

125 mm castors

Swivel plate

Order code:	JUR125/JZP
Max load:	300 kg
Mount height:	155 mm
Turning radius:	106 mm
Enquiry Now With thread guard

Swivel plate and total brake

Order code:	JUR125/JZPTB
Max load:	300 kg
Mount height:	155 mm
Turning radius:	122 mm
Enquiry Now With thread guard

Fixed plate

Order code:	JUR125/JZF
Max load:	300 kg
Mount height:	155 mm
Turning radius:	n/a
Enquiry Now With thread guard
