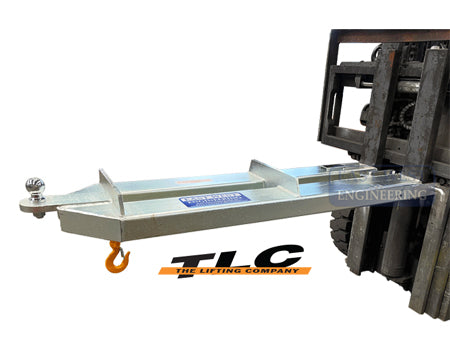

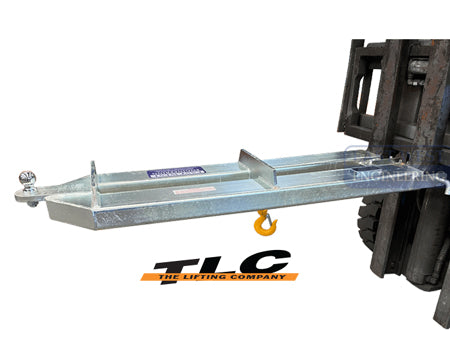

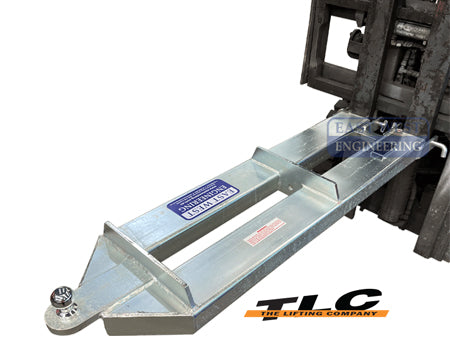

FST200 Slip-on Tow Jib

FST200 Slip-on Tow Jib

FST200 Slip-on Tow Jib

FST200 Slip-on Tow Jib

No review yet. Write Review

$0.00

Description

Designed for versatility, the FST200 Slip-on Tow Jib is a dual purpose, easy to use forklift attachment that allows both towing and general lifting functionality.

FEATURES:
• 2000kg capacity lifting jib with 2 hook positions 600mm apart
• 50mm tow ball for towing loads up to 500kg
• Supplied with a 2T safety swivel hook and shackle
• Slip-on attachment and fork locking pins allow quick connection to a forklift
• Lightweight and simple to use
• Zinc finish

SPECIFICATIONS:

Working Load Limit (WLL)	2000kg
Max. Trailer Weight	500kg
Load Centre	1200mm
Unit Weight	50kg
Fork Pocket Size	140 x 65mm
Fork Pocket Centres	250mm
