FJCS50 Fixed Jib Short – 4.75T

FJCS50 Fixed Jib Short – 4.75T

FJCS50 Fixed Jib Short – 4.75T

FJCS50 Fixed Jib Short – 4.75T

No review yet. Write Review

$0.00

Description

Product	Code
Fixed Jib Short – 4.75T SWL	FJCS50

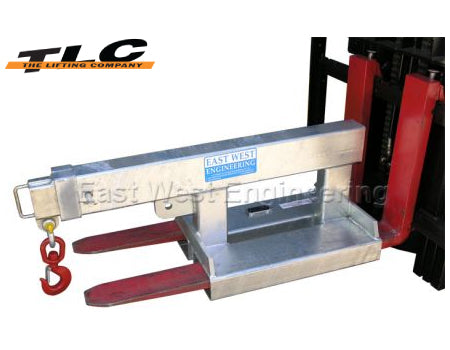

The type FJS5 Fixed Jib (Short) is designed as an affordable general purpose Jib able to manoeuvre in confined spaces, with a 1.96 metre reach when fully extended. This slip-on Forklift attachment is held to the Forklift by a safety chain. The Jibs overall length when closed is 1.3 metres.

The standard finish on the type FJS5 Fixed Jib (Short) is Zinc Plated.

SPECIFICATIONS:
• Safe Working Load (SWL) 4750kg Max.
• Unit Weight 130kg
• Load Centre 780mm

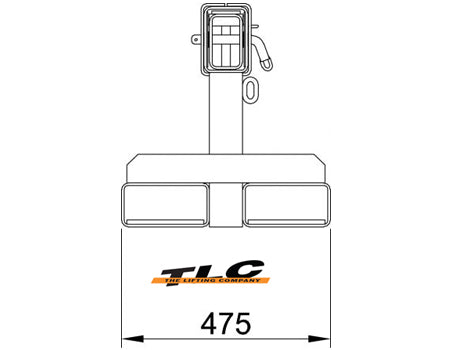

• Pocket Size 185 x 75
• Pocket Centres 275 mm
• Horizontal C of G 700mm
• Vertical C of G 165mm

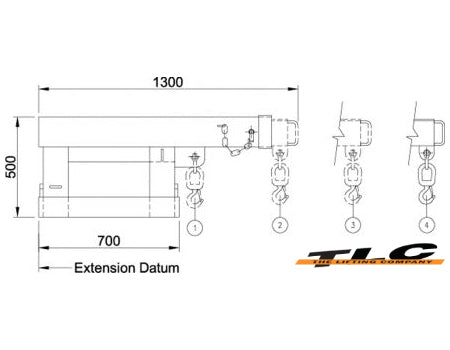

FJCS50 Fixed Jib	Safe Working Load (SWL) per position
Position	1	2	3	4
Extension (mm)	780	1200	1580	1960
SWL (kg)	4750	2400	1800	1500
