FJCL50 Fixed Jib Long – 4.75T

FJCL50 Fixed Jib Long – 4.75T

FJCL50 Fixed Jib Long – 4.75T

FJCL50 Fixed Jib Long – 4.75T

No review yet. Write Review

$0.00

Description

Product	Code
Fixed Jib Long – 4.75 Tonne SWL	FJCL50

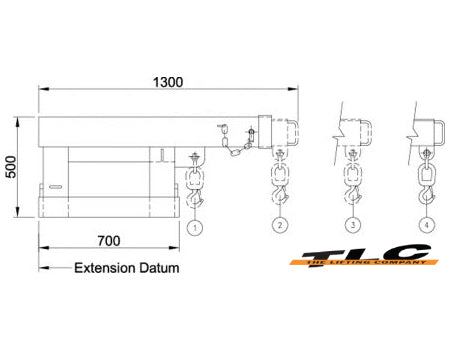

The type FJL5 Fixed Jib (Long) is designed as an affordable general purpose Jib with a 3.5 metre reach when fully extended. This slip-on Forklift attachment is held to the Forklift by a safety chain. The Jibs overall length when closed is 2.1 metres.

The standard finish on the type FJL5 Fixed Jib (Long) is Zinc Plated.

SPECIFICATIONS:
• Safe Working Load (SWL) 4750kg Max.
• Unit Weight 170kg
• Load Centre 935mm

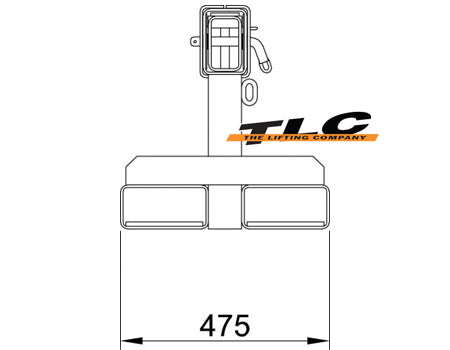

• Pocket Size 185 x 75
• Pocket Centres 275 mm
• Horizontal C of G 1210mm
• Vertical C of G 200mm

FJCL50 Fixed Jib	Safe Working Load (SWL) per position
Position	1	2	3	4	5	6	7	8
Extension (mm)	935	1395	1855	2000	2380	2760	3140	3520
SWL (kg)	4750	4275	3800	3300	2500	1300	760	480
