FJA470 Extension Jib – 4.7T
| Product | Code |
|---|---|
| Extension Jib 4700kg WLL | FJA470 |

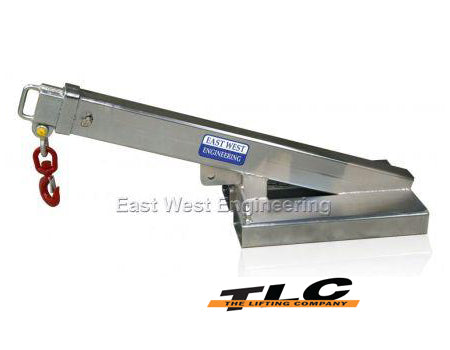

The FJA470 TELESCOPIC EXTENSION FIXED JIB is a valuable addition to any workshop. Designed to provide optimum safety for the forklift operator and assistants during any ‘lift by hook’ application.

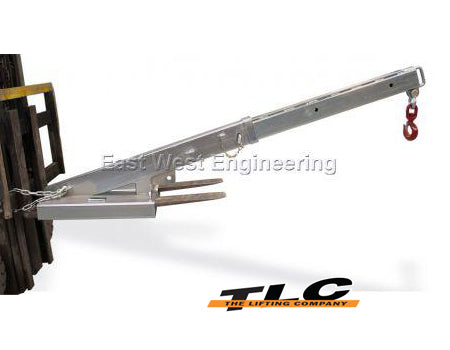

The compact closed length of the jib allows for greater lifting capability and manouevrability while extending up to 2500mm in length gives extra versatility when required. The tilt angle of the boom increases the jibs capability while a safety chain securely attaches unit to the forklift.

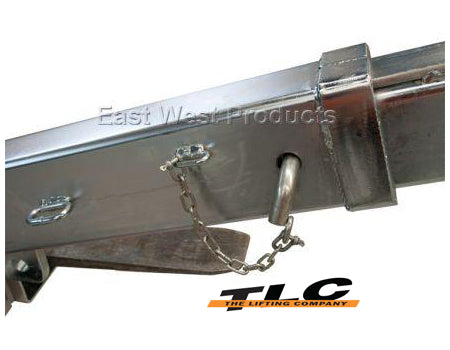

Removal of the locking pin allows the jib to be extended giving a choice of four different lifting positions. A safety swivel hook is fitted as standard.
Zinc finish for durability. Certified to relevant Australian Standards and supplied with instruction manual, certification and risk assessment.
SPECIFICATIONS:
· Working Load Limit (WLL): 4700kg Max.
· Unit Weight: 140kg
· Load Centre: 790mm
· Pocket Size: 185 x 65
· Pocket Centres: 350 mm
· Horizontal C of G: 600mm
· Vertical C of G: 120mm
|
Working Load Limit (WLL) per position |
||||
|
Position |
1 |
2 |
3 |
4 |
|
Extension (mm) |
790 |
1390 |
1880 |
2365 |
|
WLL (kg) |
4700 |
1200 |
700 |
500 |
