FCB Fork Carriage Bar

No review yet. Write Review

$0.00

Description

Product	Code
FCB2-102-P Class 2 x 1020 mm	FCB2-102-P
FCB3-102-P Class 3 x 1020 mm	FCB3-102-P
FCB4-160-P Class 4 x 1600 mm	FCB4-160-P

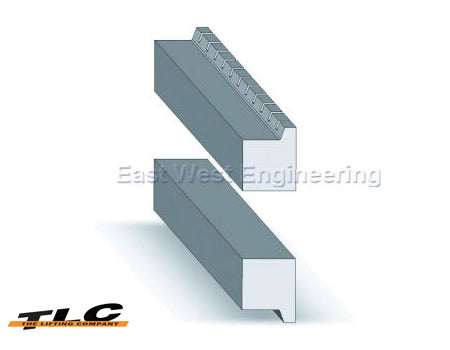

The type FCB Fork Carriage Bar has been designed and machined in accordance with AS2359.11. Supplied in pairs, consisting of one Upper and one Lower Bar. Manufactured from Grade 350 mild steel, the Fork Carriage Bar is ready for welding into standard Carriages.

SPECIFICATIONS:
• Made of Grade 350 Mild Steel
• Precision Machined
• ISO / FEM compliant

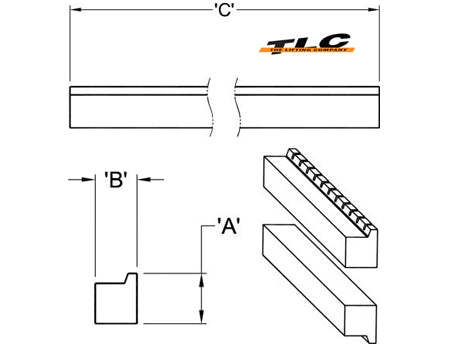

Type	ISO / FEM	Class Bar Size (mm)			Weight per pair (kg)
Type	ISO / FEM	A	B	C	Weight per pair (kg)
FCB2-102-P	Class 2	60	50	1020	41
FCB3-102-P	Class 3	70	50	1020	49
FCB4-160-P	Class 4	150	50	1600	188
