FBT-SH Forward Bulk Bin Tipper Hydraulic

FBT-SH Forward Bulk Bin Tipper Hydraulic

No review yet. Write Review
Regular price $0.00
Product Code

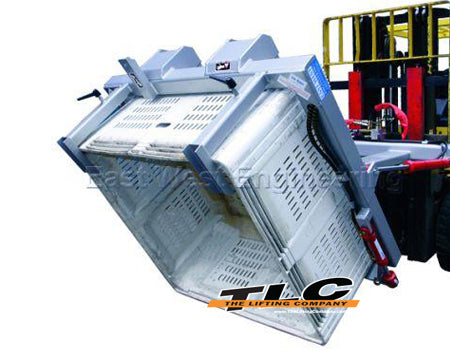

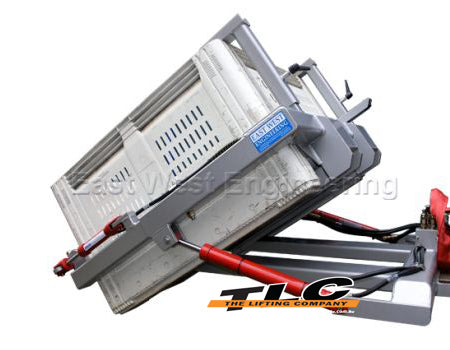

Hydraulic Forward Bulk Bin Tipper FBT-SH

The type FBT-SH Forward Bin Tipper is ideal for handling and emptying bins in agricultural and manufacturing industries. This Forklift slip-on attachment requires only a single hydraulic function. A purpose built hydraulic sequencing valve eliminates the potential to drop the bin (rotation will not commence until the bin is correctly restrained), while the gentle action of the clamp arms prevents damage
to the bins. The standard unit will suit bins up to 1200mm square, with a height range of 675 to 925mm.

Non standard size and capacity attachments can be manufactured.


• Safe Working Load (SWL) 1000kg
• Unit Weight 290kg
• Load Centre 880mm
• Lost Load 300mm
• Pocket Size 155 x 55
• Pocket Centres 540mm
• Horizontal C of G 600mm
• Vertical C of G 75mm

The Lifting Company (TLC) is a Western Australian owned and operated company, which was formed in 2001 to provide specialised Lifting, Rigging, Height Safety, Material Handling products and services to Perth’s construction, mining, industrial, and engineering sectors.

TLC is committed to achieving the highest standards of excellence in its products, services and personnel. It strives to be the most reputable and reliable product and service provider in the lifting, rigging and height safety industry.

The Lifting Company is proud to have a dedicated core team of specialists with capability to design, engineer, manufacture, test and certify quality lifting, rigging and height safety equipment.
