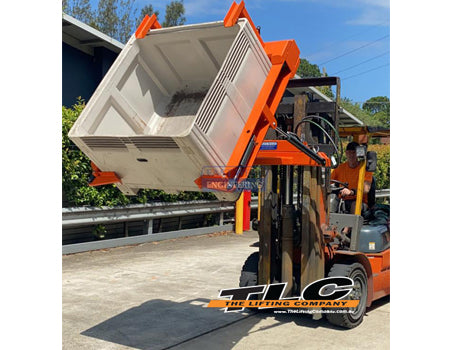

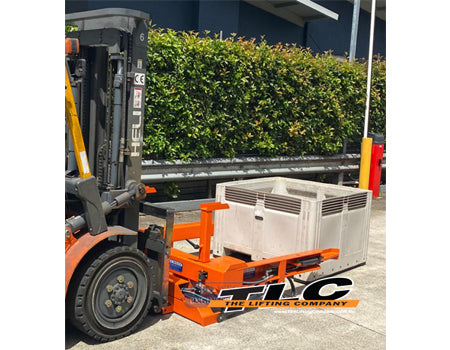

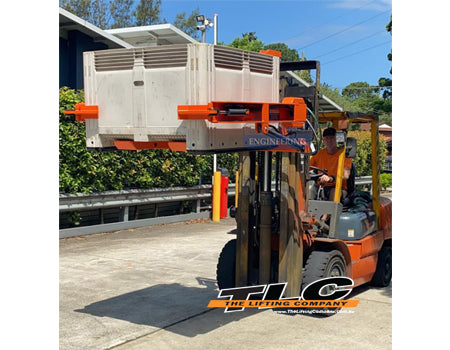

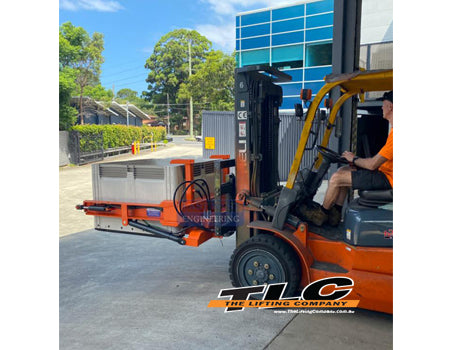

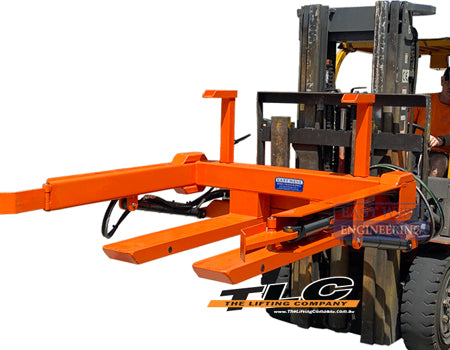

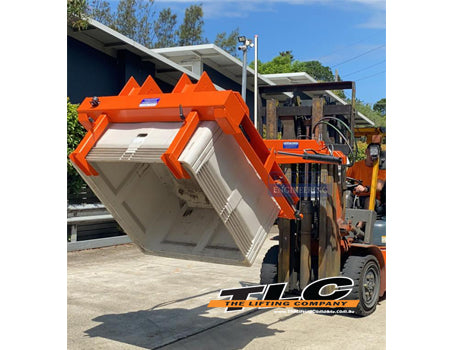

FBT Hydraulic Forward Bin Tipper
The FBT-SM & FBT-FH Hydraulic Forward Bulk Bin Tippers are designed for handling and emptying mega bins.
FEATURES:
• Allows handling and tipping of mega bins and timber produce bins - full or empty
• Suits mega bins up to 1200mm square, with a height range of 700-900mm
• FBT-SM includes a hydraulic sequence valve reducing the risk of dropping the bin as rotation only commences after bin is clamped
• FBT-FH is best suited for fast and high-volume tipping
• Wide clamp arms limit bin damage
• Slip-on attachment allows quick connection to a forklift
• Ideal for use in the fresh produce industry
• Enamel paint finish
SPECIFICATIONS:
| Working Load Limit (WLL) | 1000kg |
| Rotation Angle | 124° |
| Unit Weight | 350kg |
| Fork Pocket Size | 155 x 55mm |
| Fork Pocket Centres | 540mm |
 |
* Type FBT-SM requires one hydraulic function
* Type FBT-FH requires two hydraulic functions |
