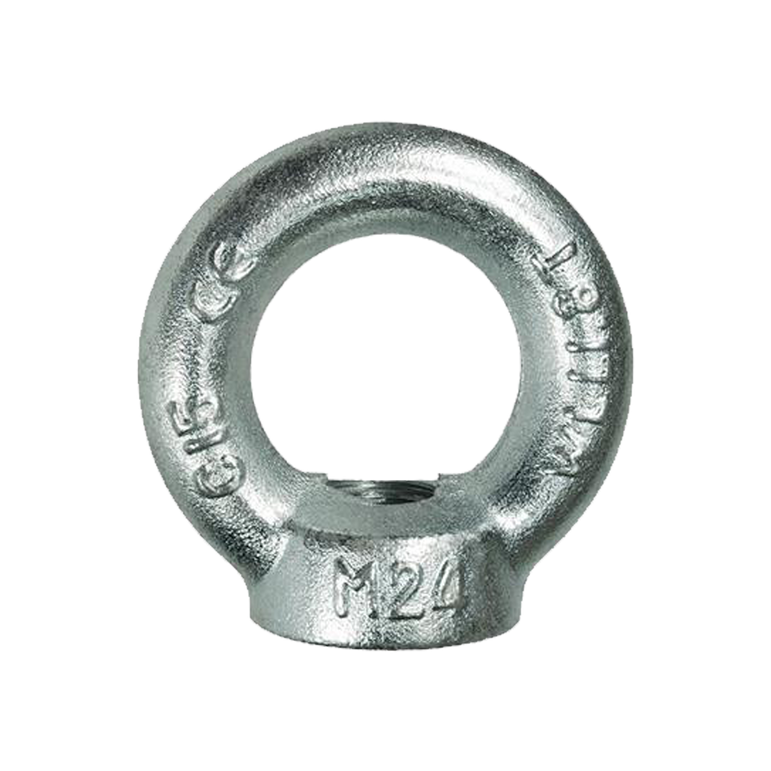

Eyenut – Galv/Zinc


SIZE(mm)	CODE	PITCH(mm)	WLL (T)	Wt.(kg)	DIMENSIONS (mm)
SIZE(mm)	CODE	PITCH(mm)	WLL (T)	Wt.(kg)	D	D1	D2	H	W
M6	602006	1.00	0.07	0.055	6	20	20	36	36
M8	602008	1.25	0.14	0.06	8	20	20	36	36
M10	602010	1.50	0.23	0.1	10	25	25	45	45
M12	602012	1.75	0.34	0.19	12	30	30	53	54
M16	602016	2.00	0.70	0.31	16	35	35	62	63
M20	602020	2.50	1.20	0.45	20	40	40	71	72
M22	602022	2.50	1.50	0.68	22	45	45	80.5	81
M24	602024	3.00	1.80	0.72	24	50	50	90	90
M27	602027	3.00	2.50	1.16	27	50	50	97	90
M30	602030	3.50	3.60	1.7	30	65	65	109	108
M36	602036	4.00	5.10	20	36	75	75	128	126
M42	602042	4.50	7.00	3.0	42	85	85	147	144
M48	602048	5.00	8.60	5.1	48	100	100	168	168

WORKING LOAD LIMIT FOR EYE BOLTS/NUTS(T)
SIZE	SINGLE EYE BOLT/NUTS		PAIR OF EYE BOLTS/NUTS
SIZE	AXIAL	SIDE 90°	VERTICAL PAIR	30° ANGLE	60° ANGLE	90° ANGLE

M6	0.09/0.07	0.018	0.035	0.088	0.056	0.035
M8	0.14	0.035	0.07	0.176	0.112	0.07
M10	0.23	0.058	0.115	0.29	0.184	0.115
M12	0.34	0.085	0.17	0.428	0.272	0.17
M16	0.70	0.175	0.35	0.882	0.56	0.35
M20	1.20	0.3	0.6	1.512	0.96	0.6
M22	1.50	0.375	0.75	1.89	1.2	0.75
M24	1.80	0.45	0.9	2.268	1.44	0.9
M27	2.50	0.625	1.25	3.15	2.0	1.25
M30	3.60	0.9	1.8	4.536	2.88	1.8
M36	5.10	1.275	2.55	6.426	4.08	2.55
M42	7.00	1.75	3.5	8.82	5.6	3.5
M48	8.60	2.15	4.3	10.836	6.88	4.3
M56	11.50	2.875	5.75	14.49	9.2	5.75
