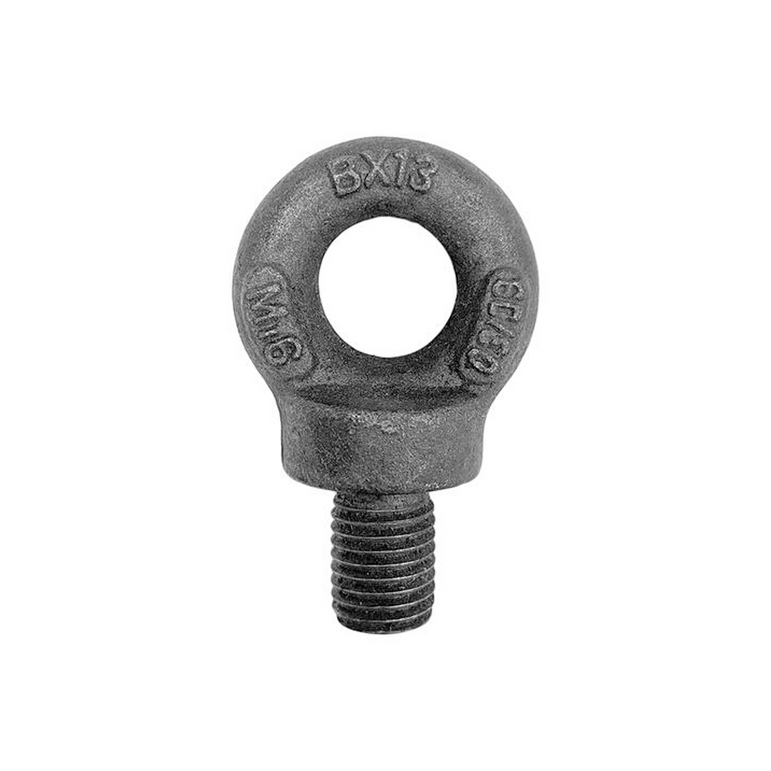

Eye Bolt BS4278 Black (Metric Thread)

No review yet. Write Review

$0.00

Size

M8 M10 M12 M16 M20 M24 M30

InStock SOLD OUT

Description

Eye Bolt BS4278 10mm Black 0.25T

SIZE(mm)	CODE		PITCH(mm)	SWL(T)	Wt.(kg)	DIMENSIONS (mm)
SIZE(mm)	ZINC	BLACK	PITCH(mm)	SWL(T)	Wt.(kg)	D	D1	D2	H	H1	W
M8	603008		1.25	0.15	0.06	8	13	20	31	16	28
M10	603010	603010B	1.50	0.25	0.07	10	14	22	35.5	18	29
M12	603012	603012B	1.75	0.40	0.127	12	15	22	40.5	18	41
M16	603016	603016B	2.00	0.80	0.258	16	20	29	53	23	54
M20	603020	603020B	2.50	1.60	0.44	20	27	40	68	32	64
M24	603024		3.00	2.50	1.04	24	35	52	87.5	40	83
M30	603030		3.50	4.00	1.975	30	44	65	109.5	51	103
* B = Black Color available
