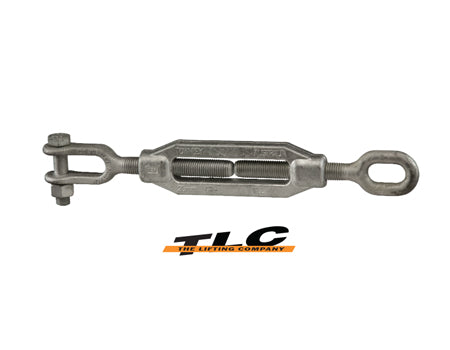

Clevis & Eye Turnbuckles

Clevis & Eye Turnbuckles

Clevis & Eye Turnbuckles

No review yet. Write Review

$0.00

Description

AS2319 – 2001
6:1 Safety Factor
Grades L, P & S
Tested and Certified
Galvanized
Manufactured using only heat certified Australian Steel (AS1442/AS1444)

Available on Request:

Lock Nuts

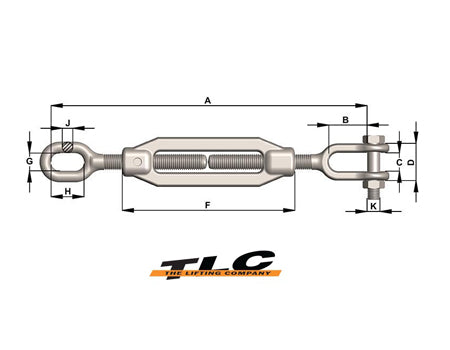

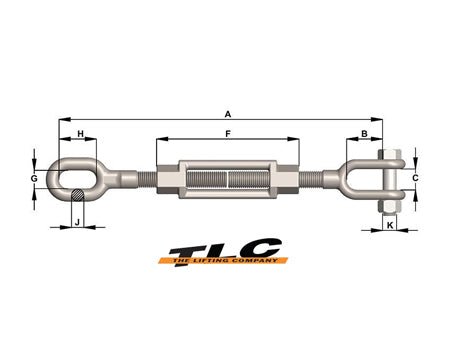

Grade L	0.3	M10	235	340	30	14	30	150	11	21	7	10	0.3	TBCEL10
Grade L	0.5	M12	330	470	36	15	35	190.5	15	30	9	10	0.7	TBCEL12
Grade L	0.75	M16	355	490	45	20	40	204	17	36	12	12	1.5	TBCEL16
Grade L	1.25	M20	390	520	55	22	46	215.5	21	42	14	16	2.5	TBCEL20
Grade L	2.5	M24	445	580	69	30	58	232	25	51	17	20	4	TBCEL24
Grade L	5	M33	643	793	78	38	76	252	33	70	24	24	7.5	TBCEL33
Grade L	5	1.25	525	690	70	38	N/A	255	33	67	22	25	7.11	TBCEL1250
Grade L	6	1.5	570	740	70	48	N/A	275	38	72	25	32	11.62	TBCEL1500
Grade P	0.6	M10	235	340	30	14	30	150	11	21	7	10	0.3	TBCE10P
Grade P	1	M12	330	470	36	15	35	190.5	15	30	9	10	0.7	TBCE12P
Grade P	1.6	M16	355	490	45	20	40	204	17	36	12	12	1.5	TBCE16P
Grade P	2.5	M20	390	520	55	22	46	215.5	21	42	14	16	2.5	TBCE20P
Grade P	4	M24	445	580	69	30	58	232	25	51	17	20	4	TBCE24P
Grade P	8	M33	643	793	78	38	76	252	33	70	24	24	7.5	TBCE33P
Grade S	0.8	M10	235	340	30	14	30	150	11	21	7	10	0.3	TBCE10S
Grade S	1.2	M12	330	470	36	15	35	190.5	15	30	9	10	0.7	TBCE12S
Grade S	2	M16	355	490	45	20	40	204	17	36	12	12	1.5	TBCE16S
Grade S	3.2	M20	390	520	55	22	46	215.5	21	42	14	16	2.5	TBCE20S
Grade S	5	M24	445	580	69	30	58	232	25	51	17	20	4	TBCE24S
Grade S	10	M33	643	793	78	38	76	252	33	70	24	24	7.5	TBCE33S
