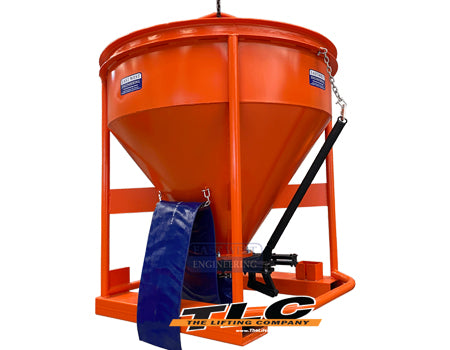

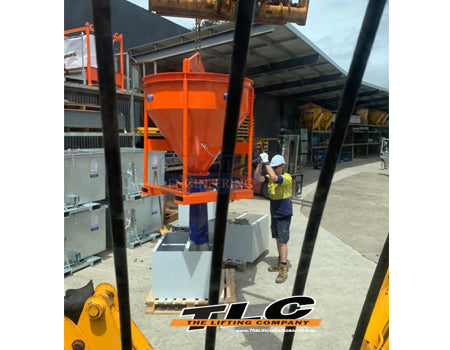

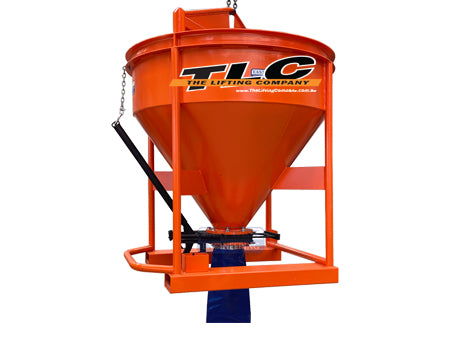

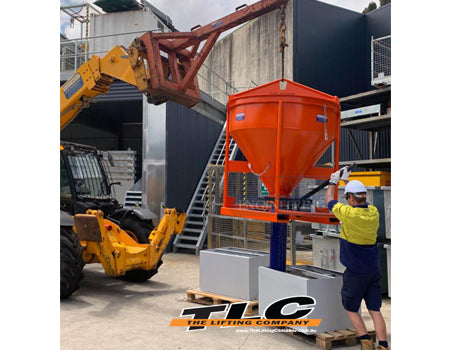

CKSV10 Concrete Kibble - Slide Valve
The CKSV10 Concrete Kibble is designed for the easy transfer of concrete or similar materials on-site by overhead crane.
FEATURES:
• Suits use with concrete
• Ideal for filling wall cavities, columns and other confined spaces

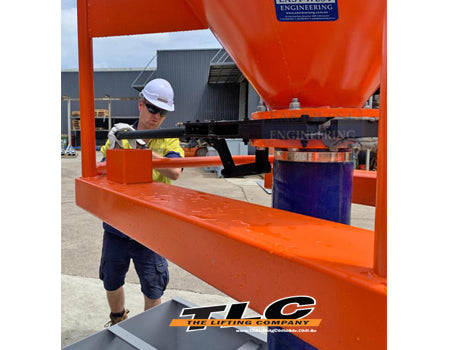

• Lever actuated slide valve allows operator to regulate concrete flow

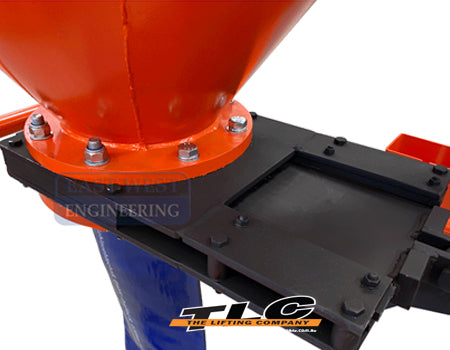

• 200mm diameter slide valve allows precise control over the concrete flow
• 1.5m long, 200mm diameter ‘Lay Flat’ hose fitted
• Fork pockets and crane lugs fitted for transport around the work site
• Smooth interior allows easy discharge and fast cleaning
• Enamel paint finish
SPECIFICATIONS:
| Working Load Limit (WLL) | 3000kg |
| Capacity | 1.0 cu.m |
| Transport Dimensions | 1450 x 1450 x 1840mm |
| Unit Weight | 295kg |
| Fork Pocket Size | 185 x 60mm |
| Fork Pocket Centres | 870mm |
