CFM2439 Crane/Forklift Spreader Beam – Medium
| Product | Code |
|---|---|
| Crane/Forklift Spreader Beam | CFM2439 |

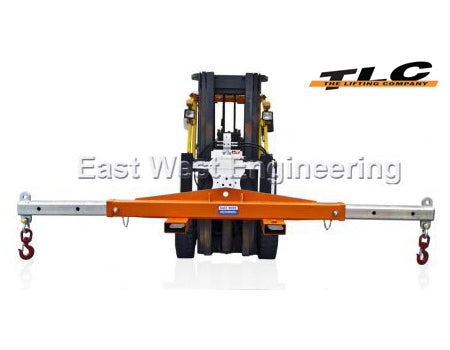

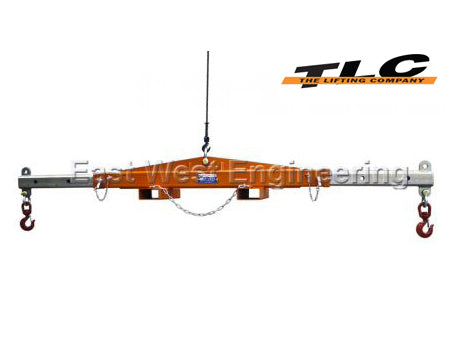

The type CFM-2439 Spreader Beam is a unique multitasking beam which can be used by crane or forklift to lift long loads. Using a crane, loads can be lifted via the centre single hook point (as a lifting beam), or end lifted using a 2 leg chain sling (as a spreader beam). If lifting by forklift, the 600mm long slipper pockets allow for fast and safe connection.
The Spreader Beam load connection points are adjustable to 3 positions by moving the extendable arms each end. Both extendable arms are locked into position via safety pins. The unit is supplied standard with two safety swivel hooks. The extendable arms are zinc plated with the main body painted in ‘safety orange’.
The unit is fully Third Party certified to the relevant Australian Standards.
SPECIFICATIONS:
- Rated Capacity (RC Max.): 10,000kg
- Load Centre (LC): 3900mm
- Unit Weight: 260kg
- F/Lift HCG: 300mm
A full product specification sheet is available on pdf scroll below
|
RATED CAPACITY (RC) WHEN USED AS A: |
FULLY RETRACTED |
MIDDLE POSITION |
FULLY EXTENDED |
| FORKLIFT ATTACHMENT |
5600 kg |
2900 kg |
1400 kg |
| LIFTING BEAM |
6000 kg |
4500 kg |
2400 kg |
| SPREADER BEAM |
10,000 kg |
10,000 kg |
10,000 kg |
