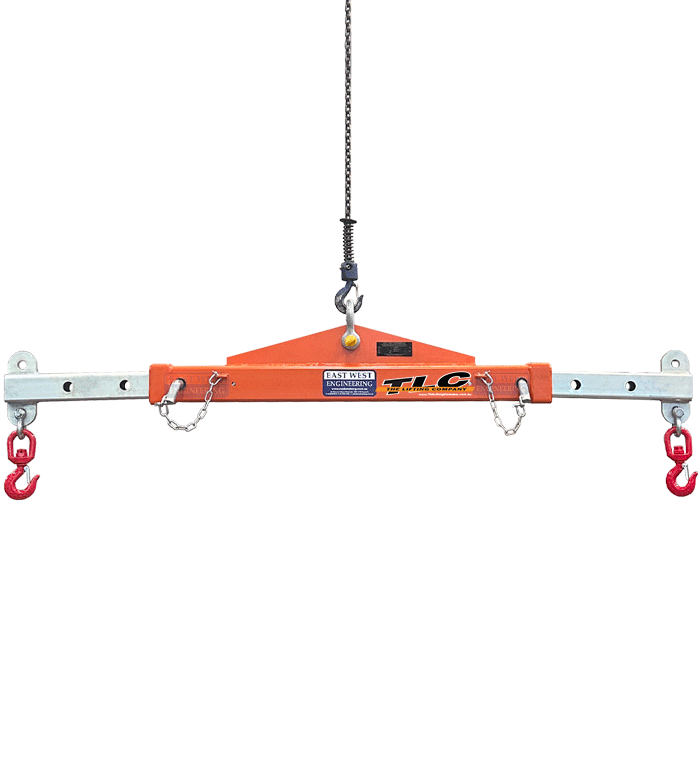

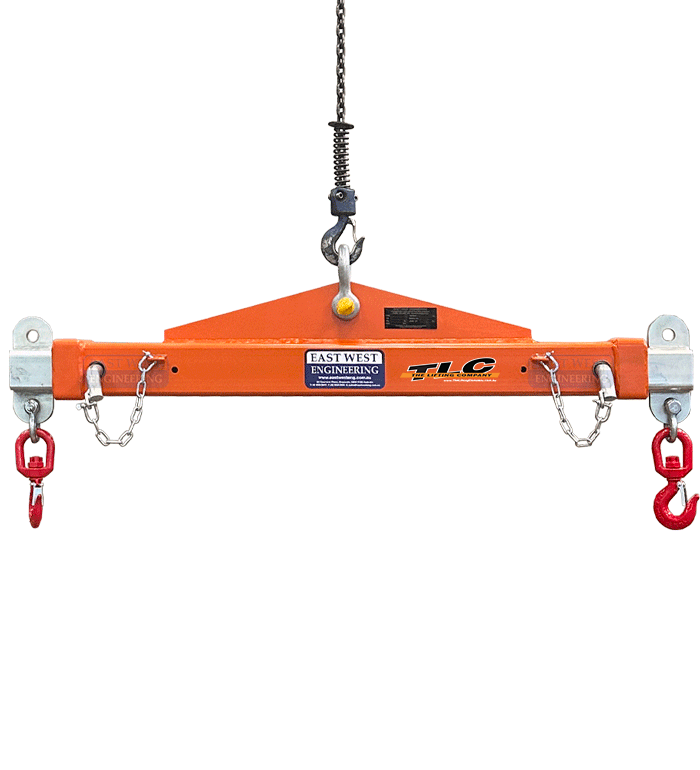

CEXL1218 Spreader Beam (5T - Short)
The CEXL1218 Crane Spreader Beam is designed to lift long loads via the centre single hook point (as a Lifting Beam), or end lifted using a 2 leg chain sling (as a Spreader Beam) by overhead crane.
FEATURES:
• Multi-tasking beam can be used as a Lifting Beam or Spreader Beam
• Load connection points are adjustable to 3 positions by moving the extendable arms
• 1200, 1500 & 1800mm load centres
• Safety pins used to securely lock extendable arms in position
• Supplied standard with 2 safety swivel hooks
• Certified to the relevant Australian Standards
• Zinc finish on extendable arms, enamel paint finish on main body
 |
Rated Capacity (RC) |
Unit Weight (kg) |
|||
| when used as |
Fully Retracted (LC@1200mm) |
Middle Position (LC@1500mm) |
Fully Extended (LC@1800mm) |
||
| Length |
1275mm | 1575mm |
1875mm |
||
| Lifting Beam | 3000kg |
2000kg | 1000kg | 55 | |
| Spreader Beam | 5000kg |
5000kg |
5000kg | ||
 |
EAST WEST ENGINEERING ARE THE DESIGNER OF THIS PRODUCT AND HAVE PROOF OF CONFORMANCE TO AUSTRALIAN STANDARDS AND CERTIFICATION. BEWARE OF COPY PRODUCTS
|
