CEM2439 Spreader Beam (Medium)

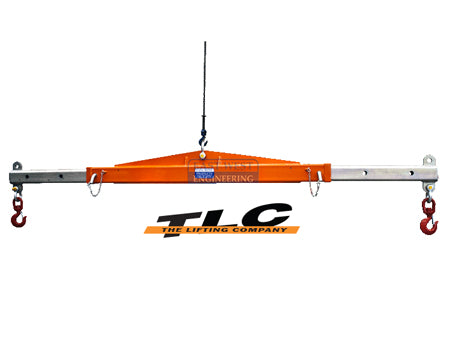

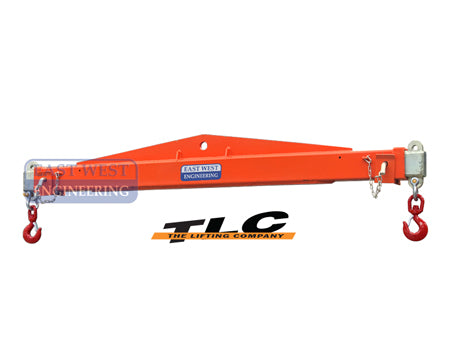

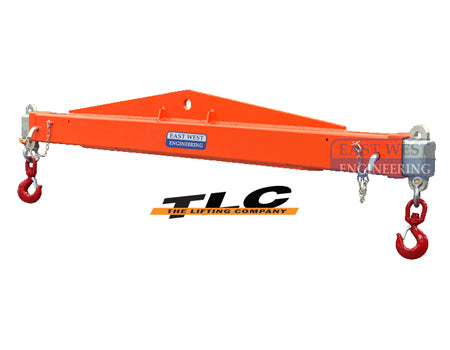

The CEM2439 Crane Spreader Beam is designed to lift long loads via the centre single hook point as a ‘Lifting Beam’, or end lifted using a 2 leg chain sling as a ‘Spreader Beam’ with a truck mounted or overhead crane.
FEATURES:
• Multi-tasking spreader beam
• Used as a ‘Lifting Beam’ by using the centre hook point
• Used as a ‘Spreader Beam’ when using the end hooks with a 2 leg chain sling

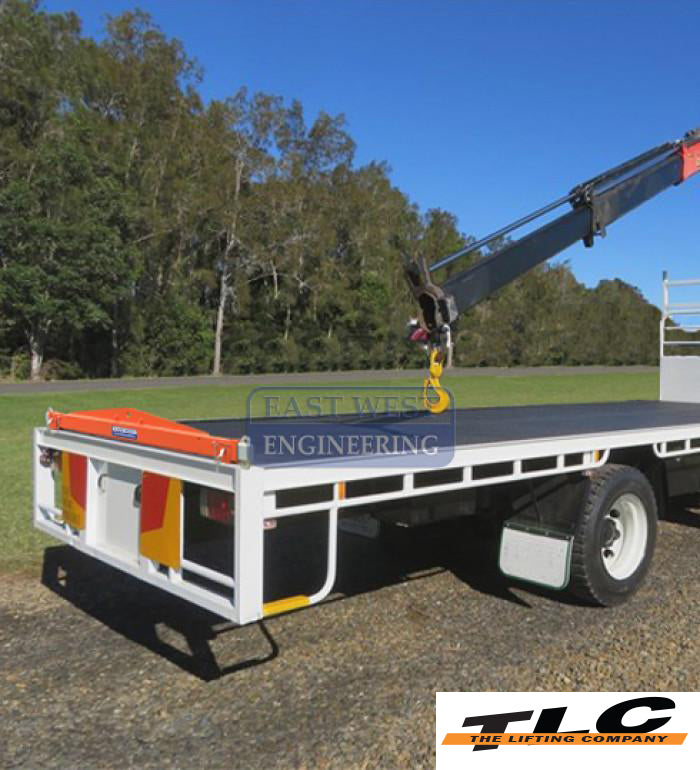

• Retaining saddle brackets supplied for storage on truck trays
• Load connection points are adjustable to 3 positions

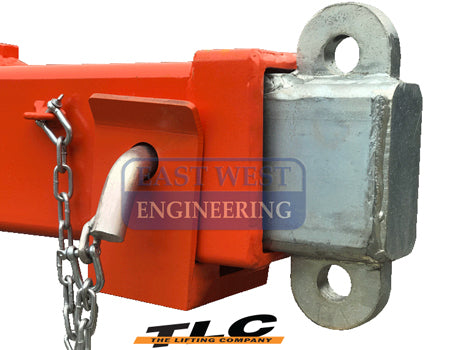

• Safety pins used to securely lock extendable arm in position
• Fitted with 2 safety swivel hooks
• Third party certified to the relevant Australian Standards
• Zinc finish on extendable arms, enamel paint finish on main body
| Model | Rated Capacity (RC) | Unit Weight (kg) |
||||
| when used as | Fully Retracted (LC@2380mm) |
Middle Position (LC@3140mm) |
Fully Extended (LC@3900mm) |
|||
| Length | 2500mm | 3260mm | 4020mm | |||
| CEM2439 | Lifting Beam | 6000kg | 4500kg | 2400kg | 218 | |
| Spreader Beam | 10,000kg | 10,000kg | 10,000kg | |||
