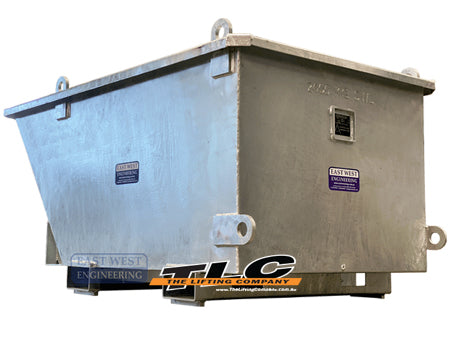

CB20 Crane Bin
The CB20 Crane Bin is a heavy duty crane and forklift bin, suitable for collection and easy disposal of site waste including sand, gravel, excavation waste and scrap metal or transporting heavy loads around site such as rebar deliveries.
FEATURES:
• Heavy duty construction suits waste and heavy loads in manufacturing and construction sites

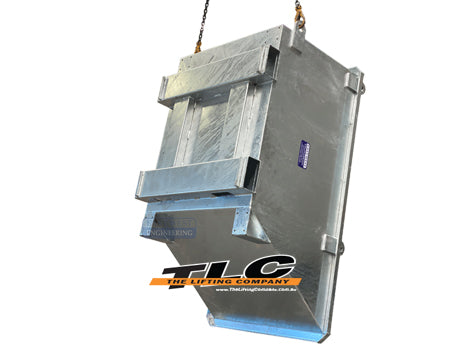

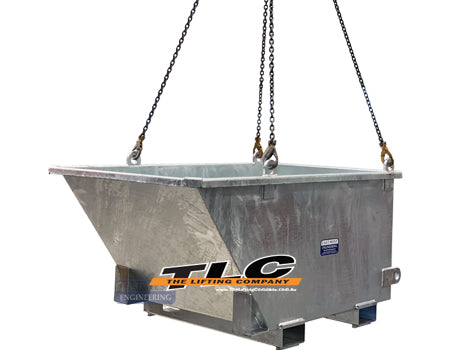

• Crane lugs for both lifting and upending load
• 4-way entry fork pockets

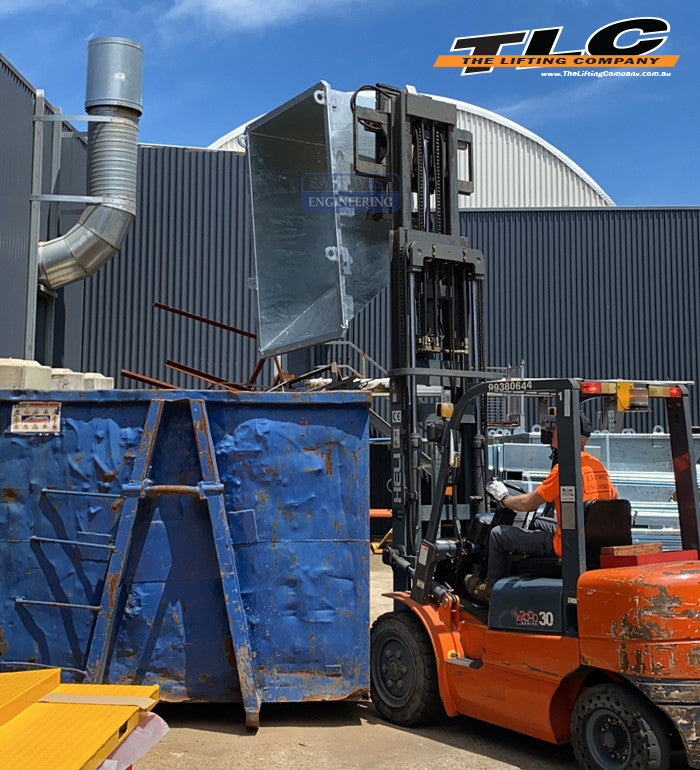

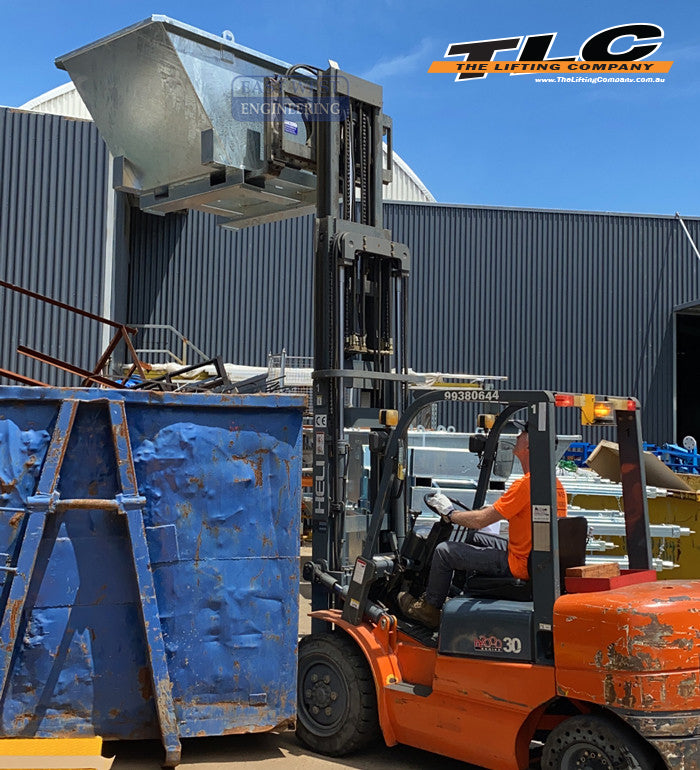

• Side pockets designed to allow emptying by a forklift with rotator fitted

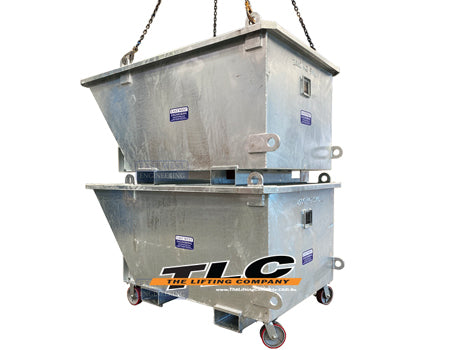

• Stacks 3 high full, reducing storage space on site and in transport
• Removable drain plug fitted standard
• Optional wheel kit (2 swivel, 2 fixed 150mm dia wheels) on request
• Galvanised finish
SPECIFICATIONS:
|
Load Capacity | 1.25cu.m |
| Working Load Limit (WLL) | 2000kg | |
| O/All Dimensions | 1925 (l) x 1170 (w) x 1010mm (h) | |
| Unit Weight | 310kg | |
| Fork Pocket Size | 185 x 90 / 155 x 55mm | |
| Fork Pocket Centres | 725 / 600mm |
