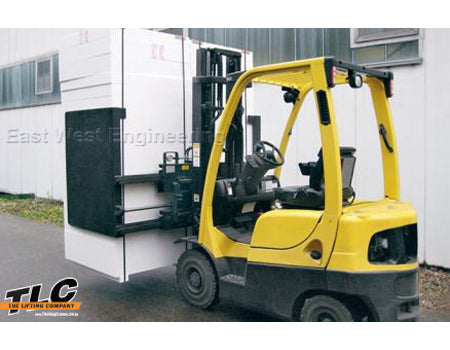

Carton Clamp
| Product | Code |
|---|---|
| Carton Clamp C2 SWL1250kg | S16-GFK-15 |
Carton clamps and appliance clamps are used for handling pressure-sensitive and large-surface goods. Frequent applications are the handling of “white” and “brown” goods, i.e. household appliances and consumer electronic equipment as well as other large-surface goods, such as styrofoam packages. Depending on the application, one arm is oscillating. The rubber-coated pressure pads distribute the clamping pressure evenly over the entire surface of the goods. Thin pressure pads also allow optimal use of storage and loading space.
|
Model |
Clamp Capacity @ Load Centre |
Mounting Class |
Carriage Width |
Opening range ITI |
Arm Size |
Weight |
Lost Load |
Horizontal Centre of Gravity |
|
(kg@mm) |
(mm) |
(mm) |
(mm) |
(kg) |
(mm) |
(mm) |
||
|
S16-GFK-15 |
1500@500 |
II |
1140 |
500-1800 |
1000X1000 |
580 |
155 |
310 |
|
S16-KK08 |
800@500 |
II |
950 |
530-1630 |
700X1000 |
480 |
195 |
215 |
|
S16-KK15 |
1500@500 |
II |
1140 |
520-1740 |
700X1000 |
525 |
195 |
220 |
