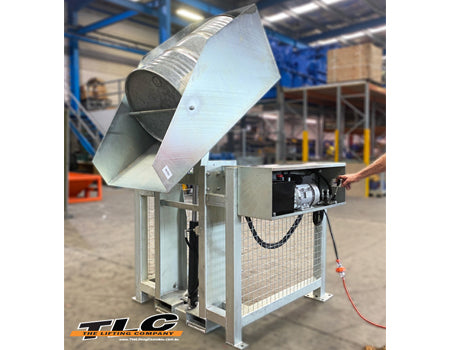

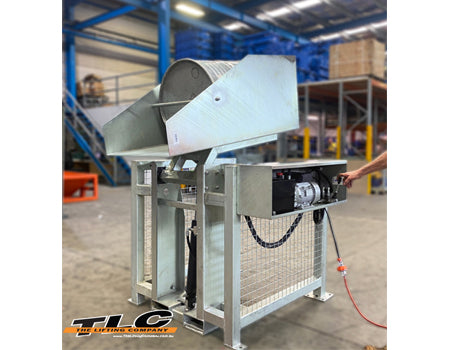

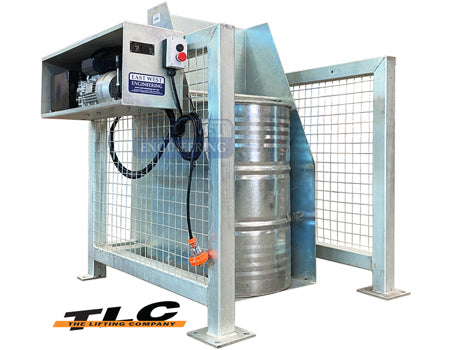

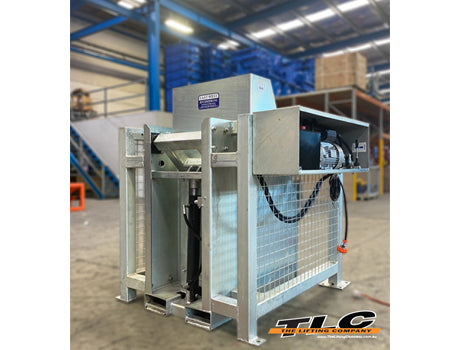

BKN60 Floor Mounted Drum Tipper

BKN60 Floor Mounted Drum Tipper

BKN60 Floor Mounted Drum Tipper

BKN60 Floor Mounted Drum Tipper

No review yet. Write Review

$0.00

Description

The BKN60 Floor Mounted Drum Tipper is designed to allow safe and effortless tipping of drums.

FEATURES:
• Allows for 130 degree rotation of a standard 205L drum
• Suitable for forklift or hand pallet trolley bin loading
• Operated by hydraulic lever
• Supplied with side safety barriers
• Hydraulic power pack, 240-volt, 2.2kw
• Can be customised to suit any application or drum type on request
• Tipping height approx. 1m above floor
• 20 second full tipping cycle
• Stainless steel cradle available on request
• Zinc finish

SPECIFICATIONS:

Working Load Limit (WLL)	600kg
Rotation	130°
Overall Dimensions	1360 x 1255 x 1400mm
Unit Weight	350kg
Fork Pocket Size	185 x 60mm
Fork Pocket Centres	350mm
