APV100 Pipe Trolley

APV100 Pipe Trolley

No review yet. Write Review
Regular price $0.00

The APV100 Pipe Trolley is designed to safely store and transport long length materials such as pipe, scaffolding and conduit on site and is sized to fit through a standard doorway. These mobile storage solutions increase worker productivity by keeping materials organised and close to work areas.

• 1 tonne capacity

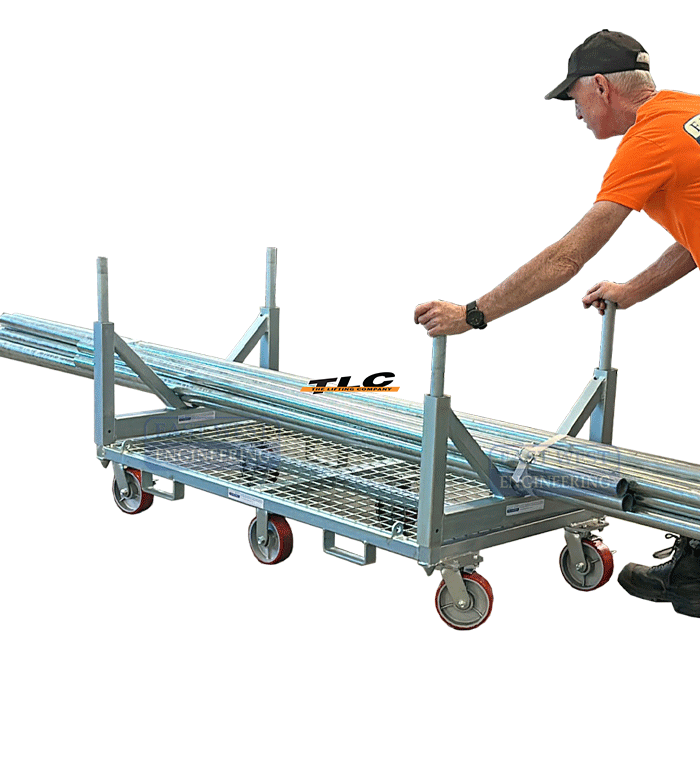

• Suitable to store and transport long materials such as pipe, scaffolding, conduit, tubing & bar stock
• Designed to fit through a standard doorframe for carting of loads on-site

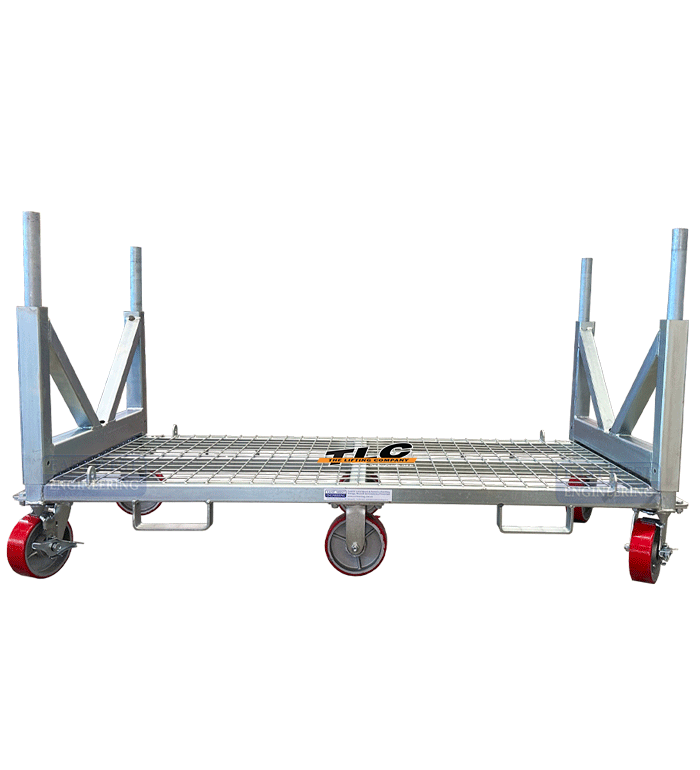

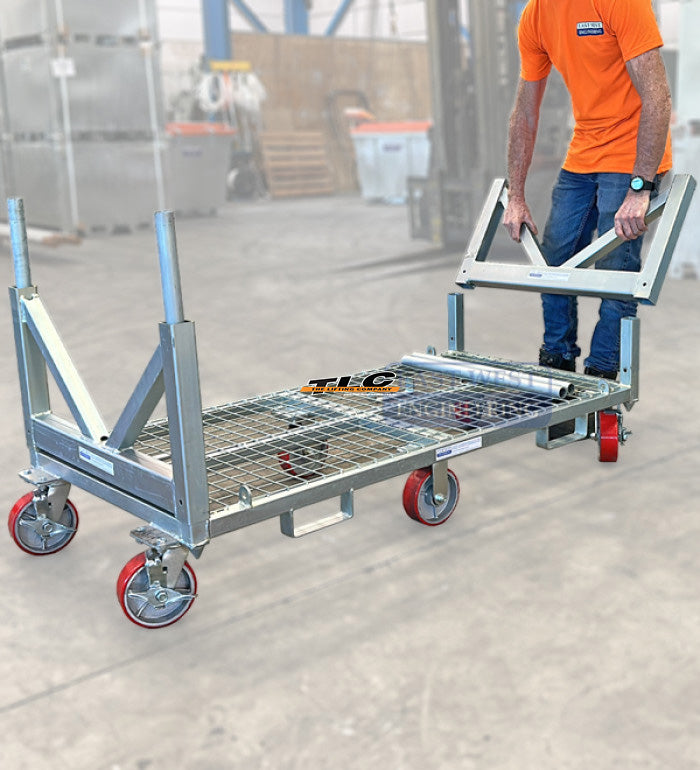

• Removable V Frame for alternative loading requirements

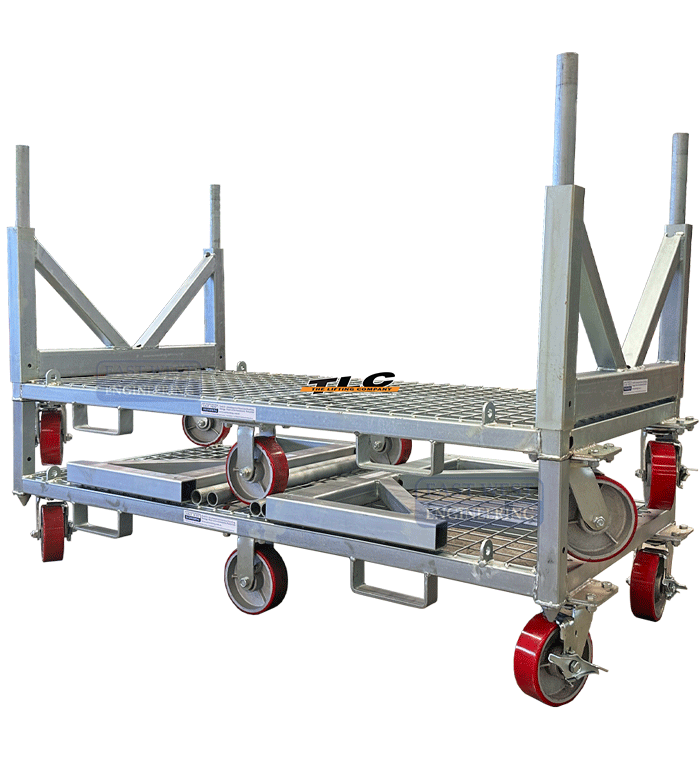

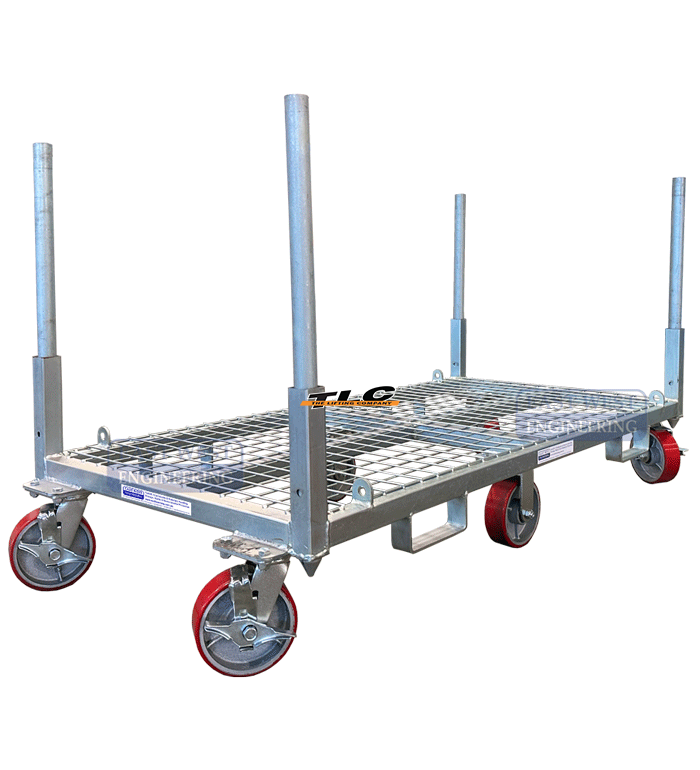

• Removable corner posts supplied to suit higher load sizes
• 6 industrial 150mm poly/cast wheels with brakes for easy manoeuvring around the worksite
• Also available in all terrain model (APV100-AT) for use on rough, uneven ground

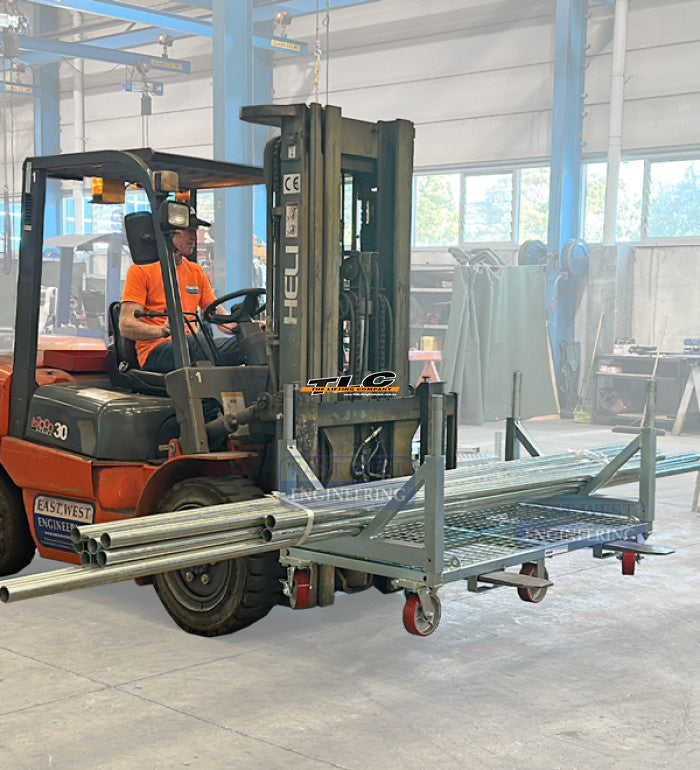

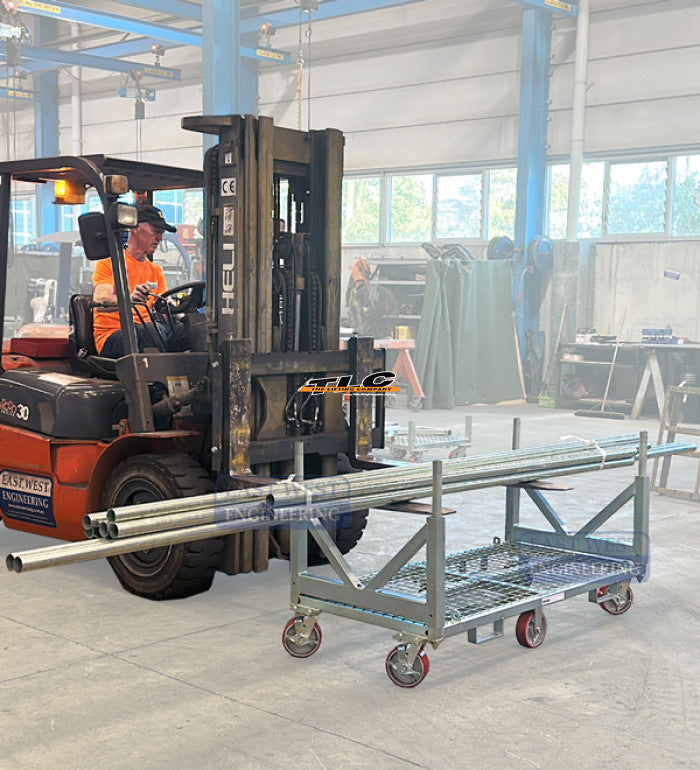

• Fork stirrups allow loaded trolley to be transported around site by forklift
• 4 tie down points for securing load
• Heavy duty construction for maximum stability
• Zinc finish

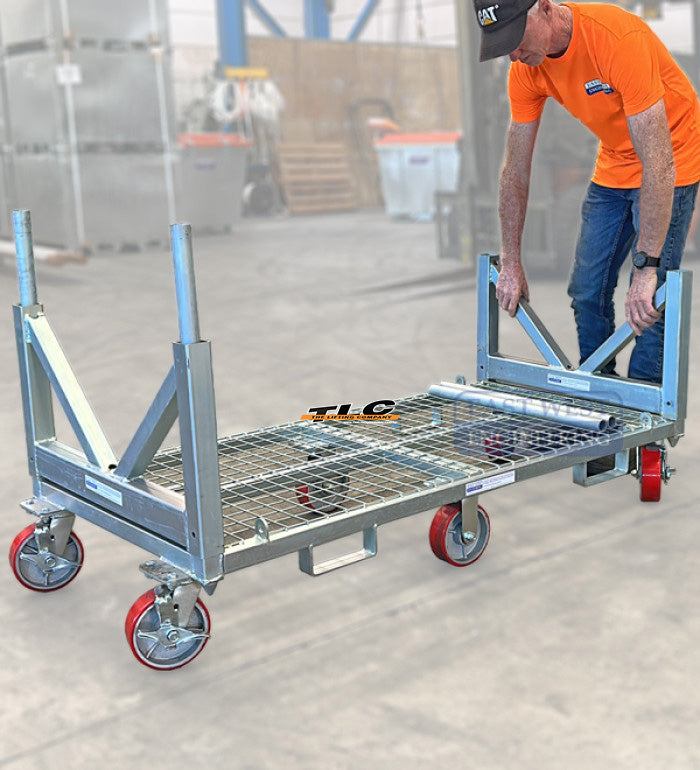

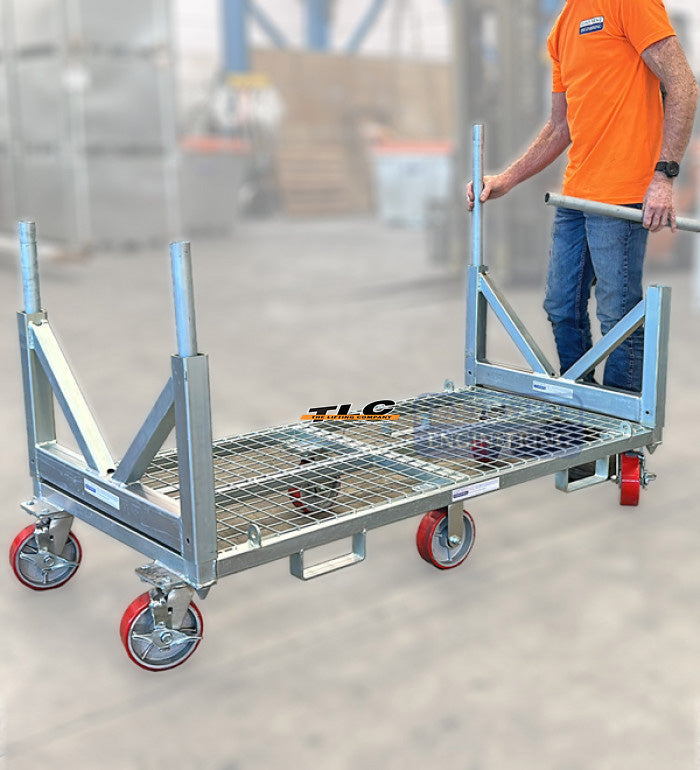

Supplied standard as flatpack (for on-site assembly)

 Working Load Limit (WLL)  1000kg
 Overall Dimensions  1610(l) x 750(w) x 640(h) mm
 Unit Weight  85kg (incl. V-Frame + Corner Posts)
 Fork Pocket Size  155 x 55mm
 Fork Pocket Centres  850mm


Due to transport safety requirements wheels are supplied for fitment onsite, not pre-fit.
