AFT Glass A Frame
The AFT Glass A Frame is designed for storing and transporting glass, stone and other sheet materials by forklift, crane or wheeled manually.
FEATURES:
• Suitable for storing and transporting glass, stone and other sheet materials
• Ideal for use in the factory and when transporting materials to site
• Load is secured by 4 adjustable clamp bars
• Detachable ratchet straps supplied
• Rubber profiles protect the load from damage and help prevent movement

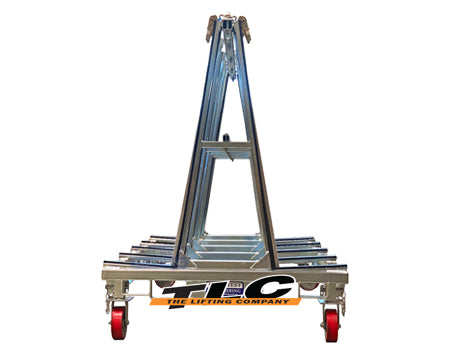

• Heavy duty A Frame construction for maximum stability

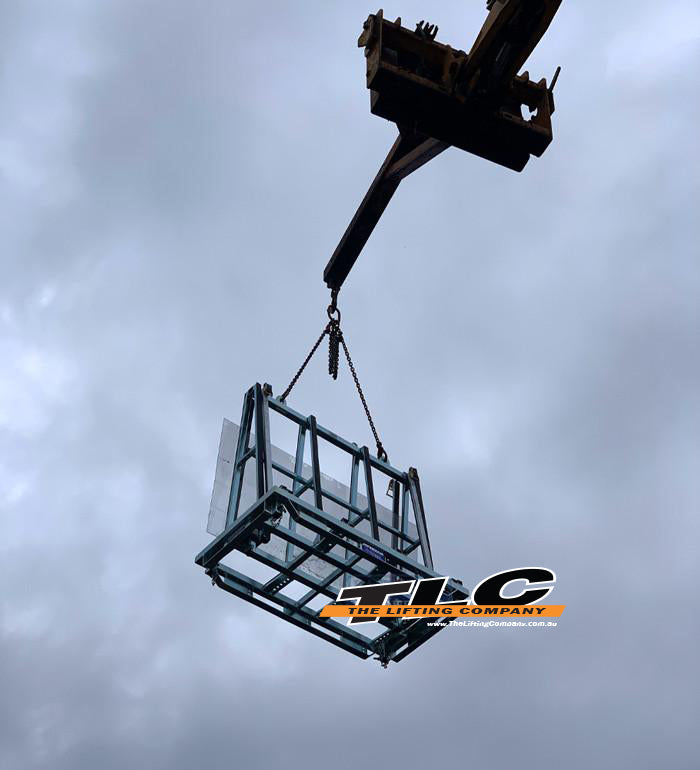

• 4-way fork access and crane lugs fitted for transport by forklift or crane
• 150mm poly wheels with brakes allow easy manoeuvering around the worksite
• Wheel kit is designed for quick release with a provision for storage when not in use

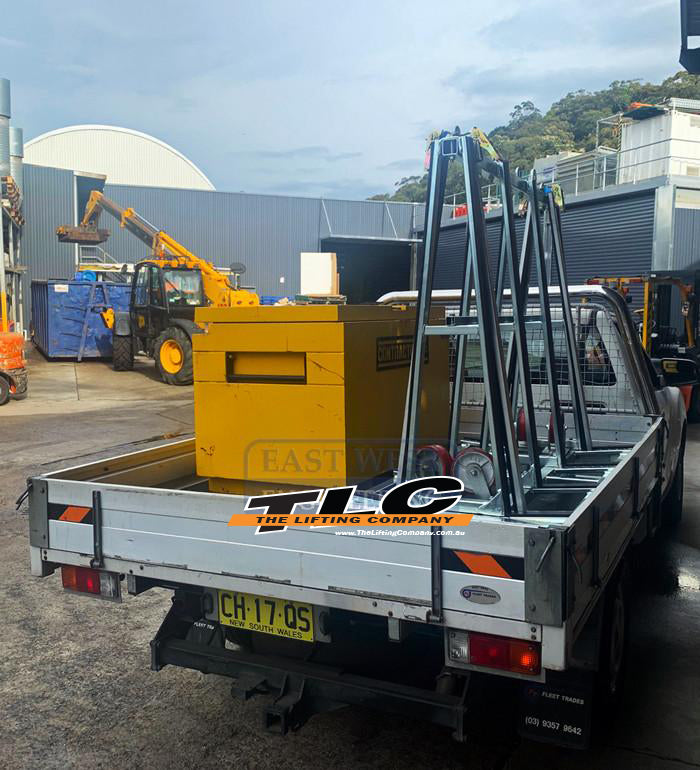

• Frame can be loaded onto the back of a truck by forklift or crane
• High load carrying capacity (1500 & 2000kg models available)

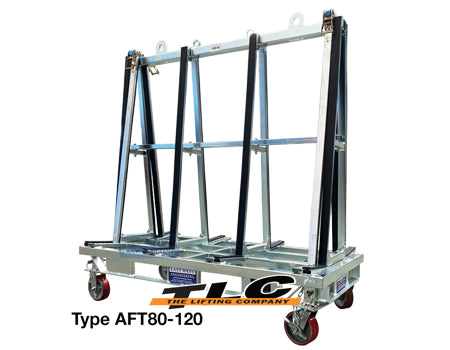

• AFT80-120 base is sized (800mm) to use less space on a ute tray and fit through a standard doorway

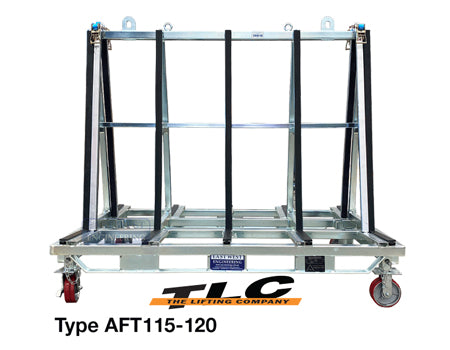

• AFT115-120 base is designed with racking locators to suit storage in highbay racking
• Zinc finish
Supplied standard as flatpack (for on-site assembly).
SPECIFICATIONS:
| Model |
Working Load Limit (kg) |
Overall Dimensions W x D x H* (mm) |
Maximum Load Width** (mm) |
Front Size (mm) |
Front Centres (mm) |
Unit Weight (kg) |
| AFT80-120 | 1500 | 1500 x 800 x 1620 | 215 | 250 x 80 | 450 | 105 |
| AFT115-120 | 2000 | 1800 x 1150 x 1620 | 340 | 250 x 80 | 450 | 130 |
* Height includes wheels
** Maximum width of load that can be stored on each side of trolley
