6×7 Fibre Core

No review yet. Write Review

$0.00

Size

3mm 4mm 5mm 6mm 8mm 9mm 10mm 11mm 12mm 13mm 14mm 16mm 18mm 20mm 22mm 24mm 26mm 28mm 32mm 36mm 40mm

InStock SOLD OUT

Description

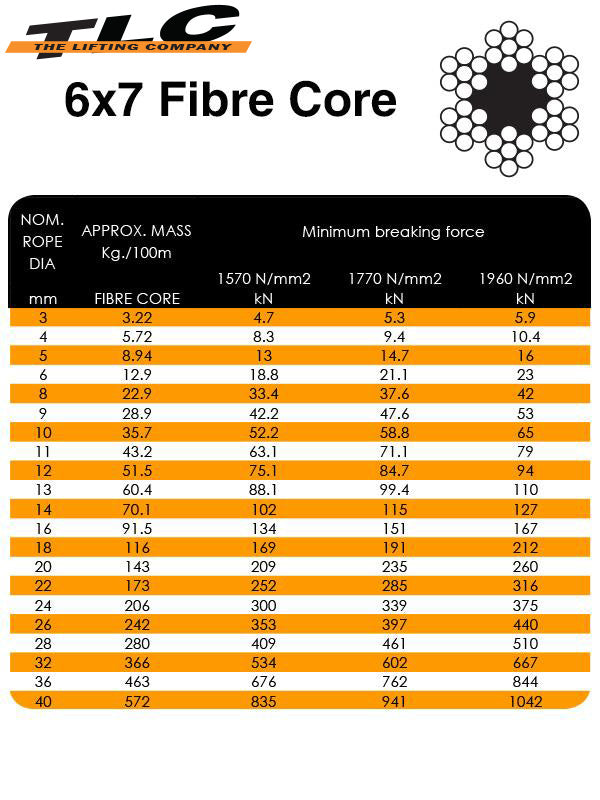

NOM. ROPE DIA	APPROX. MASS Kg./100m	Minimum breaking force
mm	FIBRE CORE	1570 N/mm2 kN	1770 N/mm2 kN	1960 N/mm2 kN
3	3.22	4.7	5.3	5.9
4	5.72	8.3	9.4	10.4
5	8.94	13	14.7	16
6	12.9	18.8	21.1	23
8	22.9	33.4	37.6	42
9	28.9	42.2	47.6	53
10	35.7	52.2	58.8	65
11	43.2	63.1	71.1	79
12	51.5	75.1	84.7	94
13	60.4	88.1	99.4	110
14	70.1	102	115	127
16	91.5	134	151	167
18	116	169	191	212
20	143	209	235	260
22	173	252	285	316
24	206	300	339	375
26	242	353	397	440
28	280	409	461	510
32	366	534	602	667
36	463	676	762	844
40	572	835	941	1042
