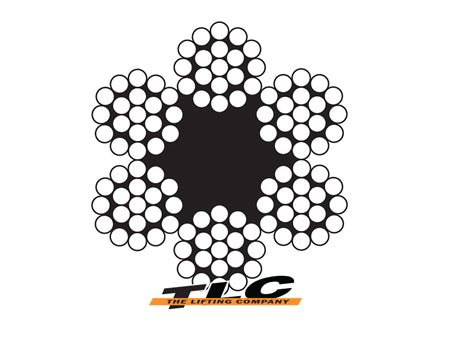

6×19 Fibre Core

No review yet. Write Review

$0.00

Size

6mm 8mm 10mm 12mm 13mm 14mm 16mm 18mm 19mm 20mm 22mm 24mm 25mm 26mm 28mm 30mm 32mm 34mm 36mm 38mm 40mm 42mm 44mm 46mm

InStock SOLD OUT

Description

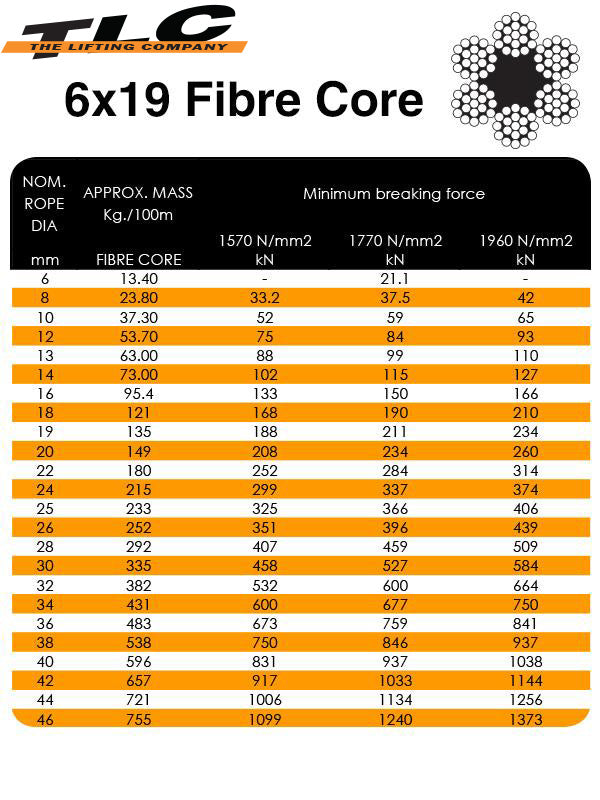

NOM. ROPE DIA	APPROX. MASS Kg./100m	Minimum breaking force
mm	FIBRE CORE	1570 N/mm2 kN	1770 N/mm2 kN	1960 N/mm2 kN
6	13.40	-	21.1	-
8	23.80	33.2	37.5	42
10	37.30	52	59	65
12	53.70	75	84	93
13	63.00	88	99	110
14	73.00	102	115	127
16	95.4	133	150	166
18	121	168	190	210
19	135	188	211	234
20	149	208	234	260
22	180	252	284	314
24	215	299	337	374
25	233	325	366	406
26	252	351	396	439
28	292	407	459	509
30	335	458	527	584
32	382	532	600	664
34	431	600	677	750
36	483	673	759	841
38	538	750	846	937
40	596	831	937	1038
42	657	917	1033	1144
44	721	1006	1134	1256
46	755	1099	1240	1373
