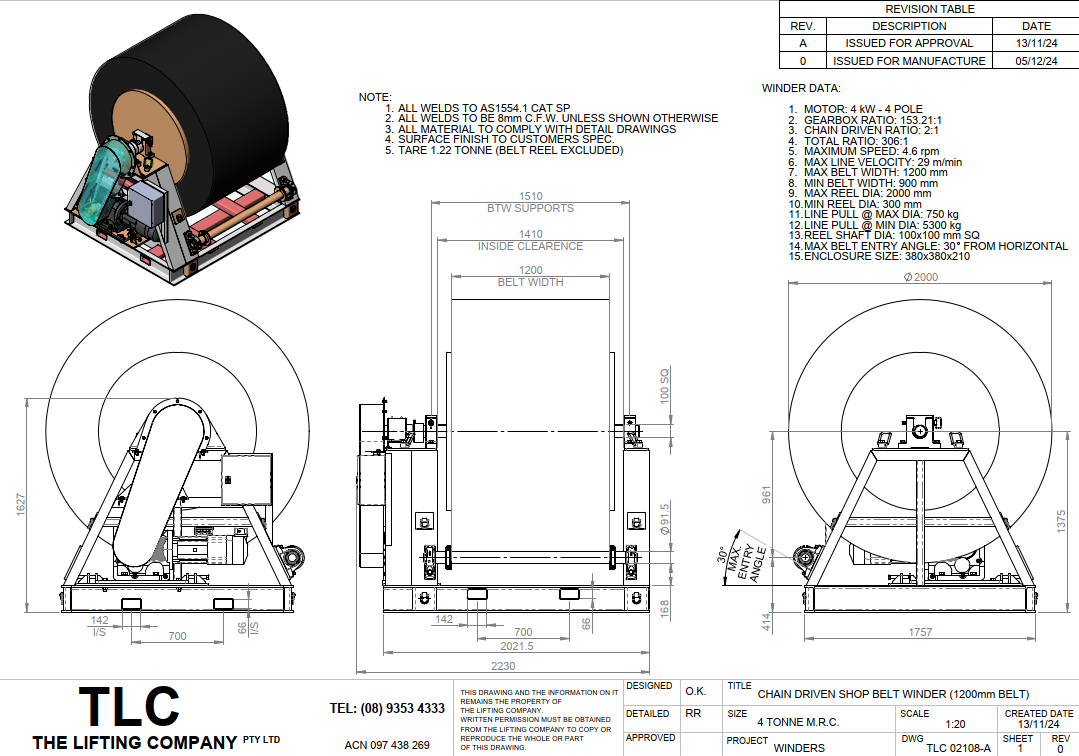

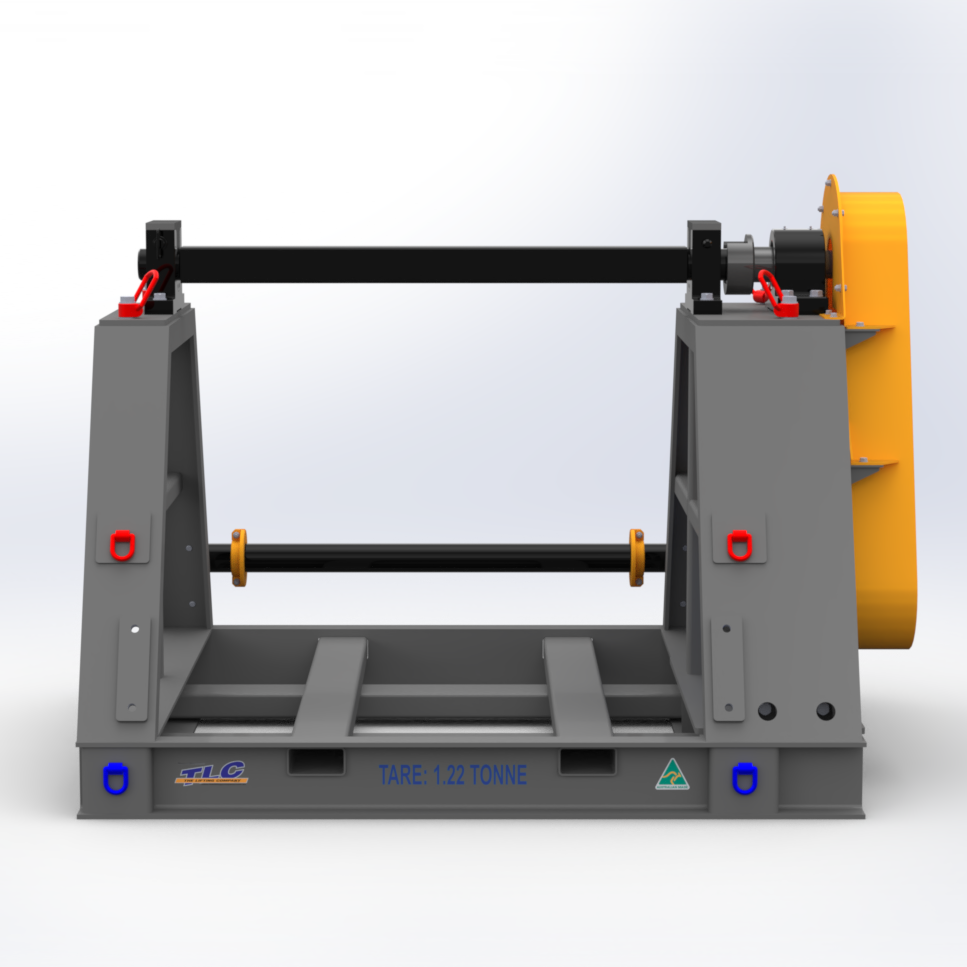

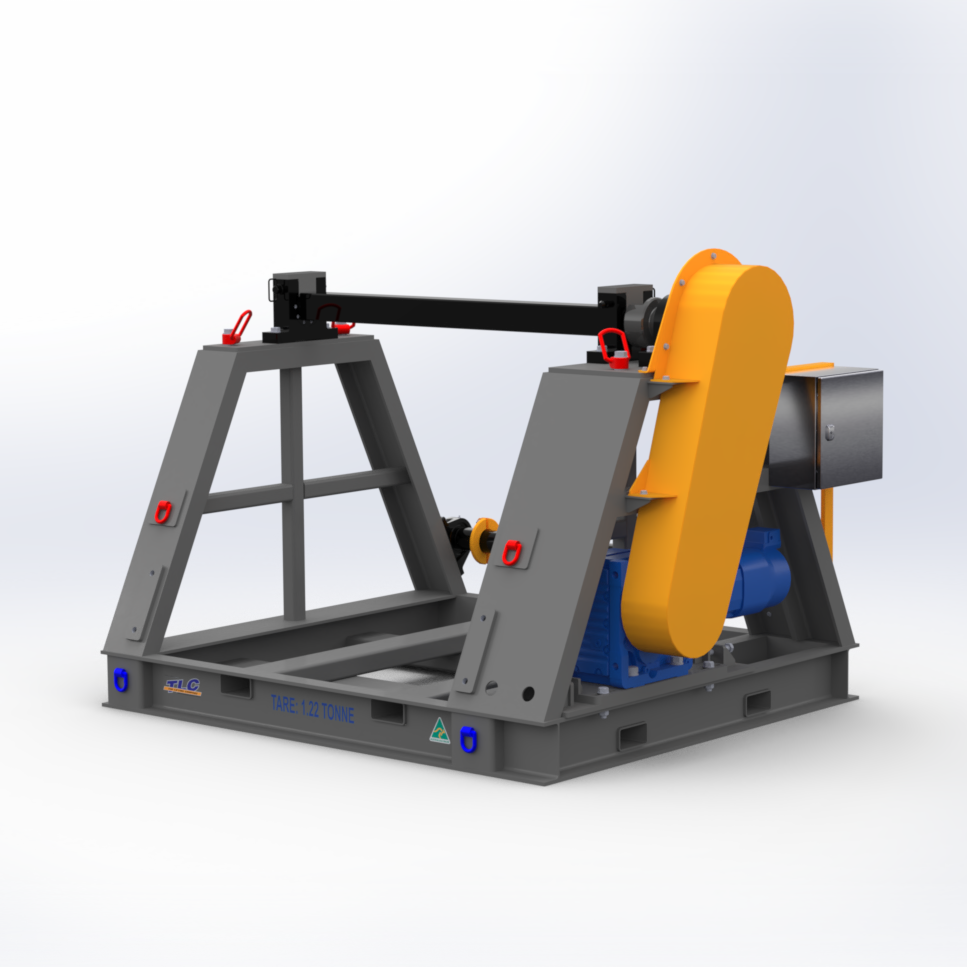

4T Fixed Shop Belt Winder

4T Fixed Shop Belt Winder

4T Fixed Shop Belt Winder

4T Fixed Shop Belt Winder

No review yet. Write Review

$0.00

Description

Request SWI

SPECIFICATIONS:

100mm Square Shafts
Deflection rollers, max 30⁰ Incline
Quick Shaft Coupling with Replaceable High Load Bearings
Maximum Reel Diameter 2000 mm
Belt Widths 1200 mm
Right Angle Bevel / Planetary Drive
4kW Electric Motor with IP66 Fail Safe Disc Brake
Variable Speed Control 0-4.6 Rpm
ABB 180 Series Variable Speed Drive
316 Grade Stainless Steel IP65 Enclosure with Sunshade
10m Cabled Pendant with Speed Pot
32 Amp 4 Pin Plug with 10m Cable
Fork Pockets, Crane Lifting and Lashing Lugs

DIMENSIONS:

2000mm x 1800mm x 1650mm

WEIGHT:

1,220 KG

STANDARDS / REFERENCES:

AS/NZS 3000:2018 Wiring Rules
AS/NZS 3008:2017 Electrical Installations – Selection of cables
AS 4100:2020 Steel Structures
AS 4991:2004 Lifting Devices
AS/NZS 4024.1601:2006 Safety of Machinery – Guarding

TLC 02108
