Zen M Series The Zen range of castors are designed with earthy, warm tones to complement timber furniture.
Zen castors are based on our K Series and M Series castors, decoratively finished in a ‘storm front’ powder coat—a warm, dark grey with a tiny hint of olive, complemented with charcoal pedals and seals, and Chicago screw axles. The wheels come with thread guards in a titanium coloured pearlescent pigment, for that high
lustre sophistication.

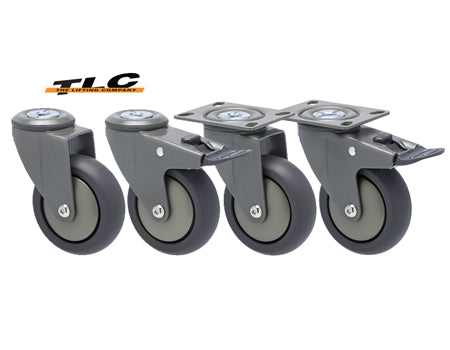

The 100 mm M Series castors shown below are stocked and available for next day delivery. The M Series version can also be made to order in 75 mm and 125 mm sizes subject to a minimum order quantity of 200 pieces.
| Load rating: | 85 kg |
| Wheels: | Thermoplastic elastomer |
| Forks: | Powder coated in ‘storm front’ finish, in swivel plate, bolt hole and total brake configurations |
| Warranty: | Three years |
|
Mount dimensions: |
|
Castor options
MJQ wheel
Max load: 85 kg
Material: Thermoplastic elastomer
Bearing: Precision ball bearing
Thread guard: Yes
Titanium colourway
| Order code: | MJQ100GTM |
| Diameter: | 100 mm |
| Tread: | 32 mm |
| Hub: | 40 mm |
| Bore: | 8 mm |
| Enquiry Now | |
Titanium castors
Swivel plate
| Order code: | MJQ100G/MPPTM |
| Max load: | 85 kg |
| Mount height: | 104 mm |
| Turning radius: | 91 mm |
| Enquiry Now | |
Swivel plate and total brake
| Order code: | MJQ100G/MPPTBTM |
| Max load: | 85 kg |
| Mount height: | 104 mm |
| Turning radius: | 128 mm |
| Enquiry Now | |
Bolt hole
| Order code: | MJQ100G/MPHTM |
| Max load: | 85 kg |
| Mount height: | 104 mm |
| Turning radius: | 91 mm |
| Enquiry Now | |
Bolt hole and total brake
| Order code: | MJQ100G/MPHTBTM |
| Max load: | 85 kg |
| Mount height: | 104 mm |
| Turning radius: | 128 mm |
| Enquiry Now | |
