Zen K Series
Zen K Series
The Zen range of castors are designed with earthy, warm tones to complement timber furniture.
Zen castors are based on our K Series and M Series castors, decoratively finished in a ‘storm front’ powder coat—a warm, dark grey with a tiny hint of olive, complemented with charcoal pedals and seals, and Chicago screw axles. The wheels come with thread guards in a titanium coloured pearlescent pigment, for that high
lustre sophistication.

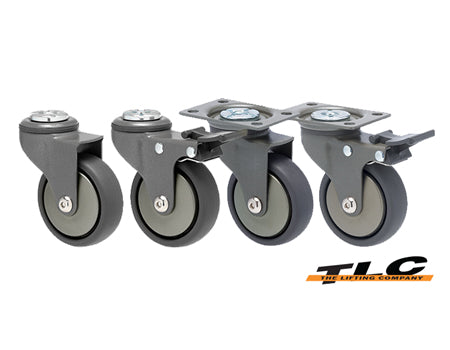

The 75 mm K Series castors shown below are stocked and available for next day delivery. The K Series version can also be made to order in 65 mm and 100 mm sizes subject to a minimum order quantity of 200 pieces.
| Load rating: | 45–50 kg |
| Wheels: | Thermoplastic elastomer, transparent grey PVC |
| Forks: | Powder coated in an anodic natural matt finish, in swivel plate, bolt hole and total brake configurations |
| Warranty: | Three years |
|
Mount dimensions: |
|
Castor options
KJQ wheel
Max load: 50 kg
Material: Thermoplastic elastomer
Bearing: Precision ball bearing
Thread guard: Yes
Titanium colourway
| Order code: | KJQ75GTM |
| Diameter: | 75 mm |
| Tread: | 23 mm |
| Hub: | 30 mm |
| Bore: | 8 mm |
| Enquiry Now | |
Titanium castors
Swivel plate
| Order code: | KJQ75G/KPPTM |
| Max load: | 50 kg |
| Mount height: | 104 mm |
| Turning radius: | 69 mm |
| Enquiry Now | |
Swivel plate and total brake
| Order code: | KJQ75G/KPPTBTM |
| Max load: | 50 kg |
| Mount height: | 104 mm |
| Turning radius: | 89 mm |
| Enquiry Now | |
Bolt hole
| Order code: | KJQ75G/KPHTM |
| Max load: | 50 kg |
| Mount height: | 104 mm |
| Turning radius: | 69 mm |
| Enquiry Now | |
Bolt hole and total brake
| Order code: | KJQ75G/KPHTBTM |
| Max load: | 50 kg |
| Mount height: | 104 mm |
| Turning radius: | 89 mm |
| Enquiry Now | |
