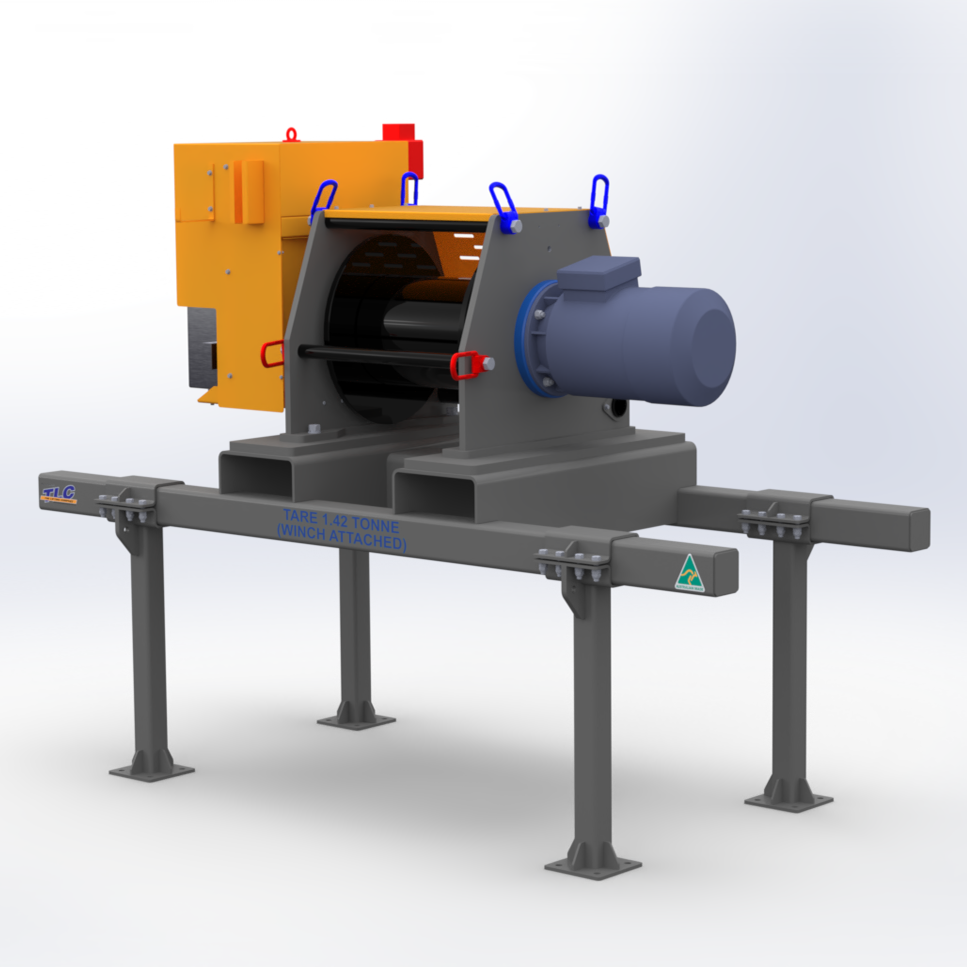

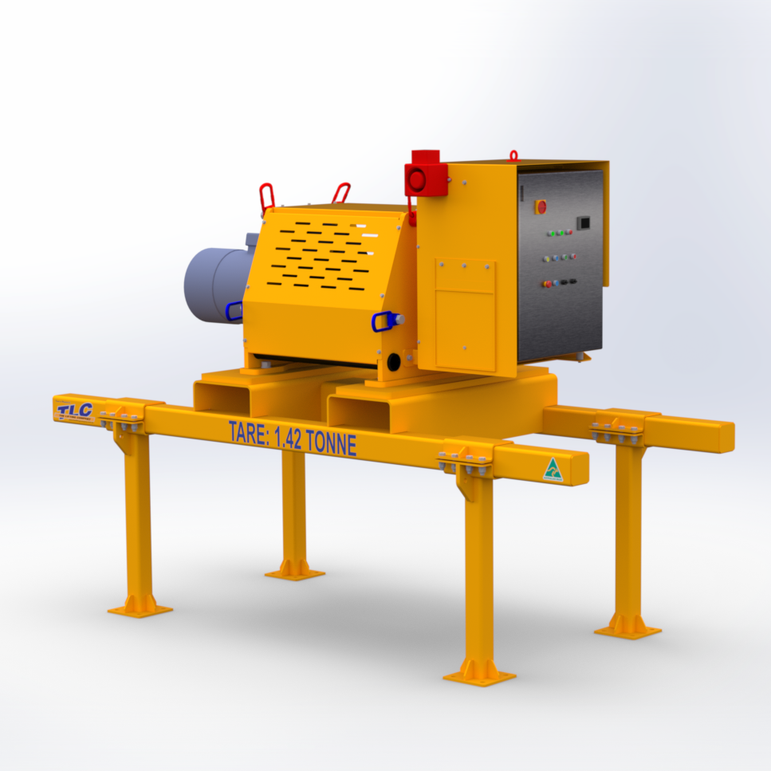

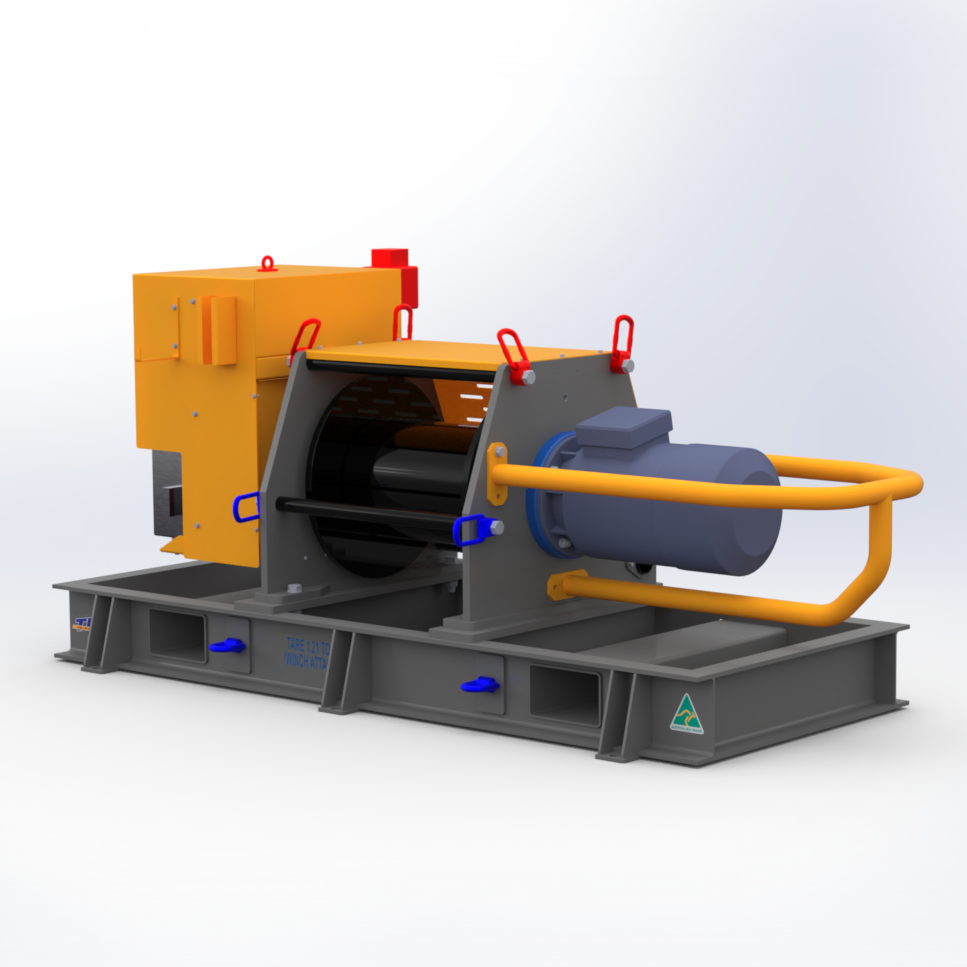

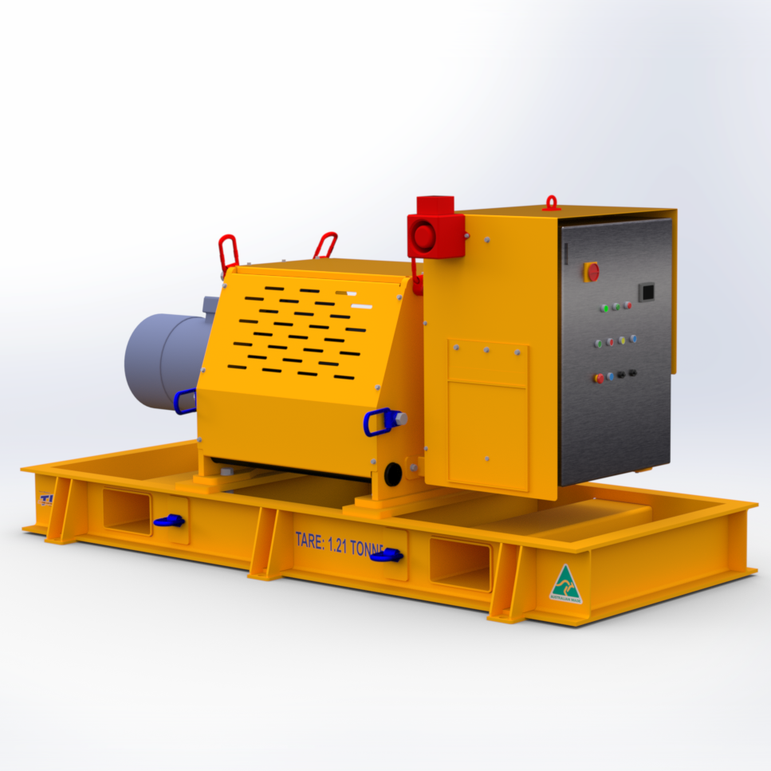

5T Ground/System Winch

5T Ground/System Winch

5T Ground/System Winch

5T Ground/System Winch

No review yet. Write Review

$0.00

Description

Request SWI

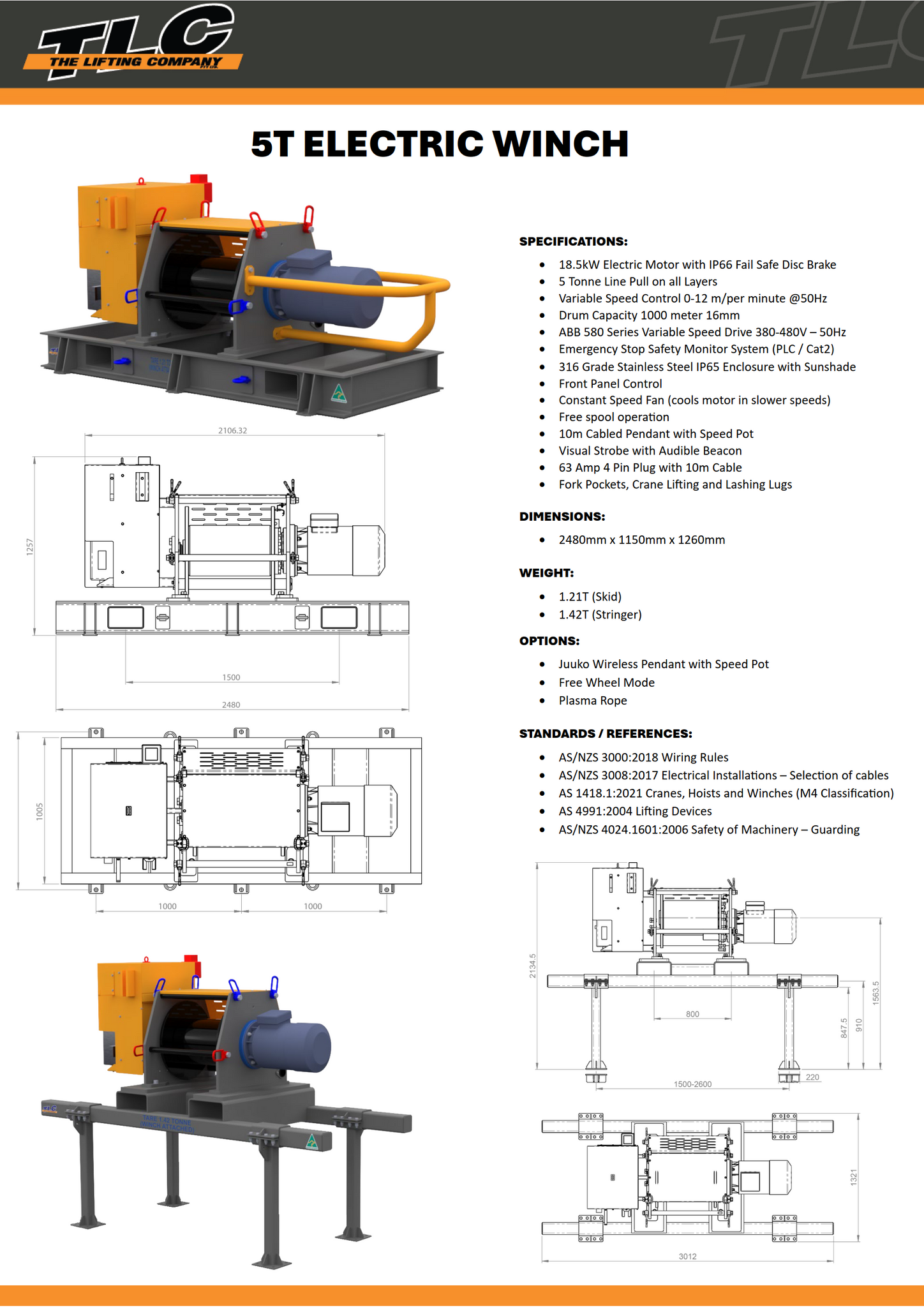

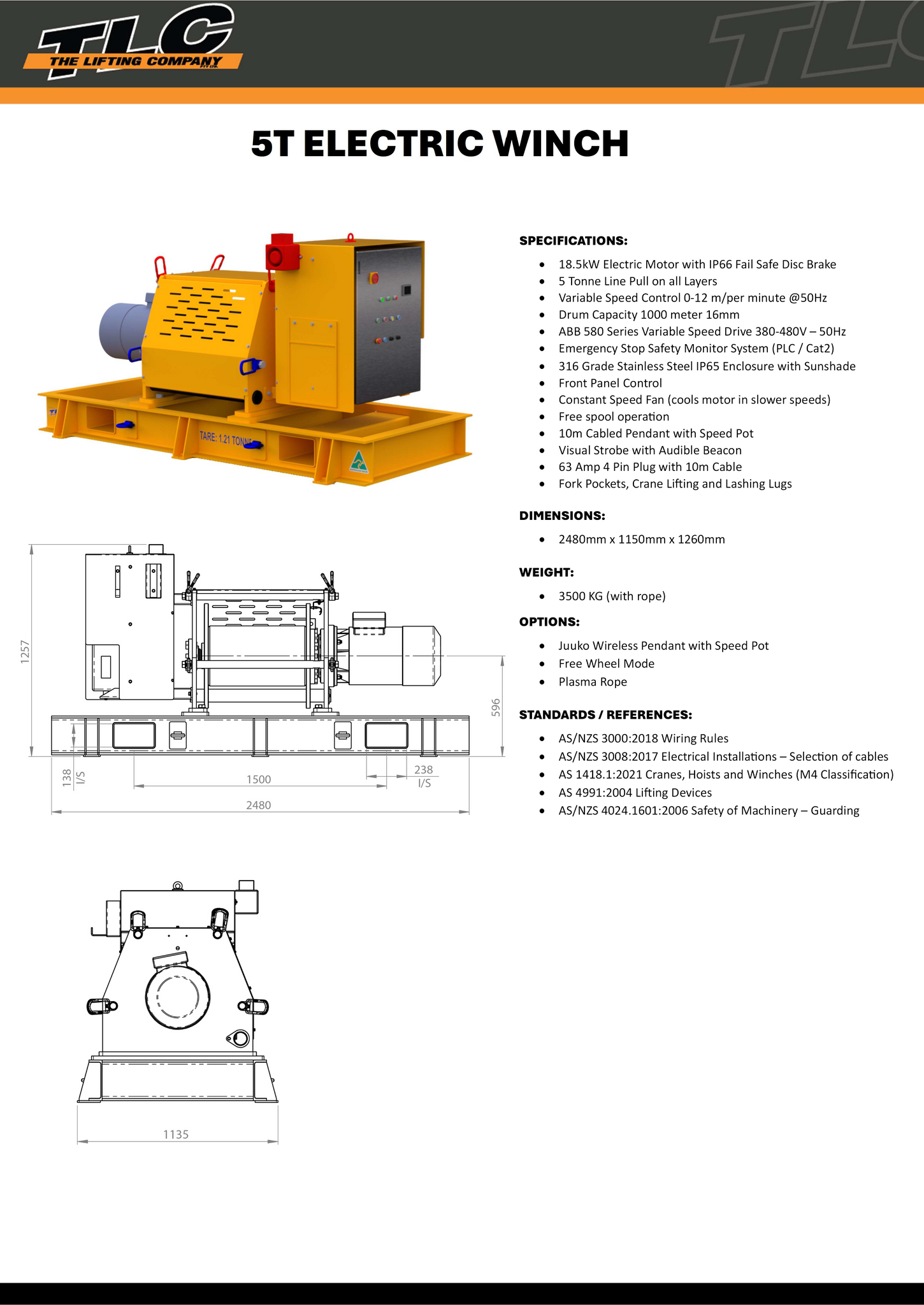

SPECIFICATIONS:

18.5kW Electric Motor with IP66 Fail Safe Disc Brake
5 Tonne Line Pull on all Layers
Variable Speed Control 0-12 m/per minute @50Hz
Drum Capacity 1000 meter 16mm
ABB 580 Series Variable Speed Drive 380-480V – 50Hz
Emergency Stop Safety Monitor System (PLC / Cat2)
316 Grade Stainless Steel IP65 Enclosure with Sunshade
Front Panel Control
Constant Speed Fan (cools motor in slower speeds)
Free spool operation
10m Cabled Pendant with Speed Pot
Visual Strobe with Audible Beacon
63 Amp 4 Pin Plug with 10m Cable
Fork Pockets, Crane Lifting and Lashing Lugs

DIMENSIONS:

2480mm x 1150mm x 1260mm

WEIGHT:

3500 KG (with rope)

OPTIONS:

Juuko Wireless Pendant with Speed Pot
Free Wheel Mode
Plasma Rope

STANDARDS / REFERENCES:

AS/NZS 3000:2018 Wiring Rules
AS/NZS 3008:2017 Electrical Installations – Selection of cables
AS 1418.1:2021 Cranes, Hoists and Winches (M4 Classification)
AS 4991:2004 Lifting Devices
AS/NZS 4024.1601:2006 Safety of Machinery – Guarding

TLC 01447
