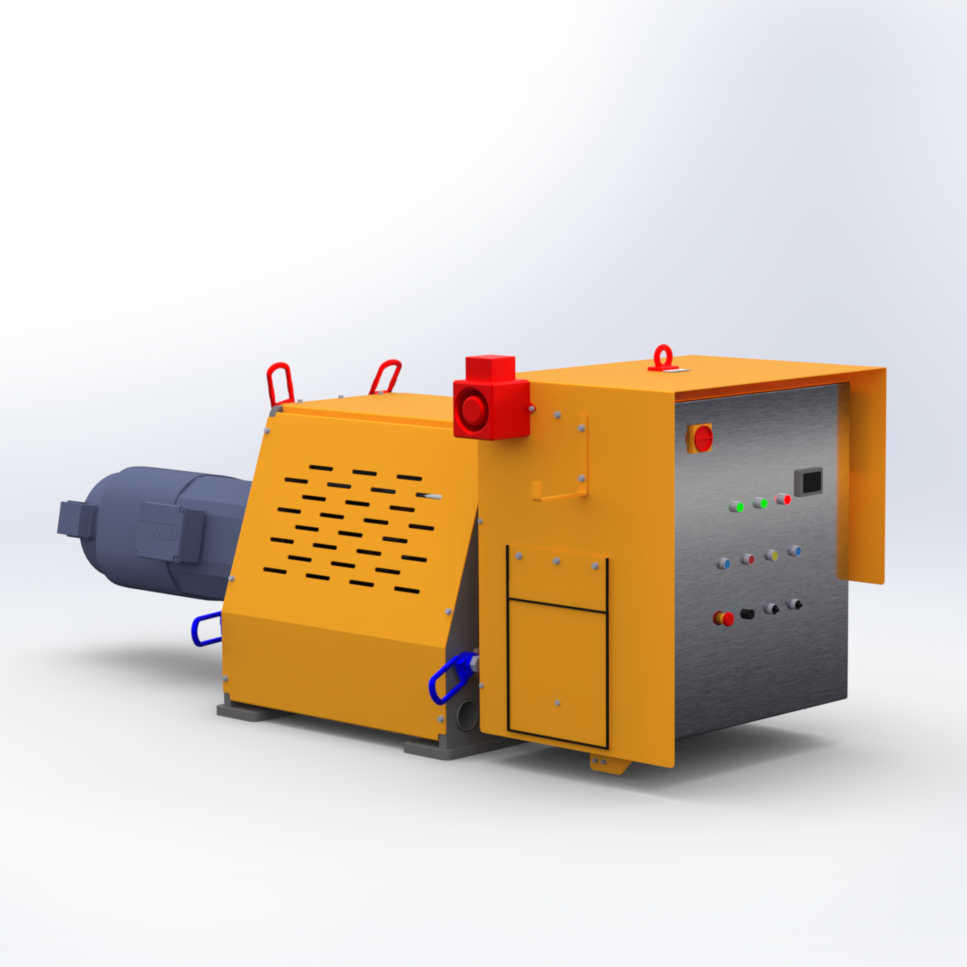

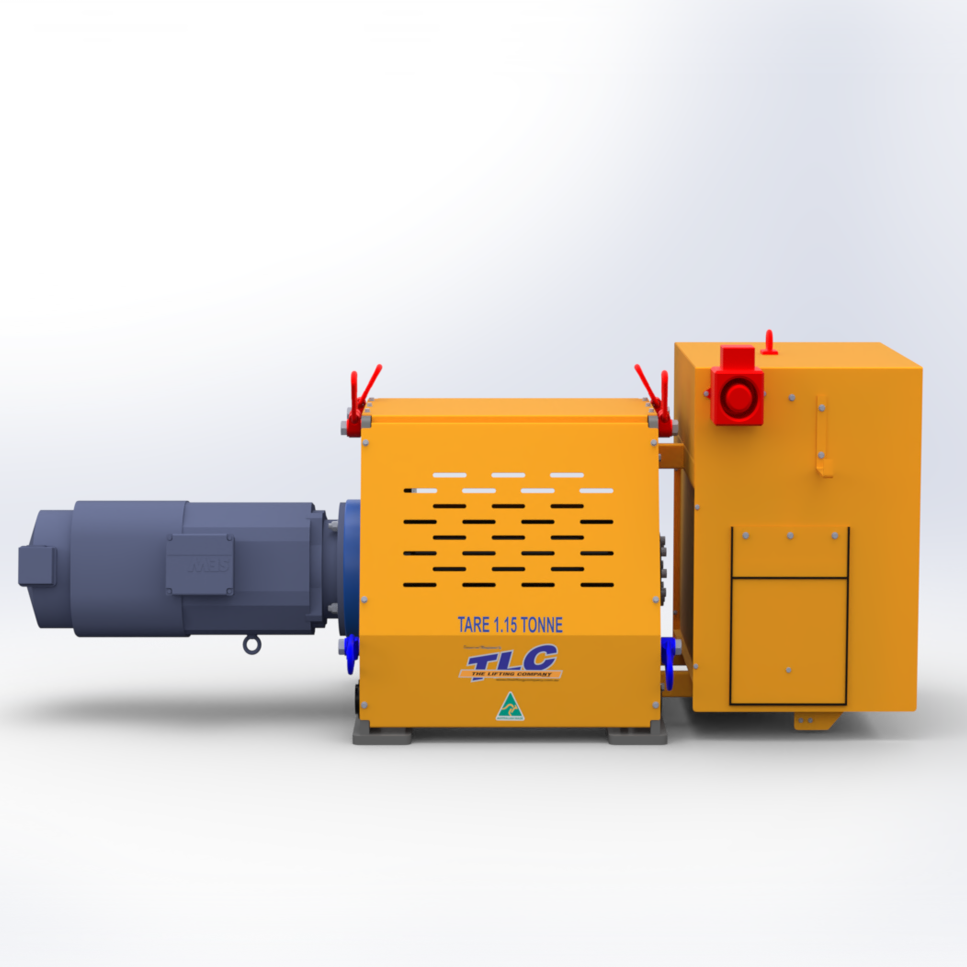

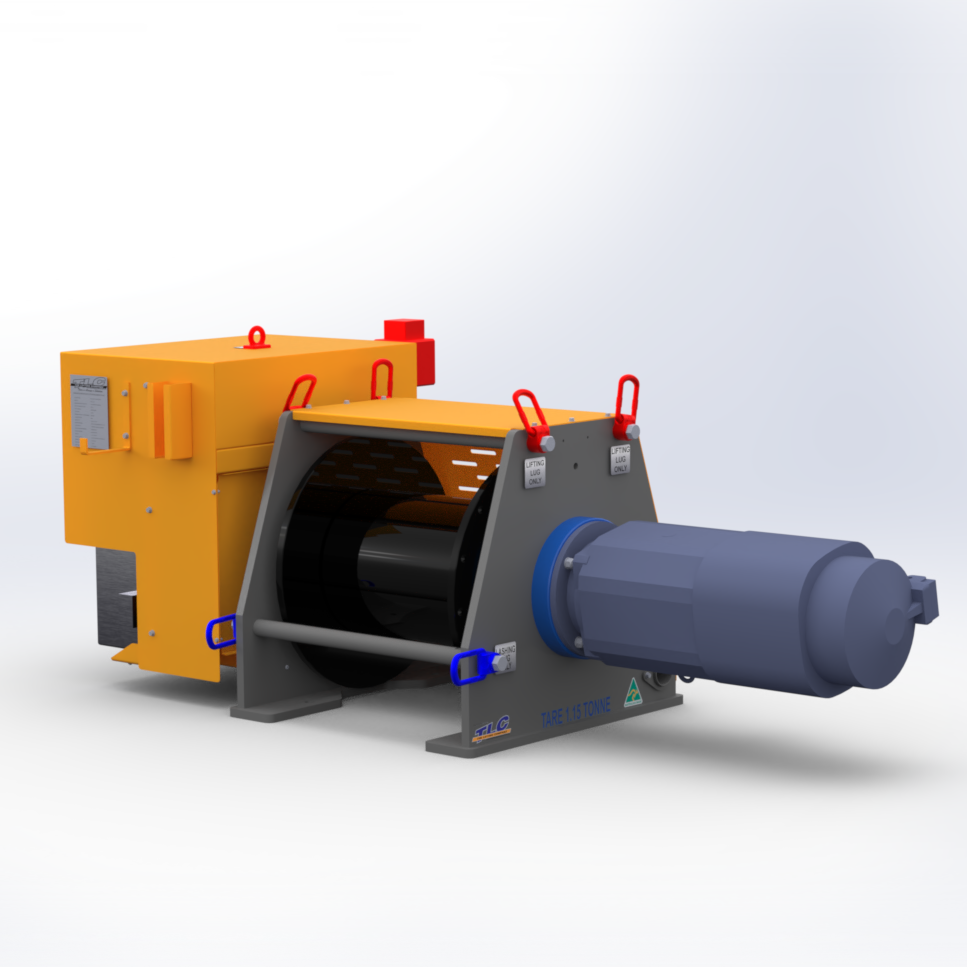

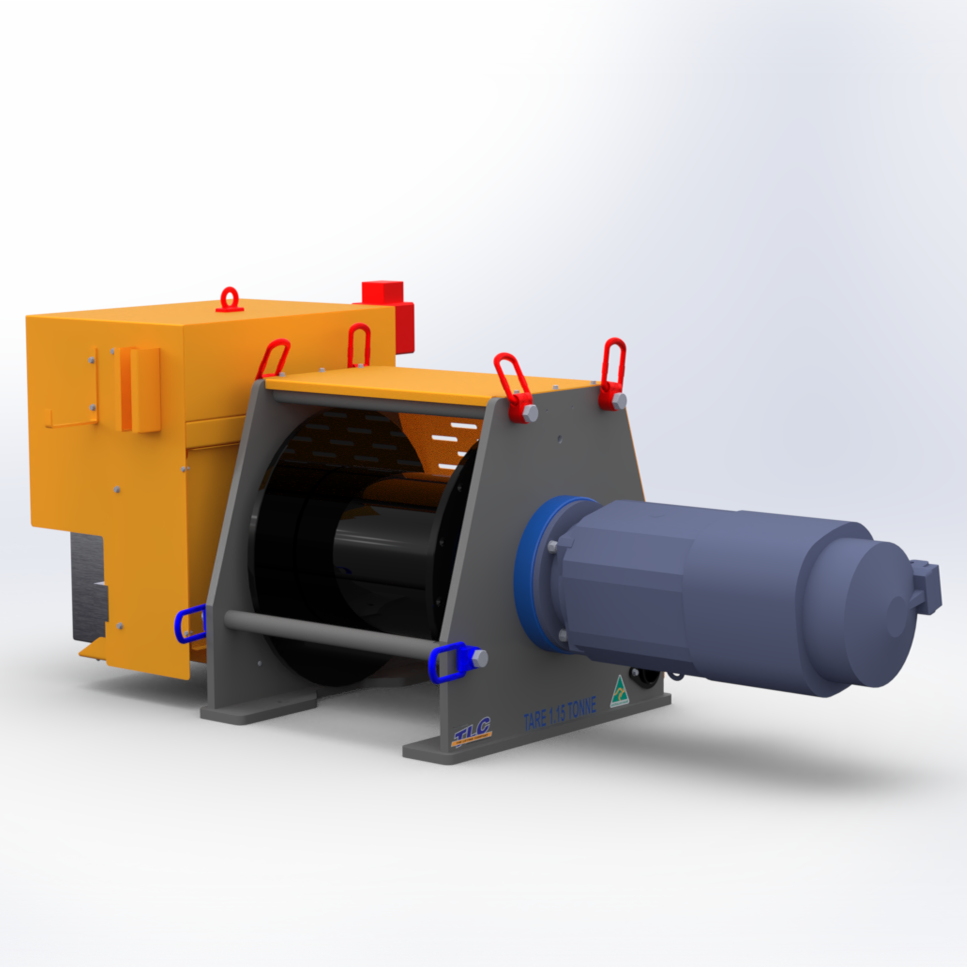

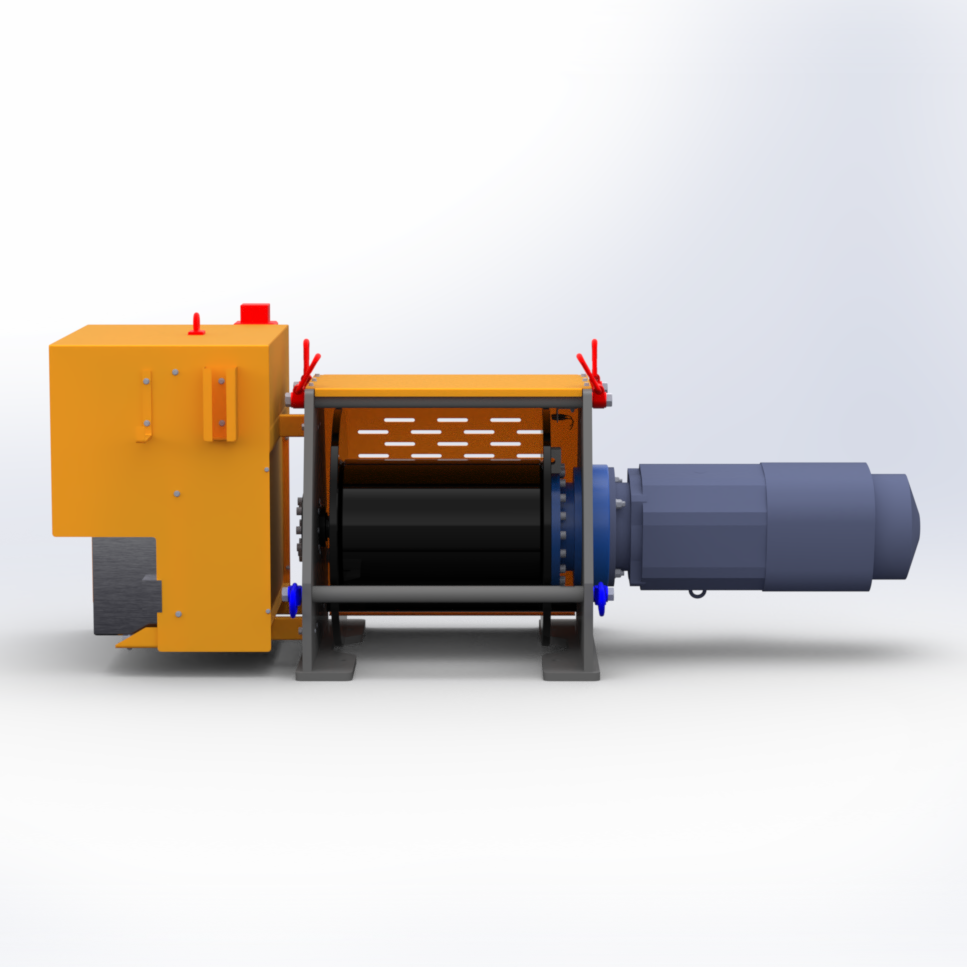

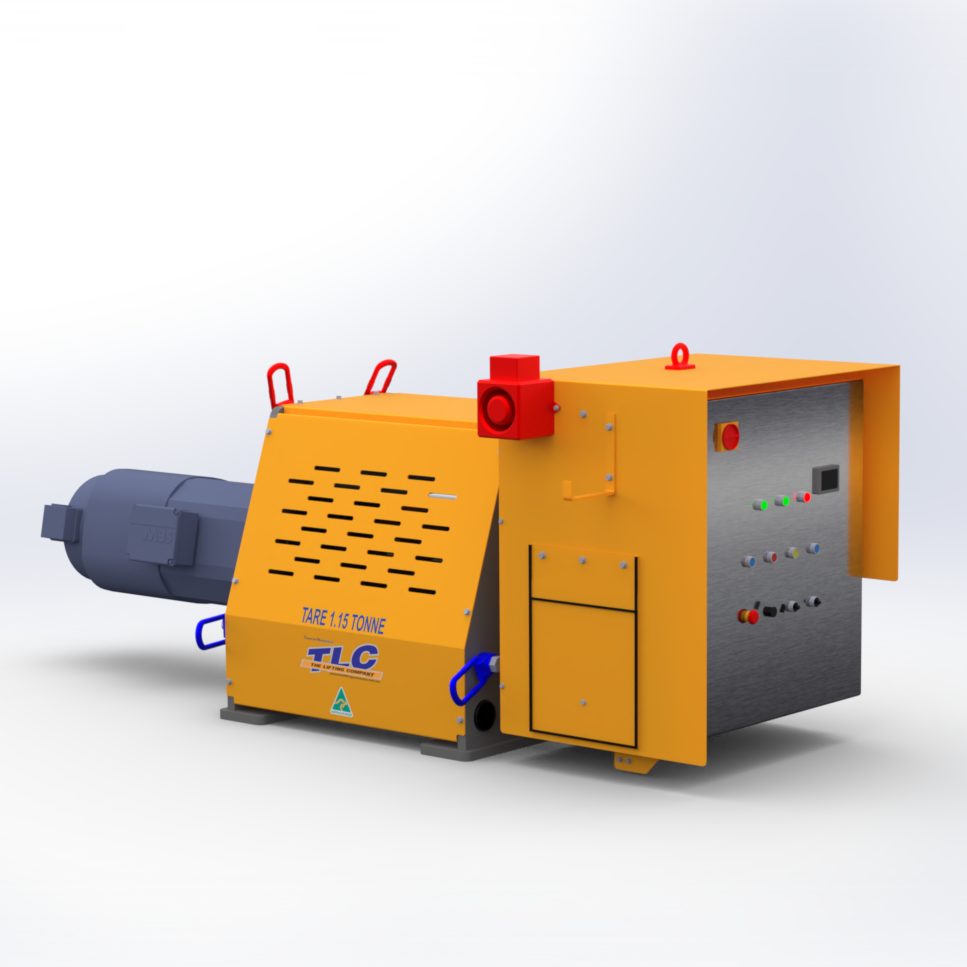

2.2T Foot Mounted Winch

2.2T Foot Mounted Winch

2.2T Foot Mounted Winch

2.2T Foot Mounted Winch

No review yet. Write Review

$0.00

Description

Request SWI

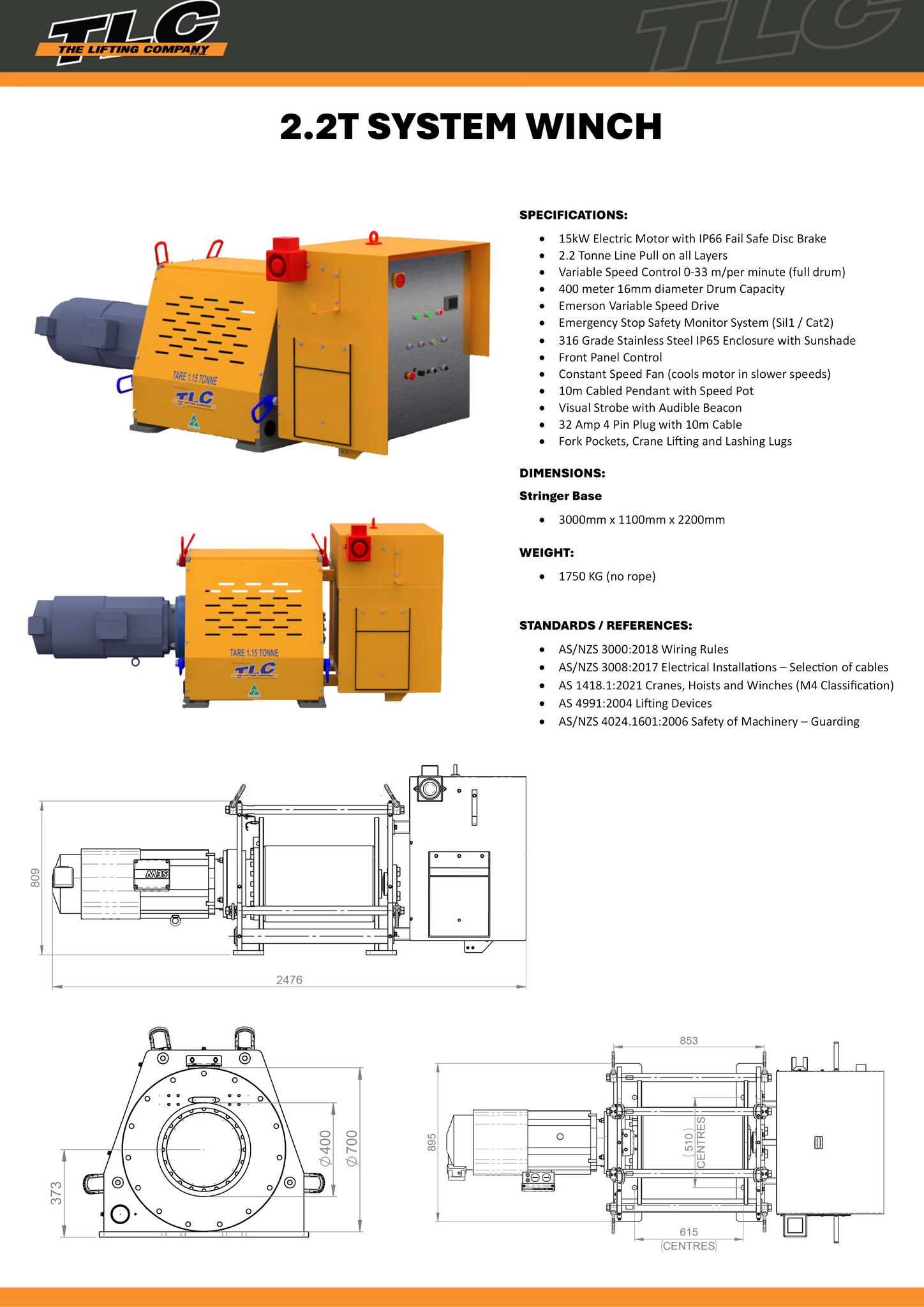

SPECIFICATIONS:

15kW Electric Motor with IP66 Fail Safe Disc Brake
2.2 Tonne Line Pull on all Layers
Variable Speed Control 0-33 m/per minute (full drum)
400 meter 16mm diameter Drum Capacity
Emerson Variable Speed Drive
Emergency Stop Safety Monitor System (Sil1 / Cat2)
316 Grade Stainless Steel IP65 Enclosure with Sunshade
Front Panel Control
Constant Speed Fan (cools motor in slower speeds)
10m Cabled Pendant with Speed Pot
Visual Strobe with Audible Beacon
32 Amp 4 Pin Plug with 10m Cable
Fork Pockets, Crane Lifting and Lashing Lugs

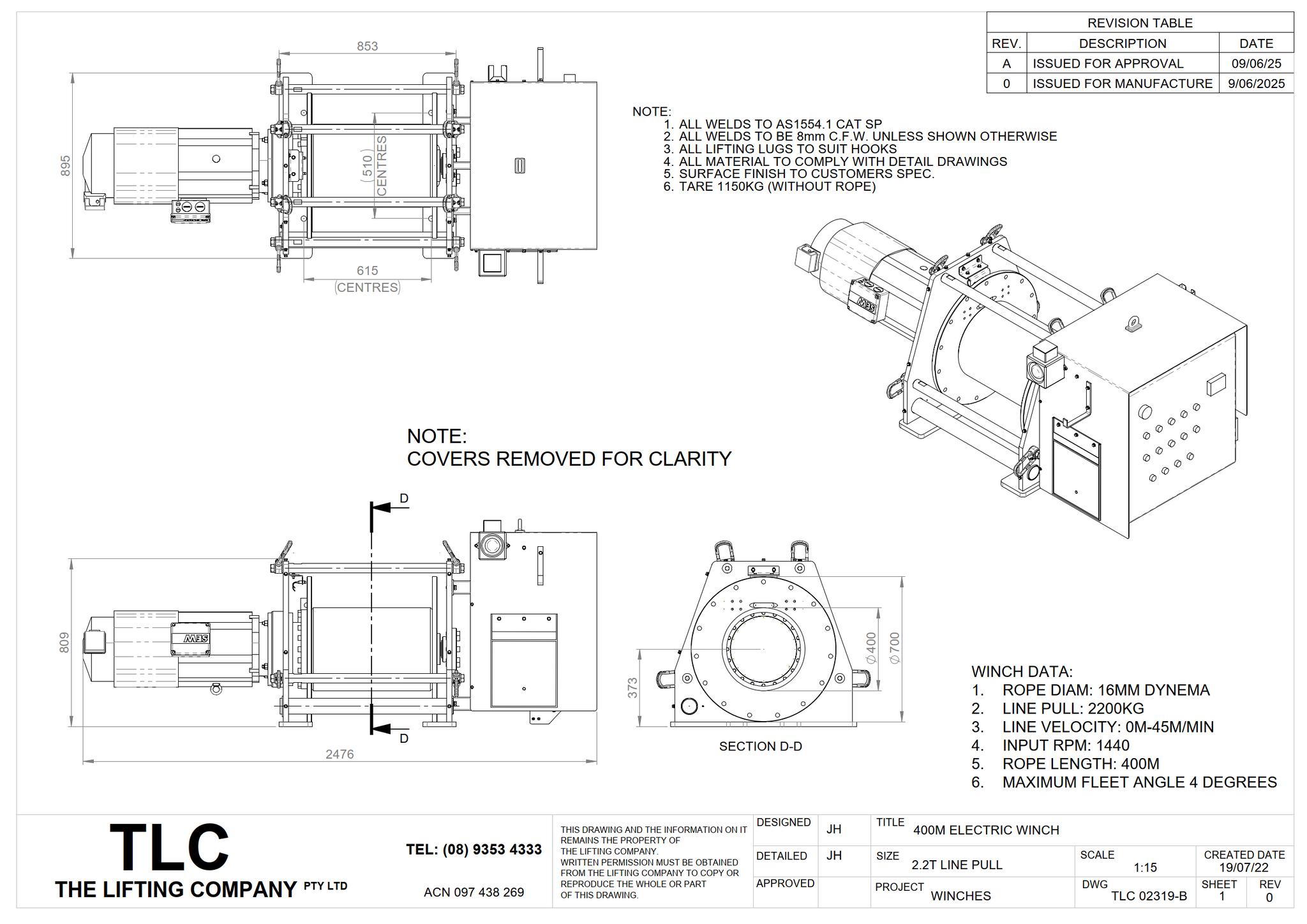

DIMENSIONS:

Stringer Base

3000mm x 1100mm x 2200mm

WEIGHT:

1750 KG (no rope)

STANDARDS / REFERENCES:

AS/NZS 3000:2018 Wiring Rules
AS/NZS 3008:2017 Electrical Installations – Selection of cables
AS 1418.1:2021 Cranes, Hoists and Winches (M4 Classification)
AS 4991:2004 Lifting Devices
AS/NZS 4024.1601:2006 Safety of Machinery – Guarding

TLC 02319
