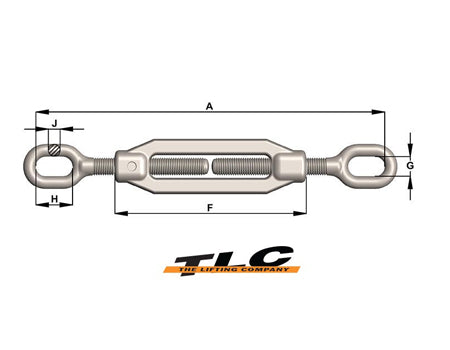

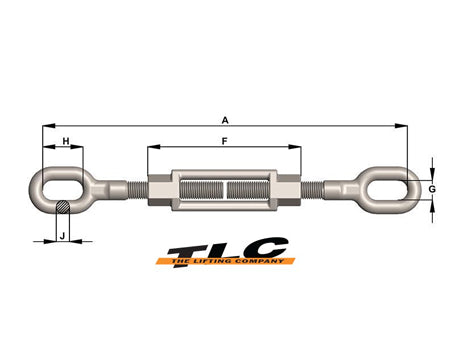

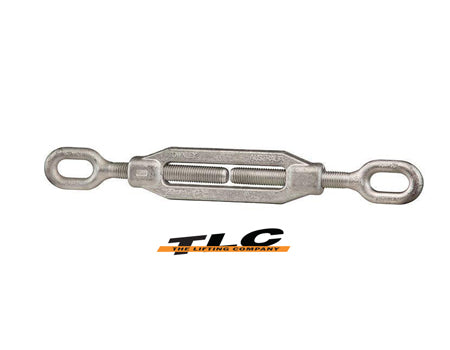

Eye & Eye Turnbuckles

Eye & Eye Turnbuckles

Eye & Eye Turnbuckles

Eye & Eye Turnbuckles

No review yet. Write Review

$0.00

Description

AS2319 – 2001
6:1 Safety Factor
Grades L, P & S
Tested and Certified
Galvanized
Manufactured using only heat certified Australian Steel (AS1442/AS1444)

Available on Request:

Lock Nuts


Grade L	0.3	M10	230	335	150	11	21	7	0.35	TBEEL10
Grade L	0.5	M12	330	470	190.5	15	30	9	0.67	TBEEL12
Grade L	0.75	M16	350	485	204	17	36	12	1.5	TBEEL16
Grade L	1.25	M20	385	515	216.5	21	42	14	2.16	TBEEL20
Grade L	2.5	M24	440	570	232	25	51	17	3.5	TBEEL24
Grade L	5	M33	656	806	252	33	70	24	6.5	TBEEL33
Grade L	5	1.25	570	720	255	33	67	22	6.33	TBEEL1250
Grade L	6	1.5	600	740	275	38	72	25	8.85	TBEEL1500
Grade P	0.6	M10	230	335	150	11	21	7	0.35	TBEE10P
Grade P	1	M12	330	470	190.5	15	30	9	0.67	TBEE12P
Grade P	1.6	M16	350	485	204	17	36	12	1.5	TBEE16P
Grade P	2.5	M20	385	515	216.5	21	42	14	2.16	TBEE20P
Grade P	4	M24	440	570	232	25	51	17	3.5	TBEE24P
Grade P	8	M33	656	806	252	33	70	24	6.5	TBEE33P
Grade S	0.8	M10	230	335	150	11	21	7	0.35	TBEE10S
Grade S	1.2	M12	330	470	190.5	15	30	9	0.67	TBEE12S
Grade S	2	M16	350	485	204	17	36	12	1.5	TBEE16S
Grade S	3.2	M20	385	515	216.5	21	42	14	2.16	TBEE20S
Grade S	5	M24	440	570	232	25	51	17	3.5	TBEE24S
Grade S	10	M33	656	806	252	33	70	24	6.5	TBEE33S

Related Documents

Back to Turnbuckles / Rigging Screws
