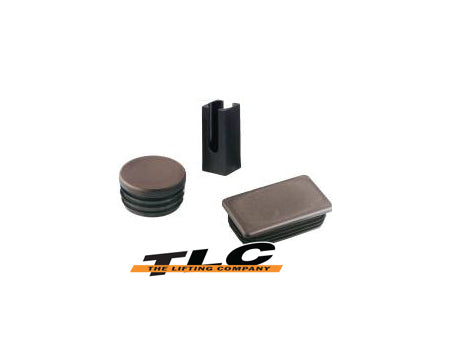

Square
| Square threaded | Part number | Tube outer size x wall thickness (mm) |
Application | Shank length a (mm) | Head thickness b (mm) | Thread size c (mm) | Thread stop (mm) | Max static load (mm) | Housing profile | Material | Thread material |
|---|---|---|---|---|---|---|---|---|---|---|---|
| SETi-5858 | 20 x 20 x 1.6 | foot or castor | 36.0 | 5.0 | M8 | 38.0 | 300 | G | nylon | mild steel ZP | |
| SETi-5801 | 20 x 25 x 1.6 | foot or castor | 36.0 | 5.0 | M10 | 38.0 | 300 | G | nylon | mild steel ZP | |
| SETi-5802 | 25 x 25 x 1.6 | foot or castor | 36.0 | 5.0 | M12 | 38.0 | 300 | G | nylon | mild steel ZP | |
| SETi-5811 | 35 x 35 x 1.6 | foot or castor | 36.0 | 5.0 | M10 | 38.0 | 300 | G | nylon | mild steel ZP | |
| SETi-5805 | 38.1 x 38.1 x 1.6 | foot or castor | 36.0 | 5.0 | M10 | 38.0 | 300 | G | nylon | mild steel ZP | |
| SETi-5813 | 38.1 x 38.1 x 1.6 | foot or castor | 36.0 | 5.0 | M10 | 38.0 | 300 | G | nylon | stainless steel | |
| SETi-5795 | 50 x 50 x 1.6 | foot or castor | 36.0 | 5.0 | M10 | 38.0 | 300 | G | nylon | mild steel ZP |
