Control systems
Works with existing hospital bed control
systems
The Trinity EBC can be operated via the Fallshaw standalone control system or supplied with cables to fully integrate with TiMOTION bed controls or with complete control solutions available from leading bed system manufacturers including LINAK and DEWERT. We can also work with original equipment manufacturers to integrate Trinity EBC with custom control systems if required, ensuring that it will be an integrated part of equipment controls with all castor functions integrated into the system logic and control panel of the equipment.

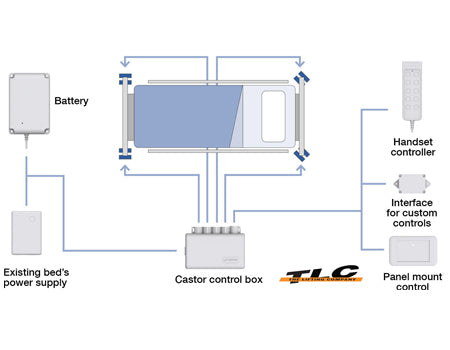

Retrofittable Fallshaw Control System
A retrofittable control system can also be provided. This control system is modular and can either be a standalone solution or may be paired with a central control system if already utilised to control other features of the mobile device (such as linear actuators etc.). In this case, the EBC control system plugs directly into the central controller to draw power (replacing the Y cable, battery and power supply components). Please consult your Fallshaw representative for more details.
| Product code | ||
|---|---|---|
|
EBC Controller If a control system is already utilised to control other features of the mobile device (such as linear actuators etc.), then it may be possible to use the existing power supply for the Controller and prevent the need for Y cable, battery and power supply components. Please consult your Fallshaw representative for more details. |
EBCCONTROLI (Intuitive) EBCCONTROLU (User-specified) |
|
| EBC Battery | EBCBATTERY1 | |
| EBC Power supply |
EBCPOWERAU (Australian) EBCPOWEREU (European) EBCPOWERUK (United Kingdom) EBCPOWERUS (United States) |
|
| EBC Handset |
EBCHANDSETU5 (User-specified, 5 buttons) EBCHANDSETI1 (Intuitive, 1 button) EBCHANDSETI6 (Intuitive, 6 buttons) |
|
| EBC Control panel | EBCPANELI1 | |
| EBC Interface box | EBCINTERFACE | |
| EBC Y Cable | EBCCABLEY | |
|
EBC Cable set Set of four cables (1.5 m). Different lengths available on request. |
EBCCABLESET1.5 |
EBC sets
Trinity EBC can be ordered as a set. Each set includes:
- One motion sensing and conductive castor
- Three standard castors
Steering options
A Trinity EBC set can be orderd either with intuitive steering or user specified steering. Intuitive steering analyses and predicts the pattern of movement and engages the steering device, whereas user specified steering is engaged or disengaged by the steering device.
