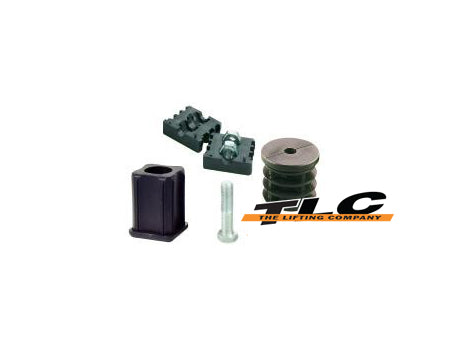

Tube ends – Square

Tube ends – Square

Tube ends – Square

Tube ends – Square

No review yet. Write Review

$0.00

Description

Square threaded	Part number	Tube outer size x wall thickness (mm)	Application	Shank length a (mm)	Head thickness b (mm)	Thread size c (mm)	Thread stop (mm)	Max static load (mm)	Housing profile	Material	Thread material
	SETi-5858	20 x 20 x 1.6	foot or castor	36.0	5.0	M8	38.0	300	G	nylon	mild steel ZP
	SETi-5801	20 x 25 x 1.6	foot or castor	36.0	5.0	M10	38.0	300	G	nylon	mild steel ZP
	SETi-5802	25 x 25 x 1.6	foot or castor	36.0	5.0	M12	38.0	300	G	nylon	mild steel ZP
	SETi-5811	35 x 35 x 1.6	foot or castor	36.0	5.0	M10	38.0	300	G	nylon	mild steel ZP
	SETi-5805	38.1 x 38.1 x 1.6	foot or castor	36.0	5.0	M10	38.0	300	G	nylon	mild steel ZP
	SETi-5813	38.1 x 38.1 x 1.6	foot or castor	36.0	5.0	M10	38.0	300	G	nylon	stainless steel
	SETi-5795	50 x 50 x 1.6	foot or castor	36.0	5.0	M10	38.0	300	G	nylon	mild steel ZP

Back to Threaded Tube Ends
