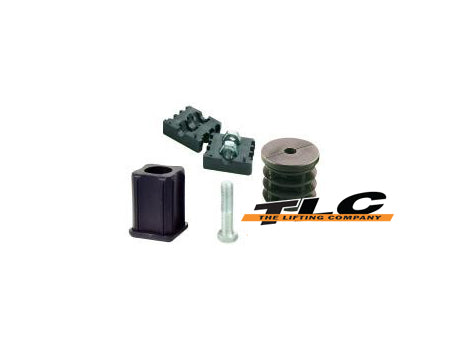

Tube ends – Round

Tube ends – Round

Tube ends – Round

Tube ends – Round

No review yet. Write Review

$0.00

Description

Tube ends	Part number	Tube outer diameter (OD) x Wall thickness (mm)	Application	Thread size c (mm)	Shank length a (mm)	Head thickness b (mm)	Thread stop (mm)	Max static load (mm)	Housing profile	Material	Thread material
Round threaded	RETi-5825	20 x 1.6	foot or castor	M8	36.0	5.0	38.0	300	G	nylon	mild steel ZP
	RETi-5827	22 x 1.6	foot or castor	M8	36.0	5.0	38.0	300	G	nylon	mild steel ZP
	RETi-5826	30 x 1.6	foot or castor	M10	36.0	5.0	38.0	300	G	nylon	mild steel ZP
	RETi-5892	32 x 1.6	foot or castor	M8	35.0	5.0	35.0	300	G	nylon	mild steel ZP
	RETi-5824	35 x 1.6	foot or castor	M10	34.0	5.0	36.0	300	G	nylon	nylon
	RETi-5875	50 x 2.0	foot or castor	M10	32.0	5.0	37.0	300	G	nylon	mild steel ZP
	RETi-5874	50 x 1.6	foot or castor	M12	32.0	5.0	37.0	300	G	nylon	mild steel ZP
	RETi-5838	60 x 2.0	foot or castor	M10	35.0	5.0	33.0	300	G	nylon	mild steel ZP

Round plain (no thread)	Part number	Tube outer diameter (OD) x Wall thickness (mm)	Shank length a (mm)	Head thickness b (mm)	Material
	RTRi-5506	25 x 1 = 3	11.5	5.0	polyethylene (PE)
	RTRi-5509	30 x 0.8 = 2.5	11.5	5.0
	RTRi-5508	30 x 0.8 = 2.5	11.5	5.0
	RTRi-5578	33.7 x 2.6 = 4	15.0	5.5
	RTRi-5507	38 x 1 = 2	11.5	5.0
	RTRi-5580	42.4 x 2.6 = 4	17.5	7.5
	RTRi-5582	48.3 x 3.2 = 5	19.0	8.0
	RTRi-5515	50 x 1 = 2.5	11.5	5.0
	RTRi-5516	50.8 x 1 = 2	11.5	5.0
	RTRi-5584	60.3 x 3.2 = 5	20.5	10.0
	RTRi-5586	76.1 x 3.2 = 5	22.0	13.0

Tube sliders

Telescopic tube slider accessories

Part number for 1 kit (includes 2 pieces)

Function

Material

Retail pack Qty

SPTUBE50-40

1 kit to telescope 40 x 40 x 2 SHS inside 50 x 50 x 2 SHS

nylon

20

Back to Threaded Tube Ends
